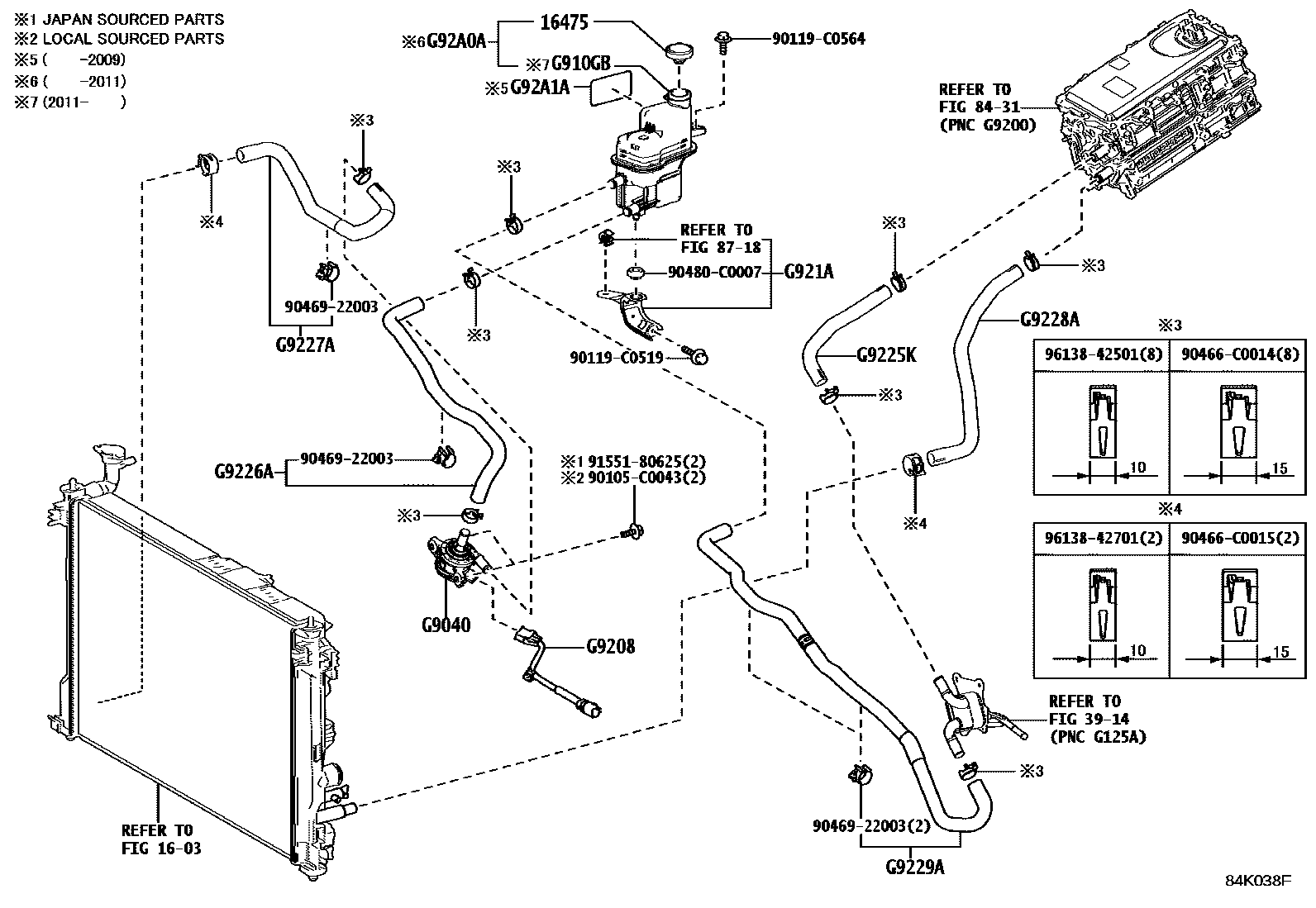

INVERTER COOLING
1603
16475CAP, RESERVE TANK
LOCAL SOURCED PARTS
JAPAN SOURCED PARTS
3914
8431
8718
G9040INVERTER WATER PUMP ASSY(W/MOTOR)
LOCAL SOURCED PARTS
(L)
JAPAN SOURCED PARTS
(L)
G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP
G9208WIRE SUB-ASSY, INVERTER
G921ABRACKET, INVERTER RESERVE TANK, NO.1
G9225KHOSE, INVERTER COOLING, NO.1
G9226AHOSE, INVERTER COOLING, NO.2
G9227AHOSE, INVERTER COOLING, NO.3
G9228AHOSE, INVERTER COOLING, NO.4
G9229AHOSE, INVERTER COOLING, NO.5
G92A0ATANK ASSY, INVERTER RESERVE
G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION
90105C0043
main90105-C0043
90119C0519
main90119-C0519
90119C0564
main90119-C0564
90466C0014
main90466-C0014
90466C0015
main90466-C0015
9046922003
main90469-22003
90480C0007
main90480-C0007
9155180625
main91551-80625
9613842501
main96138-42501
9613842701
main96138-42701
26 parts on this diagram · 2 diagrams in section
