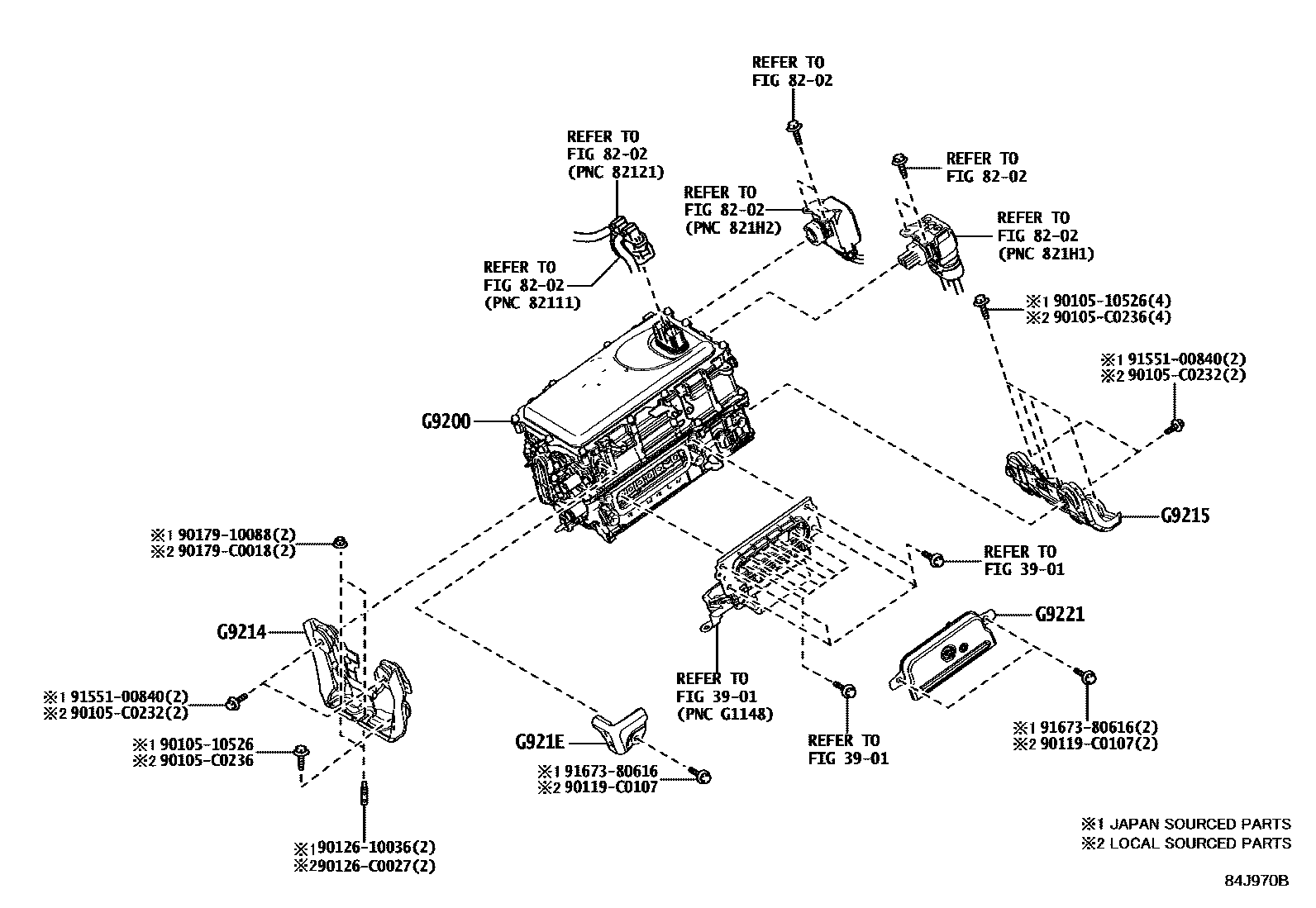

HEV INVERTER

0001 1 0002 1 0003 1

3901

8202

G9200INVERTER ASSY, W/CONVERTER

mainG92A007010iMXXH50202407

mainG92A007020iAXXH52202407

mainG92A033031iAXXH50201903-202107

mainG92A033032iAXXH50..E202107-202202

mainG92A033033iAXXH50202304

G9214BRACKET, INVERTER, NO.1

mainG921407010iAXXH50..B,G,Q202107-202303

LOCAL SOURCED PARTS

mainG92140A010iAXXH52,MXXH50202408

mainG92140A020iAXXH52,MXXH50202407-202408

mainG921433040iAXXH50202304

JAPAN SOURCED PARTS

G9215BRACKET, INVERTER, NO.2

mainG921506060iAXXH52,MXXH50202407

mainG921507010iAXXH50202009-202105

LOCAL SOURCED PARTS

mainG921533040iAXXH50201903-202009

G921EPROTECTOR, INVERTER

mainG921E07010iAXXH50201903-202107

mainG921E07020iAXXH52,MXXH50202407

G9221COVER, INVERTER

mainG902202020iAXXH52,MXXH50202407

(L)

mainG902228030iAXXH52,MXXH50202407

(J)

mainG902247050iAXXH50202304

9010510526

main90105-10526

90105C0232

main90105-C0232

90105C0236

main90105-C0236

90119C0107

main90119-C0107

9012610036

main90126-10036

90126C0027

main90126-C0027

9017910088

main90179-10088

90179C0018

main90179-C0018

9155100840

main91551-00840

9167380616

main91673-80616

17 parts on this diagram · 3 diagrams in section
