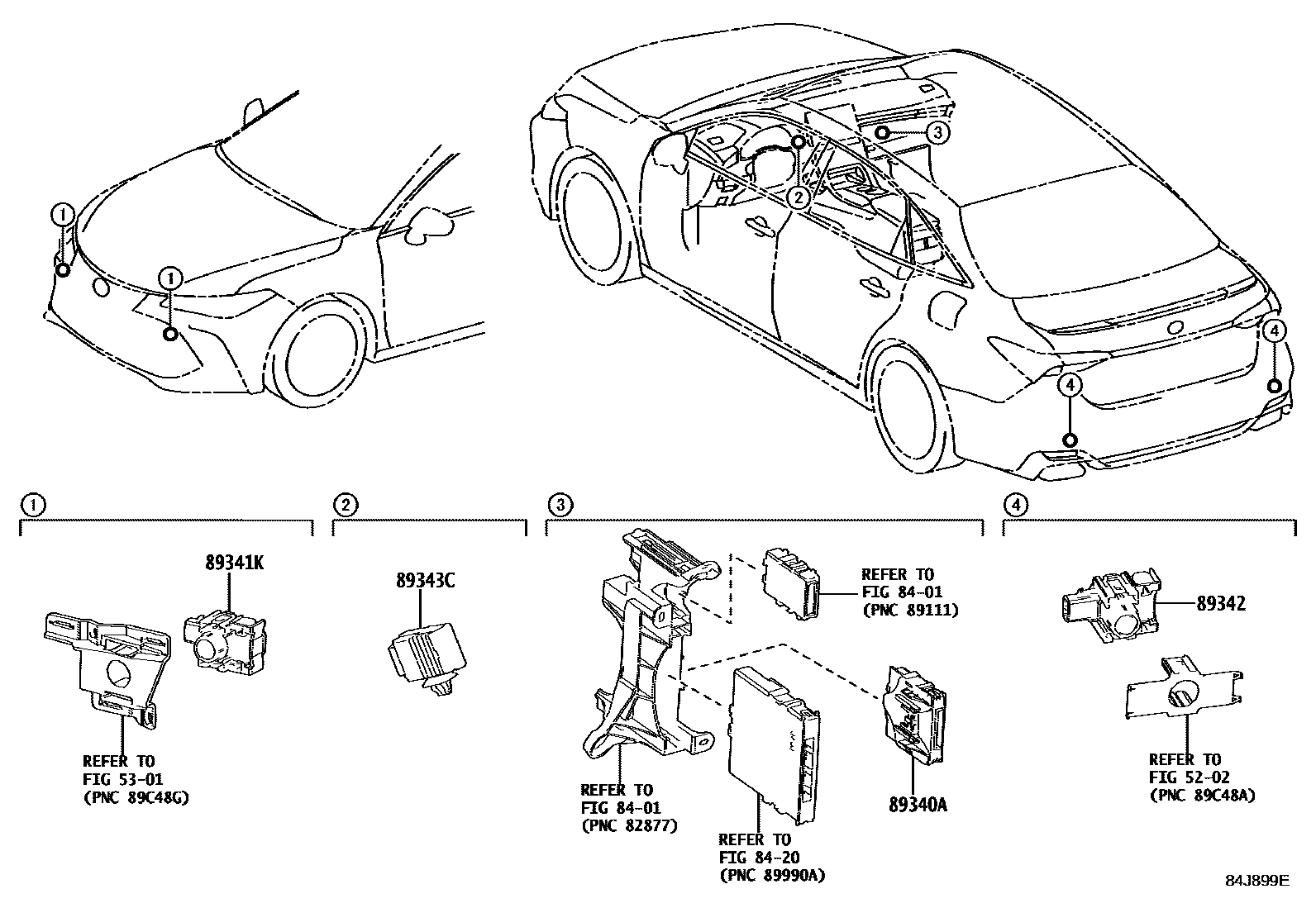

CLEARANCE & BACK SONAR

0001 1 0002 1

5202

5301

8401

8420

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-07030iAXXH50..G,Q201903-202107

main89340-07040iAXXA50,AXXH50,MXXA50..G,Q202203-202303

main89340-07050iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-02050-B4×2iAXXH50..G,Q201903-202107

DK. GRAY

main89341-0R070×2iAXXA50,AXXH50,MXXA50..G,Q202203-202303

main89341-0R100-B9×2iAXXH52202407

GRAY METALLIC

main89341-0R100-C0×2iMXXA50..B;MXXH50..B,G,Q202407

DUMMY-MAT BLACK

main89341-02050-A2×2iAXXA50..G202304

RADIATOR GRILLE-SPORT TYPE(ILA),PLATINUM WHITE PEARL MC.,089

main89341-02050-B3×2iAXXA50..G202304

RADIATOR GRILLE-SPORT TYPE(ILA),METAL STREAM ME,1K0

main89341-02050-C1×2iAXXA50..G202106-202203

S GRADE PACKAGE,BLACK

main89341-02050-C2×2iAXXA50..G202304

RADIATOR GRILLE-SPORT TYPE(ILA),BLACK MC.,209

main89341-02050-D4×2iAXXA50..G202304

RADIATOR GRILLE-SPORT TYPE(ILA),RED MC.,3T3

main89341-02050-E4×2iAXXA50..G202304

RADIATOR GRILLE-SPORT TYPE(ILA),BLACKISH BROWN MC.,4X9

main89341-02050-J5×2iAXXA50..G202304

RADIATOR GRILLE-SPORT TYPE(ILA),NEBULA BLUE ME.,8X2

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-02050-A0×2iAXXA50,MXXA50..G201903-202106

WHITE PEARL CS.,070

main89341-02050-A2×2iAXXA50,AXXH50,MXXA50..G,Q202106-202303

PLATINUM WHITE PEARL MC.,089

main89341-02050-B3×2iAXXA50,AXXH50,MXXA50..G,Q202304

METAL STREAM ME,1K0

main89341-02050-C2×2iAXXA50,MXXA50..G201903-202106

BLACK MC.,209

main89341-02050-D4×2iAXXH50..G,Q201903-202107

RED MC.,3T3

main89341-02050-E1×2iAXXH50..G,Q201903-202107

DK. BROWN M.M.,4U3

main89341-02050-E4×2iAXXA50,AXXH50,MXXA50..G,Q202106-202303

BLACKISH BROWN MC.,4X9

main89341-02050-J5×2iAXXA50,AXXH50,MXXA50..G,Q202106-202303

NEBULA BLUE ME.,8X2

main89341-0R100-A0×2iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

PLATINUM WHITE PEARL MC.,089

main89341-0R100-B2×2iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

METAL STREAM ME,1K0

main89341-0R100-B7×2iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

PRECIOUS METAL,1L5

main89341-0R100-B9×2iAXXH52202407

GRAY METALLIC

main89341-0R100-C1×2iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

BLACK MC.,209

main89341-0R100-E3×2iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

BLACKISH BROWN MC.,4X9

main89341-0R100-G2×2iMXXA50..B;AXXH52,MXXH50..B,G,Q202407

BLACKISH GREEN CS.GF.,6X8

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-02010iAXXA50,MXXA50..G201903-202106

8 parts on this diagram · 2 diagrams in section
