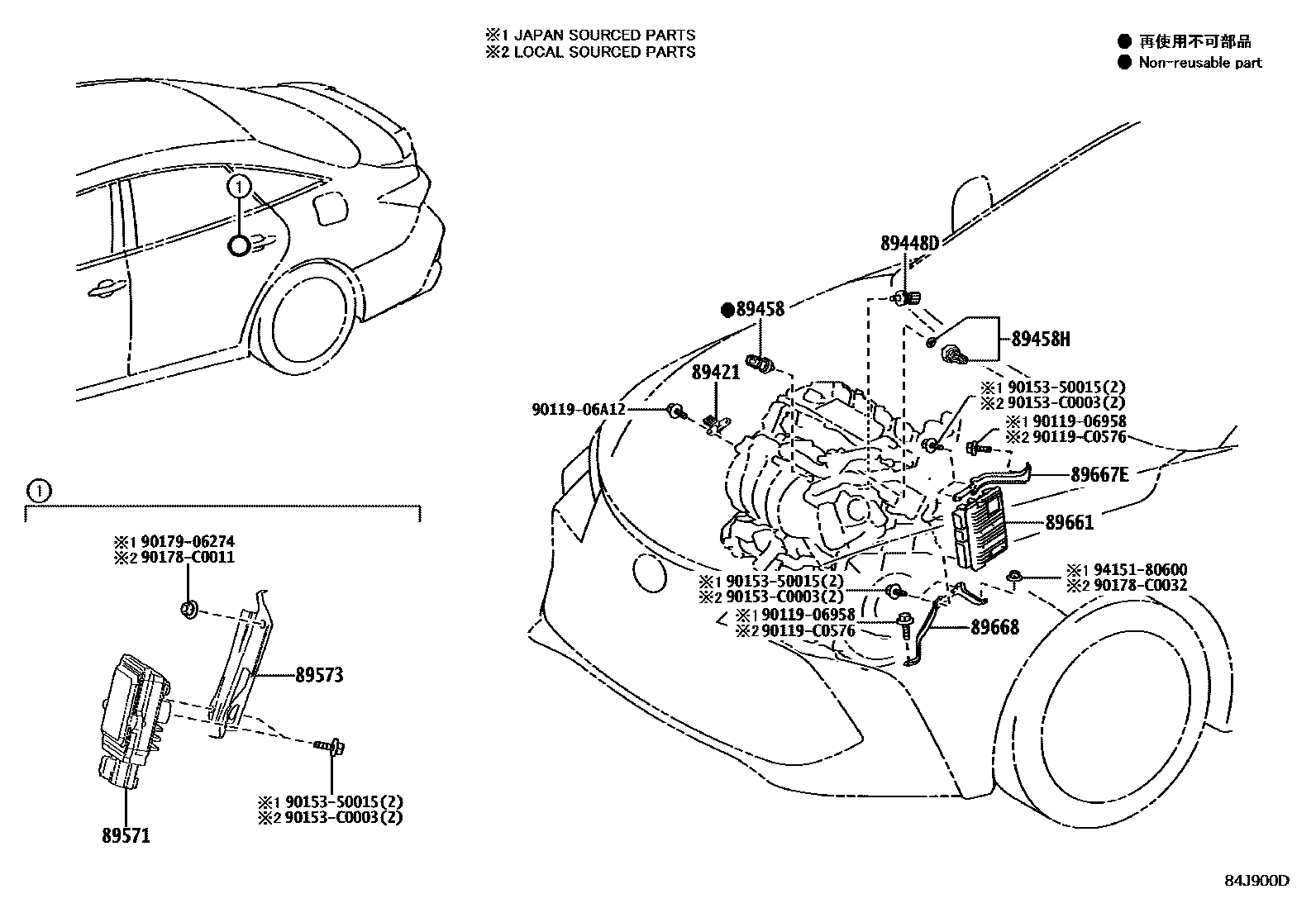

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iMXXA50..B,E;AXXH52,MXXH50201903-202407

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-0R010iMXXA50..G;AXXA50,AXXH50202403-202407

(L)

main89448-33010iAXXA50,MXXA50;AXXH50..B,G,Q201903-202403

main89448-33010iMXXA50..B,E202403-202407

(J)

89458SENSOR, FUEL PRESSURE

main89458-0R010iMXXA50..G;AXXA50,AXXH50202403-202407

(L)

main89458-33030iMXXA50..G;AXXA50,AXXH50202403-202407

(J)

main89458-33030iAXXA50,MXXA50201903-202403

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-0R020iMXXA50..B,E;AXXH52,MXXH50202403-202407

(L)

main89458-33041iAXXA50,MXXA50201903-202206

main89458-33042iMXXA50..B,E202403-202407

(J)

main89458-33042iAXXA50,AXXH50,MXXA50202207-202403

89571COMPUTER, FUEL PUMP CONTROL

main89571-10010iAXXH52,MXXH50202407

main89571-33030iAXXA50,AXXH50201903-201908

main89571-42010iMXXA50..B,E201908-202407

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-07010iAXXA50,AXXH50201903-201908

main89573-07020iAXXH50201908-202407

89661COMPUTER, ENGINE CONTROL

main89661-07690iAXXH50..B,G,Q201910-202203

DENSO

main89661-07700iAXXH50201903-201910

DENSO

main89661-07720iMXXA50201910-202203

DENSO

main89661-07730iAXXA50201903-201910

DENSO

sub89661-07731

main89661-07740iAXXA50201910-202005

DENSO

main89661-07741iAXXA50202006-202203

DENSO

main89661-07860iMXXA50202203-202303

DENSO

main89661-07870iAXXA50202203-202303

DENSO

main89661-07880iAXXH50202203-202303

DENSO

main89661-07890iMXXA50..B,E202304-202407

DENSO

main89661-07A00iAXXH50202304

DENSO

main89661-07A10iAXXA50202304

DENSO

main89661-07A40iMXXA50..B,E202407

DENSO

main89661-07A70iAXXH52202407

DENSO

main89661-07A80iMXXH50202407

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-07080iMXXA50..B,E201903-202407

main89667-07090iAXXH50..B,G,Q201903-202303

main89667-07110iAXXH52,MXXH50202407

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-07080iMXXA50..B,E201903-202407

main89668-07090iAXXH50201903-202303

main89668-07110iAXXH52,MXXH50202407

9011906958

main90119-06958

9011906A12

main90119-06A12

90119C0576

main90119-C0576

9015350015

main90153-50015

90153C0003

main90153-C0003

90178C0011

main90178-C0011

90178C0032

main90178-C0032

9017906274

main90179-06274

9415180600

main94151-80600

18 parts on this diagram · 4 diagrams in section
