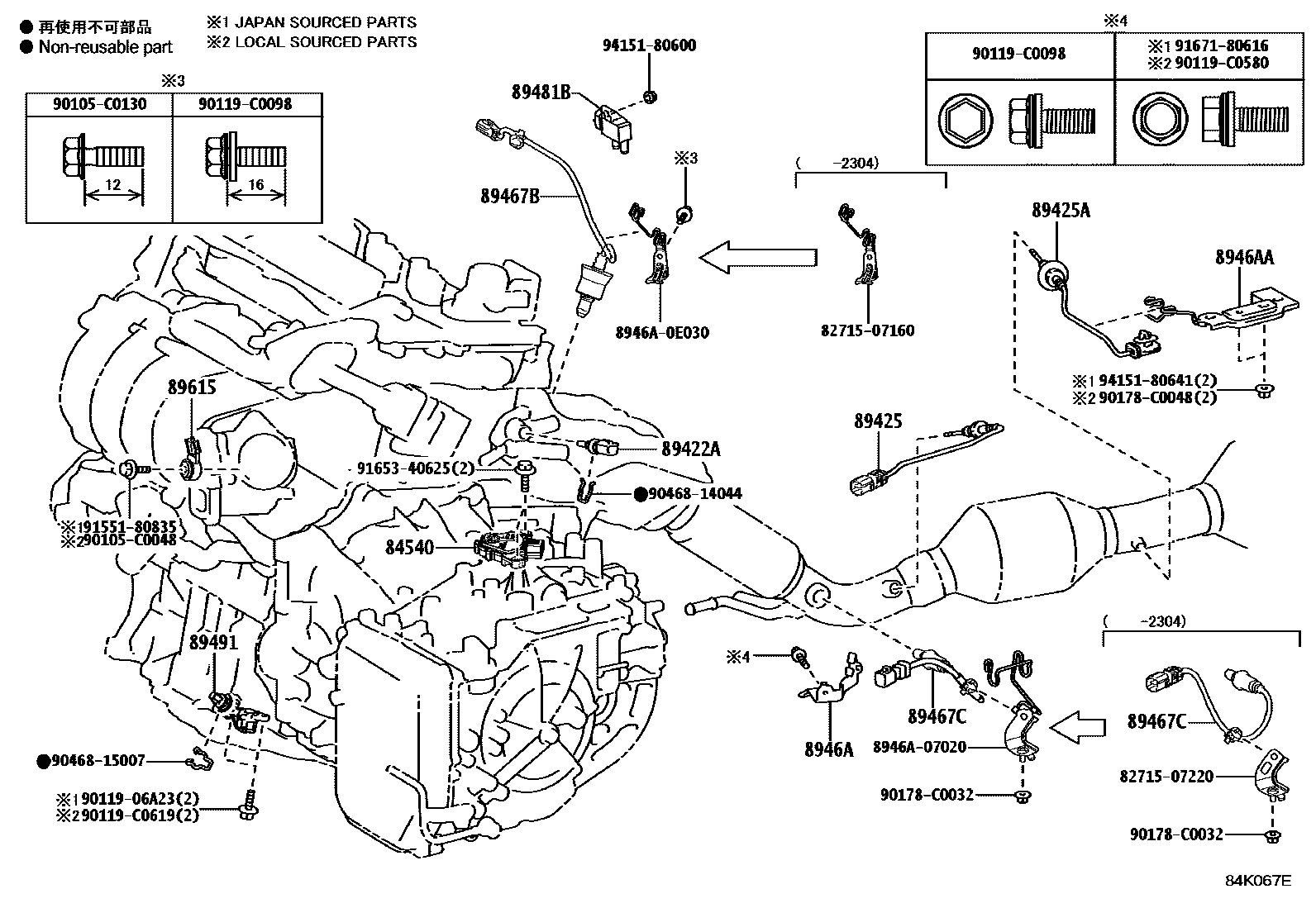

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMXXA50201910-202303

main84540-33020iAXXA50201903-202202

sub84540-33021

sub35572-48051

main84540-33021iAXXA50202202-202303

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXXH50..E201903-202407

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-06030iAXXA50,AXXH50202304

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-06040iAXXA50,AXXH50202304

main89425-06070iAXXH52,MXXH50202407

89467BSENSOR, AIR FUEL RATIO

main89467-07050iAXXH50..E201903-202303

main89467-0R160iMXXA50..B,E202304-202407

main89467-0R190iAXXH52202304

main89467-F4010iMXXA50201910-202303

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-06300iAXXA50,AXXH50202304

main89467-06350iMXXA50..B,E202304-202407

main89467-07060iAXXH50..E201903-202303

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-07030iAXXH52,MXXH50202304

8946AABRACKET, EXHAUST SENSOR CLAMP, NO.2

main8946A-06030iAXXA50,AXXH50202304

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-0E010iAXXH52,MXXH50202407

(L)

main89481-48010iAXXH52,MXXH50202407

(J)

main89481-K0010iAXXA50,AXXH50202304

89491SENSOR, ENGINE OIL LEVEL

main89491-06010iMXXA50201910-202106

*609

sub89491-06011

main89491-06010iAXXA50;AXXH50..B,G,Q202106-202205

(L)

sub89491-06011

main89491-06011iMXXA50202202-202303

(L)

main89491-33051iAXXA50201903-202107

sub89491-33052

main89491-33051iMXXA50201910-202106

*132

sub89491-33052

main89491-33051iMXXA50;AXXH50..E202106-202203

(J)

sub89491-33052

89615SENSOR, KNOCK CONTROL

main89615-0E010iMXXA50..B,E;AXXH52,MXXH50202304-202407

MARK 89615-0E010

main89615-20090iMXXA50..B,E202304-202407

MARK 89615-20090

main89615-20090iAXXA50,MXXA50201903-202303

main89615-78010iAXXH52,MXXH50202407

MARK 89615-78010

8271507160BRACKET,WIRING HARNESS CLAMP

main82715-07160

8271507220BRACKET,WIRING HARNESS CLAMP

main82715-07220

8946A07020BRACKET, EXHAUST SENSOR CLAMP

main8946A-07020

8946A0E030BRACKET, EXHAUST SENSOR CLAMP

main8946A-0E030

90105C0048

main90105-C0048

90105C0130

main90105-C0130

9011906A23

main90119-06A23

90119C0098

main90119-C0098

90119C0580

main90119-C0580

90119C0619

main90119-C0619

90178C0032

main90178-C0032

90178C0048

main90178-C0048

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9165340625

main91653-40625

9167180616

main91671-80616

9415180600

main94151-80600

9415180641

main94151-80641

30 parts on this diagram · 21 diagrams in section
