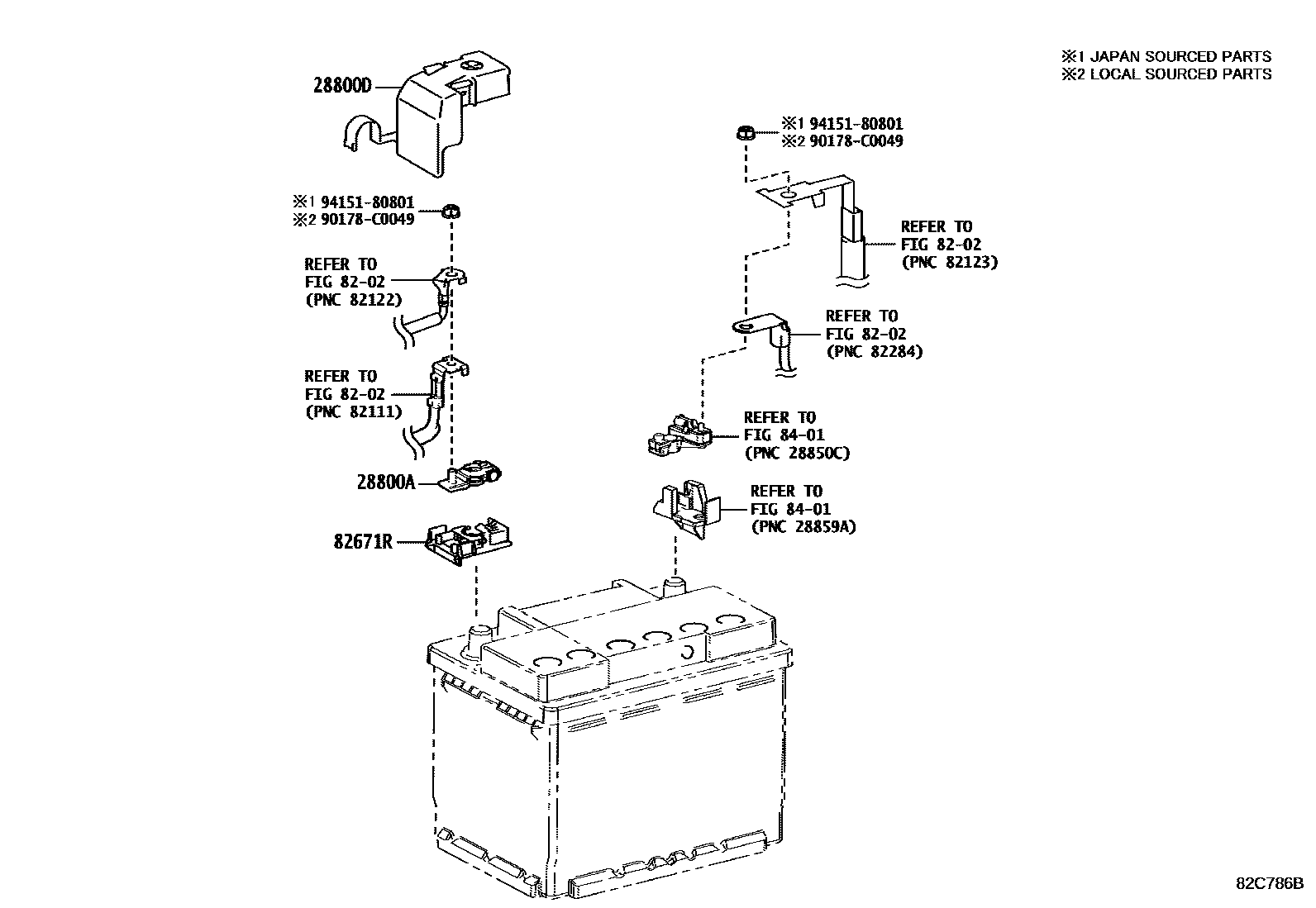

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY 0006 1HV BATTERY 0007 1HV BATTERY 0008 1HV BATTERY 0009 112V BATTERY 0010 1HV BATTERY 0011 1HV BATTERY

28800ATERMINAL, BATTERY POSITIVE

main90982-05053iA25..AXXH50..E202107-202202

main90982-05072iA25,M20..AXXA50,MXXA50202106-202303

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-07010iA25..AXXH50..B,G,Q202107-202303

main82621-YK010iA25,M20..AXXH52,MXXH50202407

main82821-33440iM20..MXXA50..B,E202407

8202

82671RSTOPPER, BATTERY TERMINAL

main82670-33140iAXXH50..E202107-202202

main82671-33100iAXXA50,MXXA50201903-202106

8401

90178C0049

main90178-C0049

9415180801

main94151-80801

7 parts on this diagram · 11 diagrams in section
