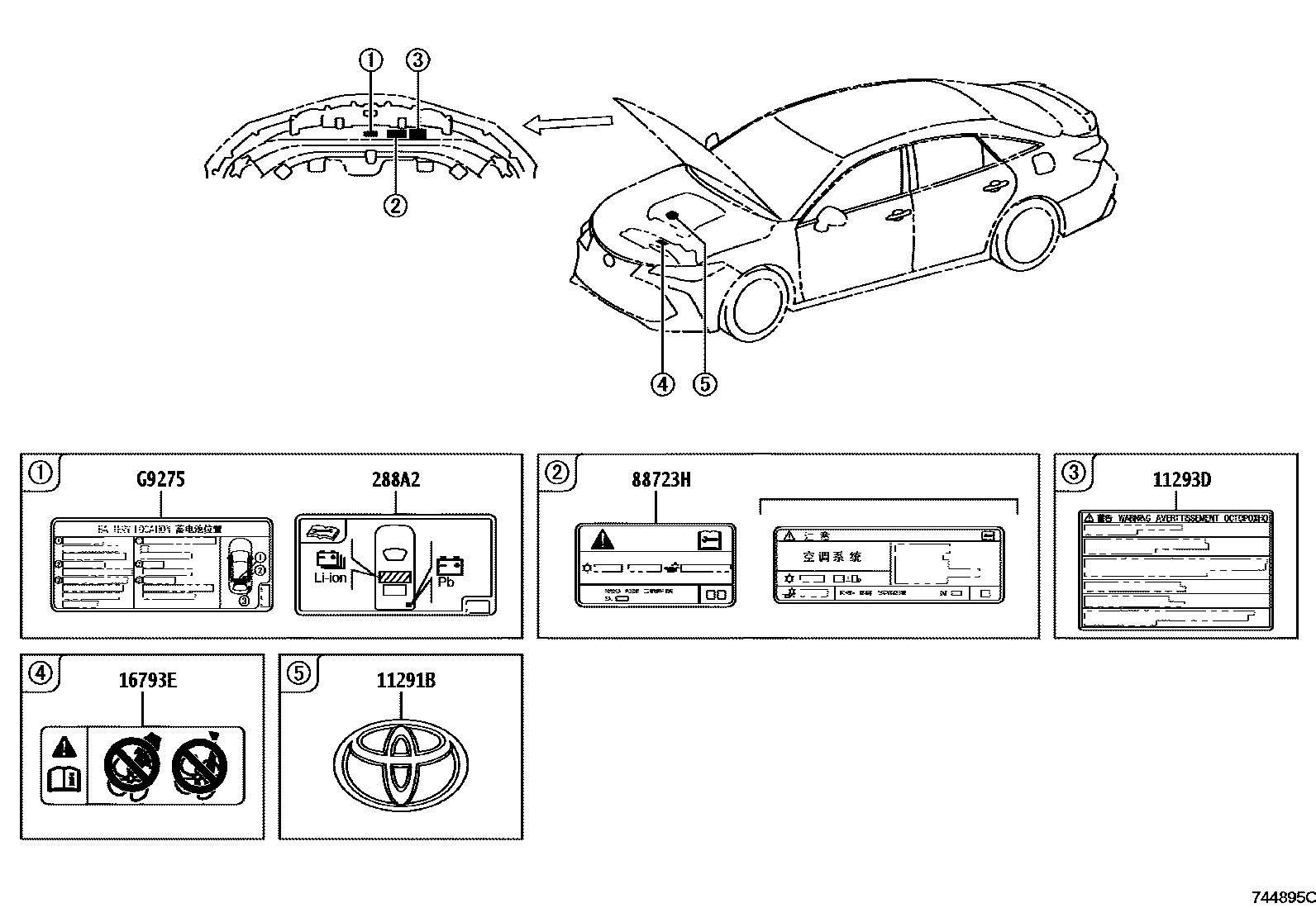

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR 0003 1INTERIOR

11291BPLATE, ENGINE NAME

main11291-50051iM20..MXXA50202106-202303

11293DLABEL, ENGINE CAUTION

main11293-36070iA25..AXXH50201903-202107

16793ELABEL, COOLING FAN CAUTION

main16793-36030iA25..AXXH50201903-202107

288A2LABEL, BATTERY LOCATION

main288A2-F0020iA25..AXXH50202203-202303

88723HLABEL, COOLER SERVICE CAUTION

main88723-07070iAXXA50,MXXA50201903-202106

main88723-07080iAXXH50201903-202107

main88723-07090iMXXA50..B,E202407

main88723-07100iAXXH52,MXXH50202407

G9275LABEL, BATTERY CAUTION, NO.1

mainG927507010iAXXH50..E202107-202202

6 parts on this diagram · 3 diagrams in section
