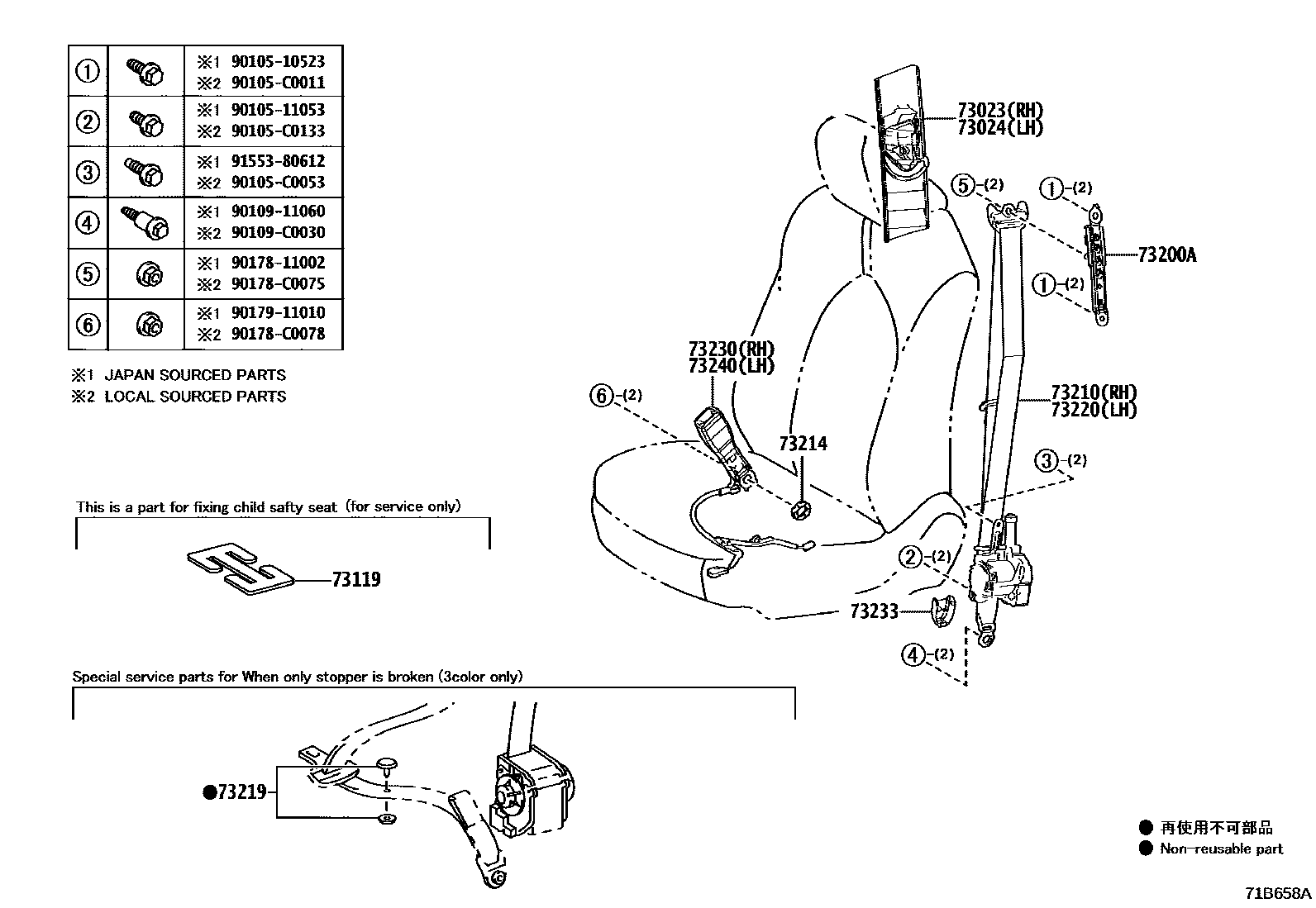

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02070-B2iAXXA50,MXXA50..G201903-202106

NEUTRAL WARM GRAY,TRIM2#

main73023-02070-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

main73023-02070-E0iAXXH50..B,E201903-202107

NEUTRAL BEIGE,TRIM40

main73023-07010-B0iMXXA50..G;AXXA50,AXXH50..B,E202304

NEUTRAL WARM GRAY,TRIM2#,43,FRAME NO.=SXXXXXX

main73023-07010-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,FRAME NO.=SXXXXXX

main73023-07010-E0iMXXA50..B,G;AXXA50,AXXH50..B,E202203-202303

NEUTRAL BEIGE,TRIM40

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02070-B2iAXXA50,AXXH50,MXXA50..G,Q202106-202202

NEUTRAL WARM GRAY,TRIM2#

main73024-02070-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

main73024-02070-E0iAXXH50..B,E201903-202107

NEUTRAL BEIGE,TRIM40

main73024-07010-B0iMXXA50;AXXA50,AXXH50..B,E202203-202303

NEUTRAL WARM GRAY,TRIM2#

main73024-07010-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,FRAME NO.=SXXXXXX

main73024-07010-E0iMXXA50..G;AXXA50,AXXH50..B,E202304

NEUTRAL BEIGE,TRIM4#,FRAME NO.=SXXXXXX

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iMXXA50..B,E;AXXH52,MXXH50202407

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0G020×2iMXXA50..B,E;AXXH52,MXXH50202407

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02710-C1iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

main73210-06470-A1iAXXA50,MXXA50..G201903-202106

IVORY,TRIM40

main73210-06470-C1iAXXA50,AXXH50,MXXA50..G,Q202106-202303

BLACK,TRIM2#,43

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iAXXA50,MXXA50;AXXH50..B,G,Q202106-202303

73219STOPPER, TONGUE PLATE

main73219-33010iAXXH50..E202106-202202

BLACK

main73219-33020iMXXA50..B,E202304-202407

GRAY

main73219-33030iAXXA50,MXXA50;AXXH50..B,G,Q202106-202303

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02720-C1iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

main73220-06440-A1iMXXA50..G;AXXA50,AXXH50..B,E202304

IVORY,TRIM40

main73220-06440-C1iMXXA50..G;AXXA50,AXXH50..B,E202304

BLACK,TRIM2#,43

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-06A20-C0iAXXH50..Q202304

BLACK,TRIM2#,4#

main73230-06A30-C0iMXXA50;AXXA50..G201903-202106

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0R030-C1×2iAXXA50;AXXH50,MXXA50..B,G,Q202106-202303

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-06A00-C0iMXXA50..E201903-202106

BLACK,TRIM2#

main73230-06A10-C0supersedes 73230-06A00-C0iAXXA50,MXXA50..B,G201903-202106

BLACK,TRIM2#,4#

main73230-07070-C0iAXXH50..Q202107-202303

BLACK,TRIM2#,4#

9010510523

main90105-10523

9010511053

main90105-11053

90105C0011

main90105-C0011

90105C0053

main90105-C0053

90105C0133

main90105-C0133

9010911060

main90109-11060

90109C0030

main90109-C0030

9017811002

main90178-11002

90178C0075

main90178-C0075

90178C0078

main90178-C0078

9017911010

main90179-11010

9155380612

main91553-80612

23 parts on this diagram · 2 diagrams in section
