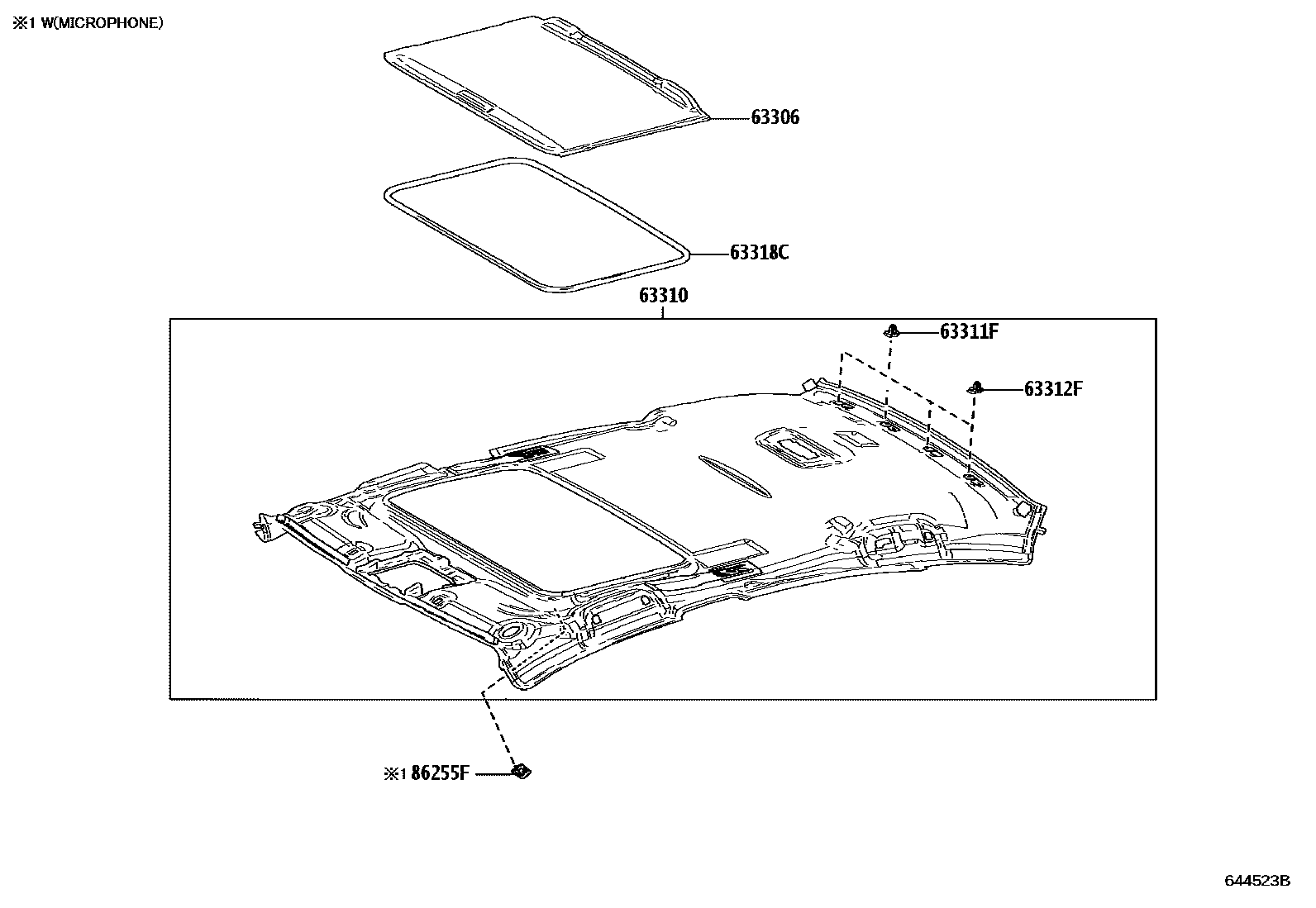

ROOF HEADLINING & SILENCER PAD

0001 1MOON ROOF 0002 1PANORAMIC ROOF

63306TRIM SUB-ASSY, SUNSHADE

main63306-07030-B0supersedes 63306-07030-B0iMXXA50;AXXH50..B;AXXA50..E202106-202303

NEUTRAL WARM GRAY,TRIM2#

main63306-07030-C1iMXXA50..E202407

BLACK,TRIM2#

main63306-07030-E0supersedes 63306-07030-E0iAXXA50,MXXA50..B,E201903-202106

NEUTRAL BEIGE,TRIM4#

main63306-07040-B1supersedes 63306-07040-B1iAXXA50,AXXH50..G,Q202304

NEUTRAL WARM GRAY,TRIM2#,43

main63306-07040-E1supersedes 63306-07040-E1iAXXA50,AXXH50..G,Q202304

NEUTRAL BEIGE,TRIM40

63310HEADLINING ASSY, ROOF

main63310-07280-B0supersedes 63310-07280-B0iAXXA50,MXXA50..B,E201903-202106

NEUTRAL WARM GRAY,TRIM2#

main63310-07280-E0supersedes 63310-07280-E0iAXXA50,MXXA50..B,E201903-202106

NEUTRAL BEIGE,TRIM4#

main63310-07290-B0supersedes 63310-07290-B0iAXXH50..G,Q201903-202107

NEUTRAL WARM GRAY,TRIM2#,43

main63310-07290-E0supersedes 63310-07290-E0iAXXH50..G,Q201903-202107

NEUTRAL BEIGE,TRIM40

main63310-07300-B0iMXXA50..B,E202304-202407

NEUTRAL WARM GRAY,TRIM2#

main63310-07300-E0iMXXA50..B,G;AXXA50,AXXH50..B,E202203-202303

NEUTRAL BEIGE,TRIM4#

main63310-07310-B0iAXXA50,AXXH50..G,Q202203-202303

NEUTRAL WARM GRAY,TRIM2#,43

main63310-07310-E0iAXXA50,AXXH50..G,Q202304

NEUTRAL BEIGE,TRIM40

main63310-YK030-C0iMXXA50..E202407

BLACK,TRIM2#

main63310-YK040-C1iMXXA50..B;AXXH52,MXXH50..B,G202407

BLACK,TRIM1#,2#,4#

main63310-YK050-C0iAXXH52,MXXH50..Q202407

BLACK,TRIM1#,2#,4#

main63310-YK060-C1iMXXH50..E202407

BLACK,TRIM1#,2#,4#

63311FCLIP, ROOF HEADLINING, NO.1

main90467-10181iAXXA50,MXXA50201903-202106

63312FCLIP, ROOF HEADLINING, NO.2

main90467-09126×3iAXXA50,MXXA50201903-202106

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-07010-B0supersedes 63318-07010-B0iAXXA50,MXXA50..B,E201903-202106

L=2410,NEUTRAL WARM GRAY,TRIM2#

main63318-07010-C0iMXXA50..E202407

L=2410,BLACK,TRIM2#

main63318-07010-E0supersedes 63318-07010-E0iAXXA50,MXXA50..B,E201903-202106

L=2410,NEUTRAL BEIGE,TRIM4#

86255FCASE, MICROPHONE

main86255-0A010-C0iMXXH50..E202407

BLACK,TRIM1#,2#,4#

6 parts on this diagram · 2 diagrams in section
