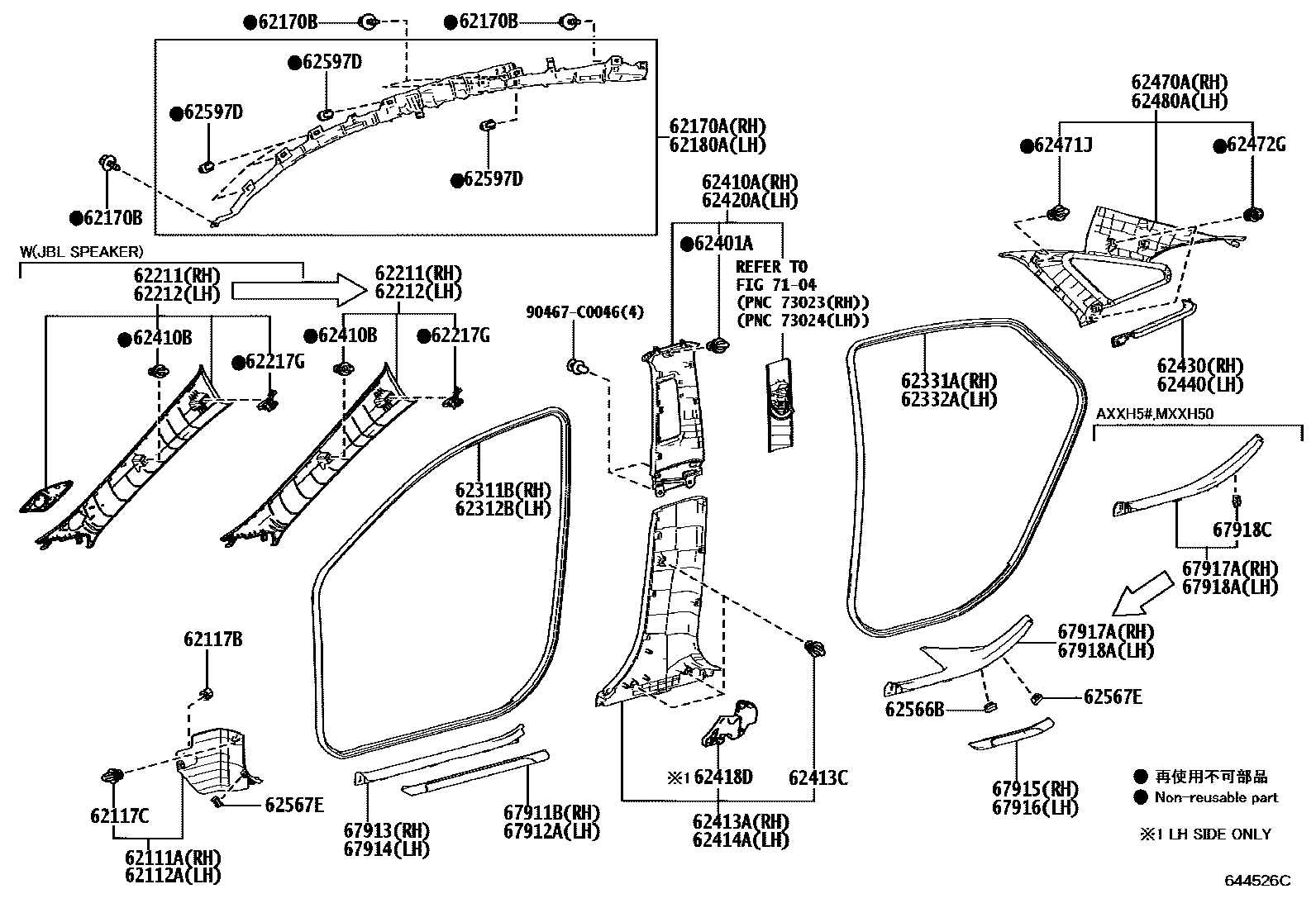

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-07010-C0iMXXA50..E201903-202407

BLACK,TRIM2#,4#

main62101-07010-C0iMXXA50..E202106-202407

BLACK,TRIM2#

main62101-07010-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-07010-C0iAXXH50..E202106-202407

BLACK,TRIM2#

main62102-07010-C0iAXXH50201903-202407

BLACK,TRIM2#,4#

main62102-07010-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iAXXA50,MXXA50201903-202407

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-C0036iAXXA50,MXXA50201903-202407

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-07040iAXXA50,MXXA50201903-202407

62170BBOLT, W/WASHER

main90119-C0107iAXXH50..E201903-202407

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-07040iAXXH50..E201903-202407

62211GARNISH, FRONT PILLAR, RH

main62210-07050-B2iMXXA50;AXXA50..E201903-202203

NEUTRAL WARM GRAY,TRIM2#,43

main62210-07050-B2iMXXA50;AXXA50..E201903-202203

NEUTRAL WARM GRAY,TRIM2#

main62210-07050-C1iMXXA50..E202407

BLACK,TRIM2#,FRAME NO.=0XXXXXX

main62210-07050-E2iAXXH50..G201903-202203

NEUTRAL BEIGE,TRIM4#

main62210-07050-E2iAXXH50..G201903-202203

NEUTRAL BEIGE,TRIM40

main62210-07060-B2iAXXH50..Q201903-202203

NEUTRAL WARM GRAY,TRIM2#,43

main62210-07060-E2iAXXH50..Q201903-202203

NEUTRAL BEIGE,TRIM40

main62210-07070-B0iMXXA50..G;AXXA50,AXXH50..B,E202203-202303

NEUTRAL WARM GRAY,TRIM2#,43

main62210-07070-B0iAXXA50,AXXH50..G202203-202407

NEUTRAL WARM GRAY,TRIM2#

main62210-07070-E0iAXXA50,AXXH50..G202203-202303

NEUTRAL BEIGE,TRIM40

main62210-07070-E0iAXXA50,AXXH50..G202203-202407

NEUTRAL BEIGE,TRIM4#

main62210-07080-B0iAXXH50..Q202203-202303

NEUTRAL WARM GRAY,TRIM2#,43

main62210-07080-E0iAXXH50..Q202203-202303

NEUTRAL BEIGE,TRIM40

main62210-YK010-C1iMXXA50..E202407

ENTRY PLUS PACKAGE,BLACK,TRIM1#,2#,4#

main62210-YK010-C1iMXXA50..B;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

main62210-YK020-C0iMXXA50..E202407

BLACK,TRIM2#,FRAME NO.=SXXXXXX

62212GARNISH, FRONT PILLAR, LH

main62220-07050-B2iMXXA50;AXXA50..E201903-202203

NEUTRAL WARM GRAY,TRIM2#,43

main62220-07050-B2iAXXH50..B;AXXA50,MXXA50..B,E201903-202203

NEUTRAL WARM GRAY,TRIM2#

main62220-07050-C1iMXXA50..E202407

BLACK,TRIM2#,FRAME NO.=0XXXXXX

main62220-07050-E2iAXXA50..G201903-202203

NEUTRAL BEIGE,TRIM40

main62220-07050-E2iAXXA50..G201903-202203

NEUTRAL BEIGE,TRIM4#

main62220-07060-B2iAXXH50..Q201903-202203

NEUTRAL WARM GRAY,TRIM2#,43

main62220-07060-E2iAXXH50..Q201903-202203

NEUTRAL BEIGE,TRIM40

main62220-07070-B0iMXXA50..B,E202203-202407

NEUTRAL WARM GRAY,TRIM2#

main62220-07070-B0iAXXA50,AXXH50..G202203-202303

NEUTRAL WARM GRAY,TRIM2#,43

main62220-07070-E0iMXXA50..B202203-202407

NEUTRAL BEIGE,TRIM4#

main62220-07070-E0iAXXA50,AXXH50..G202203-202303

NEUTRAL BEIGE,TRIM40

main62220-07080-B0iAXXH50..Q202203-202303

NEUTRAL WARM GRAY,TRIM2#,43

main62220-07080-E0iAXXH50..Q202203-202303

NEUTRAL BEIGE,TRIM40

main62220-YK010-C1iMXXA50..B;AXXH52,MXXH50202407

ENTRY PLUS PACKAGE,BLACK,TRIM1#,2#,4#

main62220-YK010-C1iMXXA50..E202407

BLACK,TRIM1#,2#,4#

main62220-YK020-C0iMXXA50..E202407

BLACK,TRIM2#,FRAME NO.=SXXXXXX

62217GCLIP, FRONT PILLAR GARNISH

main62217-11020iAXXA50,MXXA50201903-202407

main62217-11020iMXXA50..E202407

ENTRY PLUS PACKAGE

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-07050iAXXH50..E201903-202407

main62311-YK030iMXXA50..B,E;AXXH52,MXXH50202407

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-07050iAXXH50201903-202407

main62312-YK030iMXXA50..B,E;AXXH52,MXXH50202407

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-07050iAXXH50201903-202407

main62331-YK030iMXXA50..B,E;AXXH52,MXXH50202407

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-07050iAXXA50,MXXA50201903-202407

main62332-YK030iMXXA50..B,E;AXXH52,MXXH50202407

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main62217-13010iMXXA50..B;AXXH52,MXXH50202407

ENTRY PLUS PACKAGE

main62217-13010iAXXA50,MXXA50201903-202407

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-07040-B0iAXXA50,AXXH50,MXXA50..G,Q201903-202203

NEUTRAL WARM GRAY,TRIM2#

main62410-07040-B0iAXXH50..B;AXXA50,MXXA50..B,E201903-202203

NEUTRAL WARM GRAY,TRIM2#,43

main62410-07040-E0iAXXA50..E;AXXH50,MXXA50..B201903-202203

NEUTRAL BEIGE,TRIM4#

main62410-07040-E0iAXXA50,MXXA50..G201903-202203

NEUTRAL BEIGE,TRIM40

main62410-07050-B0iMXXA50..B,E202203-202407

NEUTRAL WARM GRAY,TRIM2#

main62410-07050-B0iAXXA50,AXXH50..G,Q202203-202303

NEUTRAL WARM GRAY,TRIM2#,43

main62410-07050-E0iMXXA50..B202203-202407

NEUTRAL BEIGE,TRIM4#

main62410-07050-E0iAXXA50,AXXH50..G,Q202203-202303

NEUTRAL BEIGE,TRIM40

main62410-YK010-C1iMXXA50..B;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

main62410-YK010-C1iMXXA50..E202407

ENTRY PLUS PACKAGE,BLACK,TRIM1#,2#,4#

main62410-YK020-C0iMXXA50..E202407

BLACK,TRIM2#,FRAME NO.=0XXXXXX

main62410-YK030-C0iMXXA50..E202407

BLACK,TRIM2#,FRAME NO.=SXXXXXX

62410BCLIP

main90467-C0036iMXXA50..B;AXXH52,MXXH50202407

ENTRY PLUS PACKAGE

main90467-C0036iAXXA50,MXXA50;AXXH50..B,G,Q201903-202407

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-07020-C0iMXXA50..E202106-202203

BLACK,TRIM2#

main62413-07020-C0iMXXA50..E201903-202203

BLACK,TRIM2#,4#

main62413-07020-C0iMXXA50..E202407

BLACK,TRIM2#,FRAME NO.=0XXXXXX

main62413-07030-C0iMXXA50..E202407

BLACK,TRIM2#,FRAME NO.=SXXXXXX

main62413-07030-C0iMXXA50..E202203-202407

BLACK,TRIM2#

main62413-07030-C0iMXXA50..E202203-202407

BLACK,TRIM2#,4#

main62413-07030-C0iMXXA50..E202407

BLACK,TRIM1#,2#,4#

main62413-07030-C0iMXXA50..E202407

ENTRY PLUS PACKAGE,BLACK,TRIM1#,2#,4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-C0036iAXXH50201903-202407

main90467-C0036iMXXA50..E202407

ENTRY PLUS PACKAGE

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-07020-C0iAXXA50,MXXA50201903-202203

BLACK,TRIM2#,4#

main62414-07020-C0iAXXH50..E202106-202203

BLACK,TRIM2#

main62414-07020-C0iMXXA50..E202407

BLACK,TRIM2#,FRAME NO.=0XXXXXX

main62414-07030-C0iMXXA50..E202407

BLACK,TRIM2#,FRAME NO.=SXXXXXX

main62414-07030-C0iMXXA50..E202407

BLACK,TRIM1#,2#,4#

main62414-07030-C0iMXXA50..E202407

ENTRY PLUS PACKAGE,BLACK,TRIM1#,2#,4#

main62414-07030-C0iMXXA50..E202203-202407

BLACK,TRIM2#

main62414-07030-C0iMXXA50..E202203-202407

BLACK,TRIM2#,4#

62418DPAD, CENTER PILLAR GARNISH, NO.2

main62418-07020iAXXA50,MXXA50201903-202203

main62418-07020iMXXA50..E202407

FRAME NO.=0XXXXXX

main62418-07030iMXXA50..B;AXXH52,MXXH50202407

FRAME NO.=SXXXXXX

main62418-07030iAXXA50,AXXH50,MXXA50202203-202407

main62418-07030iMXXA50..E202407

ENTRY PLUS PACKAGE

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-07040-B0iMXXA50;AXXA50,AXXH50..B,E202203-202303

NEUTRAL WARM GRAY,TRIM2#,43

main62420-07040-B0iMXXA50;AXXA50,AXXH50..B,E202203-202407

NEUTRAL WARM GRAY,TRIM2#

main62420-07040-E0iMXXA50..G;AXXA50,AXXH50..B,E202203-202407

NEUTRAL BEIGE,TRIM4#

main62420-07040-E0iAXXA50,AXXH50..G,Q202203-202303

NEUTRAL BEIGE,TRIM40

main62420-07050-B0iAXXH50..B;AXXA50,MXXA50..B,E201903-202203

NEUTRAL WARM GRAY,TRIM2#

main62420-07050-B0iAXXA50,MXXA50..B,E201903-202203

NEUTRAL WARM GRAY,TRIM2#,43

main62420-07050-E0iAXXH50..B,E201903-202203

NEUTRAL BEIGE,TRIM40

main62420-07050-E0iAXXA50,MXXA50..G201903-202203

NEUTRAL BEIGE,TRIM4#

main62420-YK010-C1iMXXA50..E202407

BLACK,TRIM1#,2#,4#

main62420-YK010-C1iMXXA50..B;AXXH52,MXXH50202407

ENTRY PLUS PACKAGE,BLACK,TRIM1#,2#,4#

main62420-YK020-C0iMXXA50..E202407

BLACK,TRIM2#,FRAME NO.=0XXXXXX

main62420-YK030-C0iMXXA50..E202407

BLACK,TRIM2#,FRAME NO.=SXXXXXX

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62430-07020-B0iAXXH50..B;AXXA50,MXXA50..B,E201903-202203

NEUTRAL WARM GRAY,TRIM2#,43

main62430-07020-B0iAXXH50..B;AXXA50,MXXA50..B,E201903-202203

NEUTRAL WARM GRAY,TRIM2#

main62430-07020-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,FRAME NO.=0XXXXXX

main62430-07020-E0iAXXH50..B,E201903-202203

NEUTRAL BEIGE,TRIM4#

main62430-07020-E0iAXXA50,MXXA50..G201903-202203

NEUTRAL BEIGE,TRIM40

main62430-07030-B0iAXXA50,AXXH50..G,Q202203-202407

NEUTRAL WARM GRAY,TRIM2#

main62430-07030-B0iMXXA50;AXXA50,AXXH50..B,E202203-202303

NEUTRAL WARM GRAY,TRIM2#,43

main62430-07030-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,FRAME NO.=SXXXXXX

main62430-07030-E0iMXXA50..G;AXXA50,AXXH50..B,E202203-202303

NEUTRAL BEIGE,TRIM40

main62430-07030-E0iMXXA50..G;AXXA50,AXXH50..B,E202203-202407

NEUTRAL BEIGE,TRIM4#

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62440-07020-B0iAXXA50,MXXA50..B,E201903-202203

NEUTRAL WARM GRAY,TRIM2#

main62440-07020-B0iAXXA50,MXXA50..G201903-202203

NEUTRAL WARM GRAY,TRIM2#,43

main62440-07020-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,FRAME NO.=0XXXXXX

main62440-07020-E0iAXXA50,MXXA50..B,E201903-202203

NEUTRAL BEIGE,TRIM4#

main62440-07020-E0iAXXA50,MXXA50..B,E201903-202203

NEUTRAL BEIGE,TRIM40

main62440-07030-B0iAXXA50,AXXH50..G,Q202203-202303

NEUTRAL WARM GRAY,TRIM2#,43

main62440-07030-B0iMXXA50..G;AXXA50,AXXH50..B,E202203-202407

NEUTRAL WARM GRAY,TRIM2#

main62440-07030-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,FRAME NO.=SXXXXXX

main62440-07030-E0iMXXA50..B,G;AXXA50,AXXH50..B,E202203-202407

NEUTRAL BEIGE,TRIM4#

main62440-07030-E0iAXXA50,AXXH50..G,Q202203-202303

NEUTRAL BEIGE,TRIM40

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-07030-B0iAXXA50,MXXA50..G201903-202203

NEUTRAL WARM GRAY,TRIM2#,43

main62470-07030-B0iAXXA50,MXXA50..G201903-202203

NEUTRAL WARM GRAY,TRIM2#

main62470-07030-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,FRAME NO.=0XXXXXX

main62470-07030-E0iAXXA50..E;AXXH50,MXXA50..B201903-202203

NEUTRAL BEIGE,TRIM4#

main62470-07030-E0iAXXA50,MXXA50..G201903-202203

NEUTRAL BEIGE,TRIM40

main62470-07060-B0iAXXA50,AXXH50..G,Q202203-202407

NEUTRAL WARM GRAY,TRIM2#

main62470-07060-B0iMXXA50;AXXA50,AXXH50..B,E202203-202303

NEUTRAL WARM GRAY,TRIM2#,43

main62470-07060-E0iMXXA50..B202203-202407

NEUTRAL BEIGE,TRIM4#

main62470-07060-E0iAXXA50,AXXH50..G,Q202203-202303

NEUTRAL BEIGE,TRIM40

main62470-YK010-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,FRAME NO.=SXXXXXX

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-C0034iAXXH50..E201903-202407

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-C0036iAXXH50201903-202407

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-07030-B0iAXXA50,MXXA50..B,E201903-202203

NEUTRAL WARM GRAY,TRIM2#,43

main62480-07030-B0iAXXA50,MXXA50..B,E201903-202203

NEUTRAL WARM GRAY,TRIM2#

main62480-07030-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,FRAME NO.=0XXXXXX

main62480-07030-E0iAXXH50..G,Q201903-202203

NEUTRAL BEIGE,TRIM4#

main62480-07030-E0iAXXH50..G,Q201903-202203

NEUTRAL BEIGE,TRIM40

main62480-07040-B0iMXXA50..G;AXXA50,AXXH50..B,E202203-202407

NEUTRAL WARM GRAY,TRIM2#

main62480-07040-B0iAXXA50,AXXH50..G,Q202203-202303

NEUTRAL WARM GRAY,TRIM2#,43

main62480-07040-E0iMXXA50..B202203-202407

NEUTRAL BEIGE,TRIM4#

main62480-07040-E0iMXXA50..B,G;AXXA50,AXXH50..B,E202203-202303

NEUTRAL BEIGE,TRIM40

main62480-YK010-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#,FRAME NO.=SXXXXXX

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-32010iAXXA50,MXXA50201903-202407

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33040iMXXA50..B,E;AXXH52,MXXH50201903-202407

62597DCLIP

main90467-18017iAXXH50201903-202407

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-07040iAXXH50..B,E201903-202407

main67911-07050iAXXA50,MXXA50..G201903-202303

main67911-YK010iAXXH52,MXXH50..G,Q202407

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-07040iAXXH50..E201903-202407

main67912-07050iAXXA50,AXXH50,MXXA50..G,Q201903-202303

main67912-YK010iAXXH52,MXXH50..G,Q202407

67913PLATE, FRONT DOOR SCUFF, RH

main67913-07010-C0iMXXA50..E201903-202407

BLACK,TRIM2#,4#

main67913-07010-C0iAXXA50;AXXH50,MXXA50..B,G,Q202106-202407

BLACK,TRIM2#

main67913-07010-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-07010-C0iAXXA50;AXXH50,MXXA50..B,G,Q201903-202407

BLACK,TRIM2#,4#

main67914-07010-C0iAXXH50..E202106-202407

BLACK,TRIM2#

main67914-07010-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-07050iMXXA50..B,E201903-202407

main67915-07060iAXXA50,AXXH50,MXXA50..G,Q201903-202303

main67915-YK010iAXXH52,MXXH50..G,Q202407

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-07050iAXXH50..E201903-202407

main67916-07060iAXXH50..G,Q201903-202303

main67916-YK010iAXXH52,MXXH50..G,Q202407

67917APLATE, REAR DOOR SCUFF, RH

main67917-07040-C0iAXXA50;MXXA50..B,G202106-202407

BLACK,TRIM2#

main67917-07040-C0iAXXA50,MXXA50201903-202407

BLACK,TRIM2#,4#

main67917-07040-C0iMXXA50..B,E202407

BLACK,TRIM1#,2#,4#

main67917-07050-C0iAXXH50..E202107-202202

BLACK,TRIM2#

main67917-07050-C0iAXXH50..B,G,Q201903-202303

BLACK,TRIM2#,4#

main67917-07050-C0iAXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-07040-C0iMXXA50..E202106-202407

BLACK,TRIM2#

main67918-07040-C0iAXXA50,MXXA50201903-202407

BLACK,TRIM2#,4#

main67918-07040-C0iMXXA50..B,E202407

BLACK,TRIM1#,2#,4#

main67918-07050-C0iAXXH50..E202107-202202

BLACK,TRIM2#

main67918-07050-C0iAXXH50201903-202303

BLACK,TRIM2#,4#

main67918-07050-C0iAXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-05171iAXXH50201903-202303

main90467-05171iAXXH52,MXXH50202304

(J)

main90467-C0087iAXXH50202304

(L)

7104

90467C0046

main90467-C0046

42 parts on this diagram · 1 diagram in section
