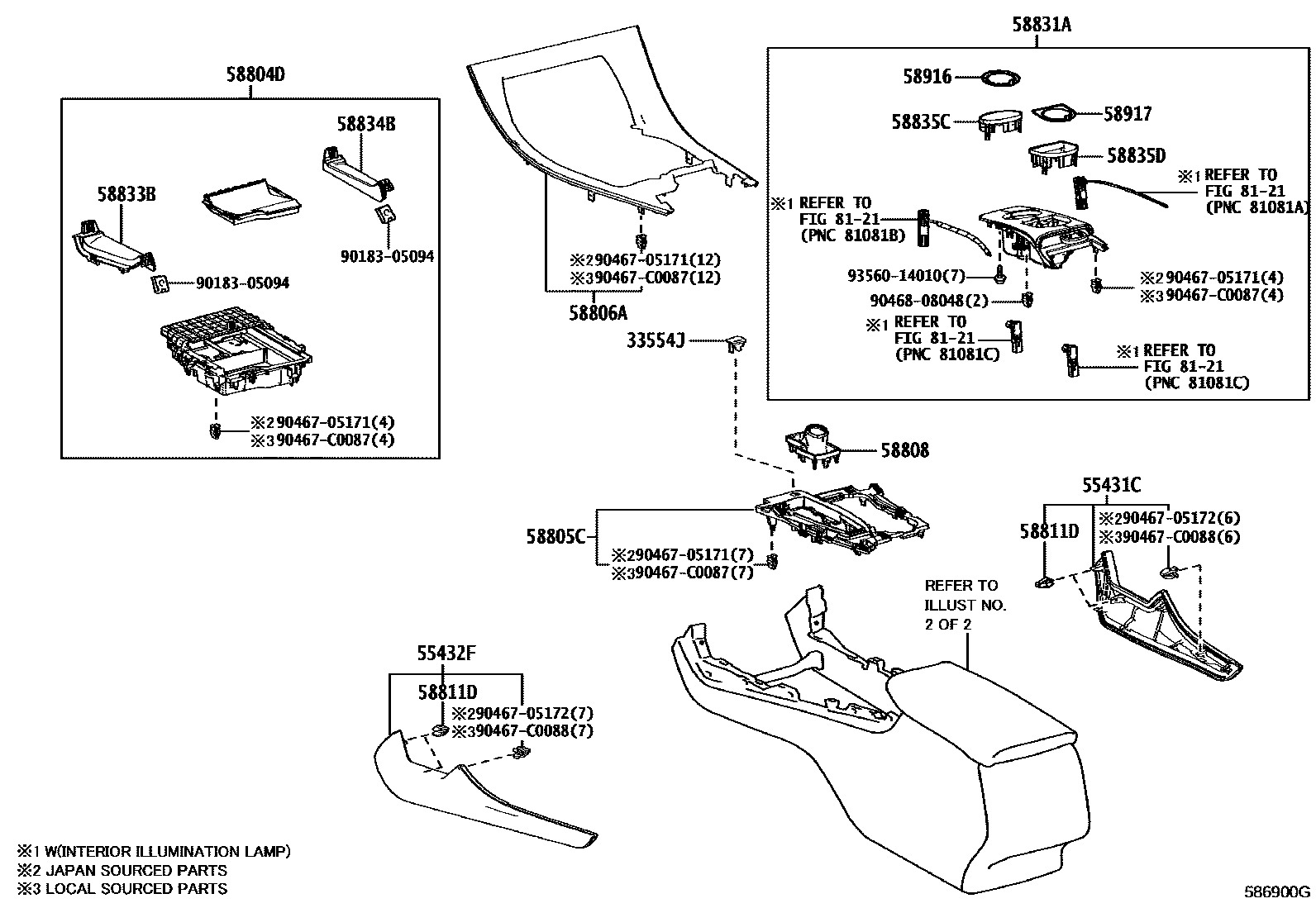

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

33554JCOVER, SHIFT LOCK RELEASE BUTTON

main33554-07080-C0iAXXA50;MXXA50..B,G201903-202203

BLACK,TRIM2#,4#

main33554-07080-C0iAXXH50..E201903-202203

BLACK,TRIM2#

main33554-07090iAXXA50,AXXH50,MXXA50202203-202407

55431CPANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55431-07070-C2iAXXH50,MXXA50..E201903-202008

BLACK,TRIM2#

main55431-07070-C2iAXXH50,MXXA50..E201903-202008

BLACK,TRIM2#,4#

main55431-07071-C2iMXXA50..E202008-202203

BLACK,TRIM2#,4#

main55431-07071-C2iMXXA50..E202008-202203

BLACK,TRIM2#

main55431-07100-C0iAXXA50202203-202407

BLACK,TRIM2#

main55431-07100-C0iAXXH50;MXXA50..G202203-202303

BLACK,TRIM20

main55431-07100-C1iAXXA50202203-202303

BLACK/IVORY,TRIM21

main55431-07100-E2iMXXA50..G;AXXA50,AXXH50..B,E202203-202303

NEUTRAL BEIGE,TRIM40

main55431-07100-E2iAXXA50,AXXH50..G,Q202203-202407

NEUTRAL BEIGE,TRIM4#

main55431-07100-E3iAXXA50,AXXH50..G,Q202203-202303

OCHER,TRIM43

main55431-YK010-B1iMXXA50..B,E;AXXH52,MXXH50202407

COOL GRAY;HAZEL,TRIM1#

main55431-YK010-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM20

main55431-YK010-C1iMXXA50..B,E;AXXH52,MXXH50202407

SADDLE TAN NO.044;BLACK,TRIM20

main55431-YK010-E1iMXXA50..B,E;AXXH52,MXXH50202407

OCHER;SHELL,TRIM4#

55432FPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55432-07090-C2iAXXH50,MXXA50..E201903-202008

BLACK,TRIM2#,4#

main55432-07090-C2iAXXA50;AXXH50,MXXA50..B,G,Q201903-202008

BLACK,TRIM2#

main55432-07091-C2iAXXH50..B,G,Q202008-202203

BLACK,TRIM2#,4#

main55432-07091-C2iMXXA50..E202008-202203

BLACK,TRIM2#

main55432-07130-C0iAXXH50,MXXA50202203-202407

BLACK,TRIM2#

main55432-07130-C0iAXXH50;MXXA50..G202203-202303

BLACK,TRIM20

main55432-07130-C1iAXXA50202203-202303

BLACK/IVORY,TRIM21

main55432-07130-E2iAXXA50,AXXH50..G,Q202203-202407

NEUTRAL BEIGE,TRIM4#

main55432-07130-E2iAXXA50,AXXH50..G,Q202203-202303

NEUTRAL BEIGE,TRIM40

main55432-07130-E3iAXXA50,AXXH50..G,Q202203-202303

OCHER,TRIM43

main55432-YK020-B1iMXXA50..B,E;AXXH52,MXXH50202407

COOL GRAY;HAZEL,TRIM1#

main55432-YK020-C0iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM20

main55432-YK020-C1iMXXA50..B,E;AXXH52,MXXH50202407

SADDLE TAN NO.044;BLACK,TRIM20

main55432-YK020-E1iMXXA50..B,E;AXXH52,MXXH50202407

OCHER;SHELL,TRIM4#

58804DPANEL SUB-ASSY, CONSOLE, UPPER FRONT

main58804-07160-C4iAXXA50,AXXH50,MXXA50201903-202008

BLACK,TRIM2#

main58804-07160-C5iAXXA50..E;AXXH50..B;MXXA50..B,G201903-202008

NEUTRAL BEIGE,TRIM4#

main58804-07160-C5iAXXA50,AXXH50..G,Q201903-202008

NEUTRAL BEIGE,TRIM40

main58804-07160-C6iAXXA50,AXXH50..G,Q201903-202008

OCHER,TRIM43

main58804-07161-C4iAXXA50..E;AXXH50..B;MXXA50..B,G202106-202203

BLACK,TRIM2#,40

main58804-07161-C4iAXXA50,AXXH50..G,Q202008-202203

BLACK,TRIM2#

main58804-07161-C4iMXXA50..E202106-202203

BLACK,TRIM2#,40,43

main58804-07161-C5iAXXA50;AXXH50,MXXA50..B,G,Q202008-202203

NEUTRAL BEIGE,TRIM40

main58804-07161-C5iAXXA50..G202008-202107

NEUTRAL BEIGE,TRIM4#

main58804-07161-C6iAXXH50..G,Q202008-202203

OCHER,TRIM43

main58804-07180-C0iAXXA50,AXXH50..B,G,Q202203-202303

BLACK,TRIM2#,4#

main58804-07180-C0iAXXA50,AXXH50..B,G,Q202203-202303

B GRADE PACKAGE(WITH BACK MONITOR),BLACK,TRIM2#,4#

main58804-07180-C0iAXXA50,AXXH50..B,G,Q202203-202303

WIRELESS CHARGER-WITH,BLACK,TRIM2#,4#

main58804-07190-C0iAXXH50..E;MXXA50..G202203-202407

BLACK,TRIM2#,4#

main58804-07190-C0iAXXA50,MXXA50..E202203-202407

BLACK,TRIM2#

main58804-YK040-C1iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-07110iAXXA50,AXXH50,MXXA50202203-202407

main58805-07150-C1iMXXA50..E201903-202203

BLACK,TRIM2#,4#

main58805-07150-C1iAXXA50;MXXA50..B,G201903-202203

BLACK,TRIM2#

58806APOCKET SUB-ASSY, CONSOLE BOX

main58806-07030-C1iMXXA50..E201903-202203

BLACK,TRIM2#

main58806-07030-C1iMXXA50..E201903-202203

BLACK,TRIM2#,4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58280-07030-C1iMXXA50..E201903-202407

BLACK,TRIM2#

main58280-07030-C1iMXXA50..E201903-202407

BLACK,TRIM2#,4#

main58280-07030-C1iMXXA50..B,E;AXXH52,MXXH50202407

BLACK,TRIM1#,2#,4#

58811DCLIP(FOR CONSOLE BOX)

main90467-13082-A0iAXXH50..E201903-202407

MELLOW WHITE

sub90467-13082

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-07080-C2iMXXA50;AXXA50,AXXH50..B,E201903-202008

BLACK,TRIM2#

main58831-07080-E3iAXXA50..E;AXXH50..B;MXXA50..B,G201903-202008

NEUTRAL BEIGE,TRIM4#

main58831-07081-C2iMXXA50..G;AXXH50..B,E202008-202407

BLACK,TRIM2#

main58831-07081-C2iAXXA50..B202203-202303

BLACK,TRIM20

main58831-07081-C3iAXXA50..B202203-202303

BLACK/IVORY,TRIM21

main58831-07081-E3iAXXH50..B202008-202407

NEUTRAL BEIGE,TRIM4#

main58831-07090-C2iAXXA50,AXXH50..G,Q201903-202008

BLACK,TRIM2#

main58831-07090-E4iAXXA50,AXXH50..G,Q201903-202008

NEUTRAL BEIGE,TRIM40

main58831-07090-E5iAXXA50,AXXH50..G,Q201903-202008

OCHER,TRIM43

main58831-07091-C2iAXXA50..G202008-202203

BLACK,TRIM2#

main58831-07091-E4iAXXA50,AXXH50..G,Q202008-202203

NEUTRAL BEIGE,TRIM40

main58831-07091-E5iAXXA50..G202008-202203

OCHER,TRIM43

main58831-07100-C0iAXXA50..G202203-202303

BLACK/IVORY,TRIM21

main58831-07100-C1iAXXA50..G202203-202303

BLACK/BLACK,TRIM2#

main58831-07100-C1iAXXA50..G202203-202303

BLACK/BLACK,TRIM20

main58831-07100-E0iAXXA50,AXXH50..G,Q202203-202303

NEUTRAL BEIGE,TRIM40

main58831-07100-E1iAXXA50,AXXH50..G,Q202203-202303

OCHER,TRIM43

main58831-YK030-B1iMXXA50..B,E;AXXH52,MXXH50202407

COOL GRAY;HAZEL,TRIM1#

main58831-YK030-C0iMXXA50,MXXH50..B,E202407

BLACK,TRIM20

main58831-YK030-C1iAXXH52,MXXH50..G,Q202407

SADDLE TAN NO.044;BLACK,TRIM20

main58831-YK030-C1iAXXH52,MXXH50..G,Q202407

SADDLE TAN NO.044;BLACK,TRIM2#

main58831-YK030-E1iMXXA50..B,E;AXXH52,MXXH50202407

OCHER;SHELL,TRIM4#

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-07150-C0iAXXA50;MXXA50..B,G201903-202203

BLACK,TRIM2#,4#

main58833-07150-C0iMXXA50..E202008-202203

BLACK,TRIM2#

main58833-07160-C0iAXXA50,AXXH50,MXXA50..B,G,Q202203-202407

BLACK,TRIM2#,4#

main58833-07160-C0iAXXA50,AXXH50,MXXA50..B,G,Q202203-202407

BLACK,TRIM2#

main58833-YK030iMXXA50..B,E;AXXH52,MXXH50202407

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-07100-C0iAXXH50,MXXA50..E201903-202203

BLACK,TRIM2#,4#

main58834-07100-C0iMXXA50..E202008-202203

BLACK,TRIM2#

main58834-07110-C0iAXXA50,AXXH50,MXXA50..B,G,Q202203-202407

BLACK,TRIM2#,4#

main58834-07110-C0iAXXA50,AXXH50,MXXA50..B,G,Q202203-202407

BLACK,TRIM2#

main58834-YK020iMXXA50..B,E;AXXH52,MXXH50202407

58835CORNAMENT, CONSOLE BOX

main58835-07120iMXXA50;AXXA50..E201903-202407

main58835-07150iAXXH50..G,Q201903-202303

58835DORNAMENT, CONSOLE BOX, NO.2

main58835-07130iMXXA50..B,E201903-202407

main58835-07160iAXXA50,AXXH50..G,Q201903-202303

58916MAT, BOX BOTTOM

main58916-07030iAXXA50,MXXA50201903-202407

58917MAT, BOX BOTTOM, NO.2

main58917-07030iAXXA50,MXXA50201903-202407

8121

9018305094

main90183-05094

9046705171

main90467-05171

9046705172

main90467-05172

90467C0087

main90467-C0087

90467C0088

main90467-C0088

9046808048

main90468-08048

9356014010

main93560-14010

23 parts on this diagram · 4 diagrams in section
