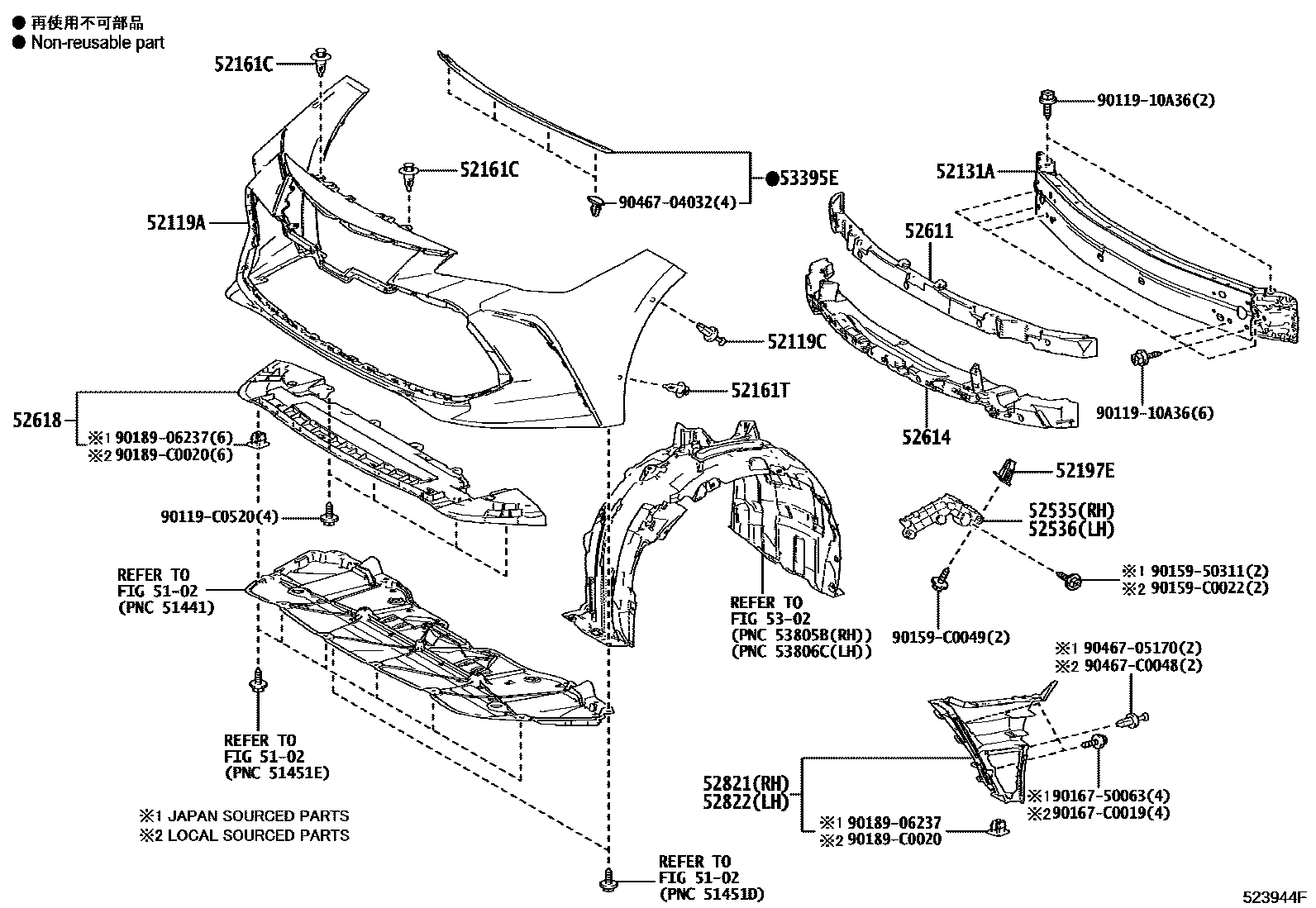

FRONT BUMPER & BUMPER STAY

5102

52119ACOVER, FRONT BUMPER

main52119-07917iAXXH50..E202106-202202

PAINT REQ.

52119CCLIP, FRONT BUMPER COVER

main90467-05090-B1×2iAXXA50,MXXA50;AXXH50..B,G,Q202106-202303

DK.GRAY,(J)

main90467-C0018-B0×2iMXXA50..B,E;AXXH52,MXXH50202407

DK.GRAY,(L)

52131AREINFORCEMENT, FRONT BUMPER

main52021-07060iAXXA50,MXXA50202106-202202

main52021-07070iAXXH50202107-202202

main52021-07080iAXXA50,MXXA50202203-202303

main52021-07090iAXXH50202304

52161CPIECE, FRONT BUMPER

main52161-02040×2iAXXA50,MXXA50201903-202106

(L)

main52161-16010×2iMXXA50..B,E202304-202407

(J)

sub52161-0K040

52161TPIECE, FRONT BUMPER

main52161-02040×2iAXXA50,MXXA50201903-202106

(L)

main52161-16010×2iMXXA50..G;AXXA50,AXXH50202304

(J)

sub52161-0K040

52197EBRACKET, FRONT BUMPER SEAL

main52197-02050×2iAXXH50201909-202107

(L)

main52197-22020×2iAXXH50..E202106-202202

(J)

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-07020iAXXH50201903-202107

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-07020iAXXA50,MXXA50201903-202106

52611ABSORBER, FRONT BUMPER ENERGY

main52611-07080iAXXA50,MXXA50201903-202106

main52611-07100iAXXA50,AXXH50,MXXA50202203-202303

main52611-YK040iMXXA50..B,E;AXXH52,MXXH50202407

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-07020iAXXA50,AXXH50201903-201909

main52614-07021iAXXA50,MXXA50201910-202106

52618ABSORBER, FRONT BUMPER, LOWER

main52618-07020iAXXH50..E202106-202202

52821DUCT, AIR INTAKE, RH

main52821-07020iAXXA50,MXXA50;AXXH50..B,G,Q202106-202203

main52821-07030iMXXA50..B,E;AXXH52,MXXH50202407

MARK 52821-07030

52822DUCT, AIR INTAKE, LH

main52822-07020iAXXA50,MXXA50;AXXH50..B,G,Q202106-202203

main52822-07030iMXXA50..B,E202304-202407

5302

53395ESEAL, HOOD TO FRONT END PANEL

main53395-07040iAXXA50,MXXA50201903-202106

9011910A36

main90119-10A36

90119C0520

main90119-C0520

9015950311

main90159-50311

90159C0022

main90159-C0022

90159C0049

main90159-C0049

9016750063

main90167-50063

90167C0019

main90167-C0019

9018906237

main90189-06237

90189C0020

main90189-C0020

9046704032

main90467-04032

9046705170

main90467-05170

90467C0048

main90467-C0048

28 parts on this diagram · 1 diagram in section
