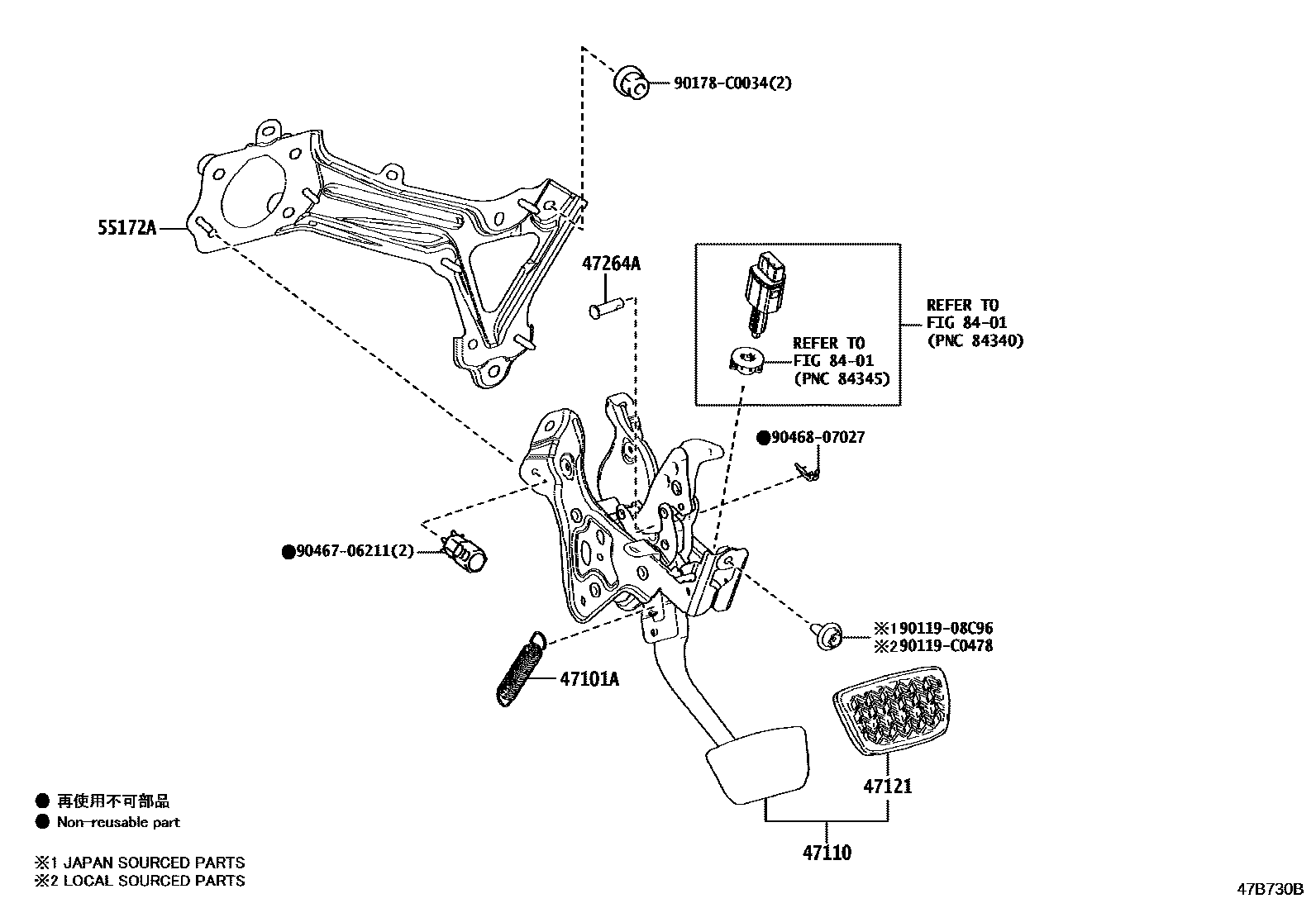

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXXA50,MXXA50201903-202106

main90507-C0005iAXXH52,MXXH50202407

47110SUPPORT ASSY, BRAKE PEDAL

main47110-07070iMXXA50..B,E202304-202407

main47110-07080iAXXH50201903-202107

main47110-07090iMXXA50..B,E202407

main47110-07100iAXXH52,MXXH50202407

47121PAD, BRAKE PEDAL

main47121-07020iAXXH50..E202106-202202

main47121-0R050iMXXA50..B,E;AXXH52,MXXH50202407

47264APIN(FOR PUSH ROD)

main90240-08078iAXXA50,MXXA50202101-202106

main90240-08082iAXXA50,AXXH50,MXXA50201903-202012

55172ABASE, BRAKE PEDAL SUPPORT

main55172-07030iAXXA50,MXXA50201903-202106

8401

9011908C96

main90119-08C96

90119C0478

main90119-C0478

90178C0034

main90178-C0034

9046706211

main90467-06211

9046807027

main90468-07027

11 parts on this diagram · 2 diagrams in section
