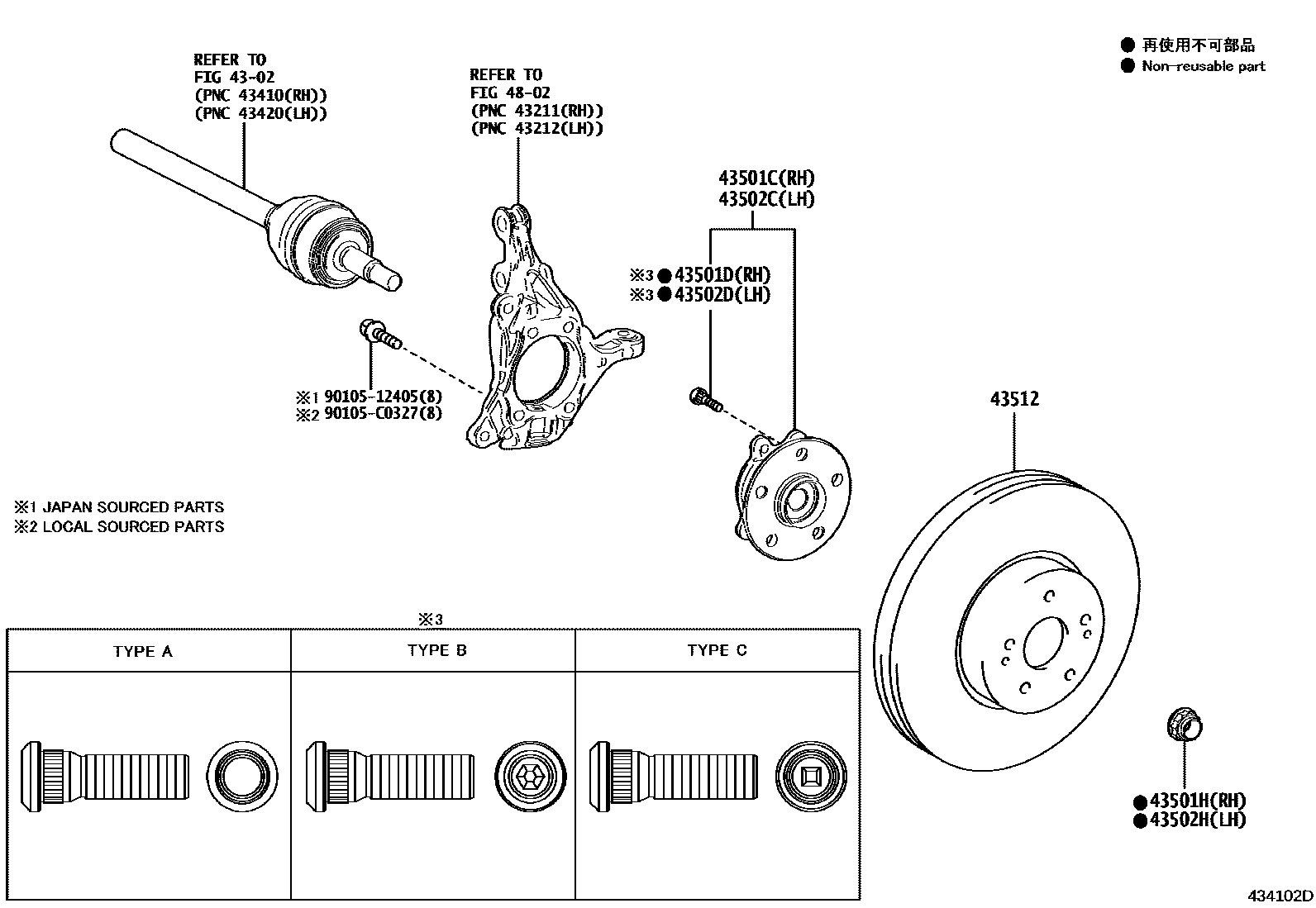

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-07010iMXXA50..B,E202304-202407

main43550-07020iAXXH50201903-202107

main43550-07030iMXXA50..B,E;AXXH52,MXXH50202407

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iAXXA50,MXXA50202106-202303

TYPE A:REFER ILLUST.

main90942-02081×5iAXXH50..E202106-202202

TYPE B:REFER ILLUST.

main90942-02082×5iAXXH50..B,G,Q202106-202203

TYPE C:REFER ILLUST.

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAXXH50..E202106-202202

(J)

main90177-C0004iMXXA50..B,E202304-202407

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-07010iMXXA50..B,E202304-202407

main43550-07020iAXXH50..B,G,Q202107-202203

main43550-07030iMXXA50..B,E;AXXH52,MXXH50202407

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iAXXH50..E202106-202202

TYPE A:REFER ILLUST.

main90942-02081×5iAXXA50,MXXA50202106-202303

TYPE B:REFER ILLUST.

main90942-02082×5iAXXH50..B,G,Q202106-202203

TYPE C:REFER ILLUST.

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAXXA50,MXXA50201903-202106

(J)

main90177-C0004iMXXA50..G;AXXA50,AXXH50202304

(L)

43512DISC, FRONT

main43512-F4030×2iAXXH50..E202106-202202

4802

9010512405

main90105-12405

90105C0327

main90105-C0327

11 parts on this diagram · 1 diagram in section
