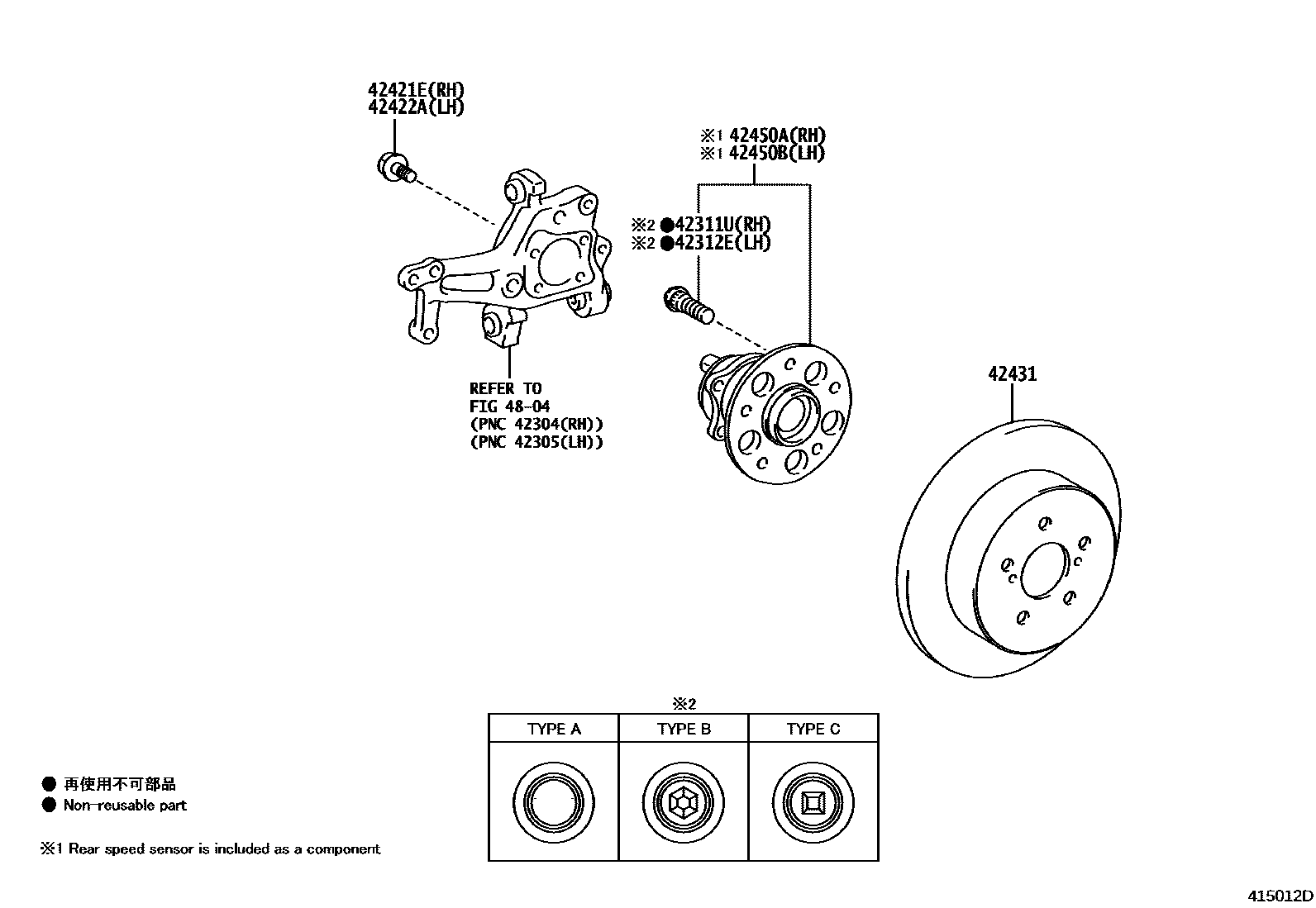

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iMXXA50..B,E;AXXH52,MXXH50202407

TYPE A:REFER ILLUST.

main90942-02081×5iMXXA50..B,E202304-202407

TYPE B:REFER ILLUST.

main90942-02082×5iMXXA50..G;AXXA50,AXXH50202304

TYPE C:REFER ILLUST.

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iAXXA50,MXXA50201903-202106

TYPE A:REFER ILLUST.

main90942-02081×5iAXXH50..E202106-202202

TYPE B:REFER ILLUST.

main90942-02082×5iAXXH50..E202106-202202

TYPE C:REFER ILLUST.

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-C0328×4iAXXH50201903-202107

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-C0328×4iAXXA50,MXXA50201903-202106

42431DISC, REAR

main42431-F4010×2iAXXA50,MXXA50;AXXH50..B,G,Q202106-202303

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-07020iMXXA50..B,E;AXXH52,MXXH50202407

main42450-F4020iAXXH50201903-202107

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-07020iMXXA50..B,E;AXXH52,MXXH50202407

main42450-F4020iAXXH50201903-202107

4804

8 parts on this diagram · 1 diagram in section
