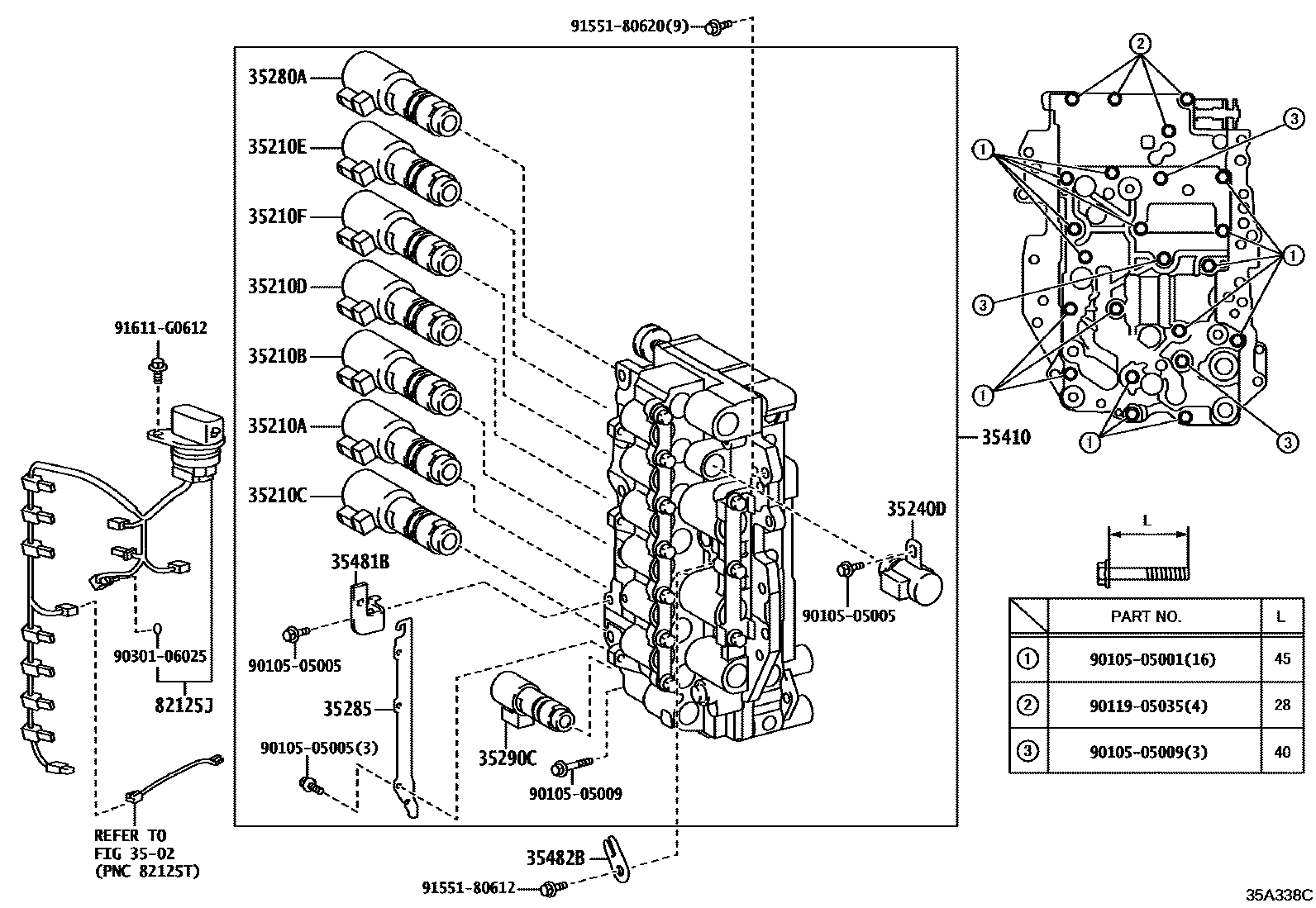

VALVE BODY & OIL STRAINER (ATM)

3502

35210AVALVE, SOLENOID(SL1)

main35210-48020iAXXA50201903-202106

35210BVALVE, SOLENOID(SL3)

main35210-48020iAXXA50201903-202106

35210CVALVE, SOLENOID(SL2)

main35210-48020iAXXA50201903-202106

35210DVALVE, SOLENOID(SL4)

main35210-48020iAXXA50201903-202106

35210EVALVE, SOLENOID(SL5)

main35210-48020iAXXA50201903-202106

35210FVALVE, SOLENOID(SL6)

main35210-48020iAXXA50201903-202106

35240DVALVE, SOLENOID(SL)

main35240-48020iAXXA50201903-202106

35280AVALVE, SOLENOID(SLU)

main35280-48030iAXXA50201903-202106

35285PLATE, SOLENOID LOCK

main35285-48030iAXXA50201903-202106

35290CVALVE, SOLENOID(SLT)

main35290-48030iAXXA50201903-202106

35410BODY ASSY, TRANSMISSION VALVE

main35410-48100iAXXA50201903-202106

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-48040iAXXA50201903-202106

35482BCLAMP, TEMPERATURE SENSOR

main35482-73010iAXXA50201903-202106

82125JWIRE, TRANSMISSION

main82125-33211iAXXA50201903-202106

9010505001

main90105-05001

9010505005

main90105-05005

9010505009

main90105-05009

9011905035

main90119-05035

9030106025

main90301-06025

9155180612

main91551-80612

9155180620

main91551-80620

91611G0612

main91611-G0612

23 parts on this diagram · 1 diagram in section
