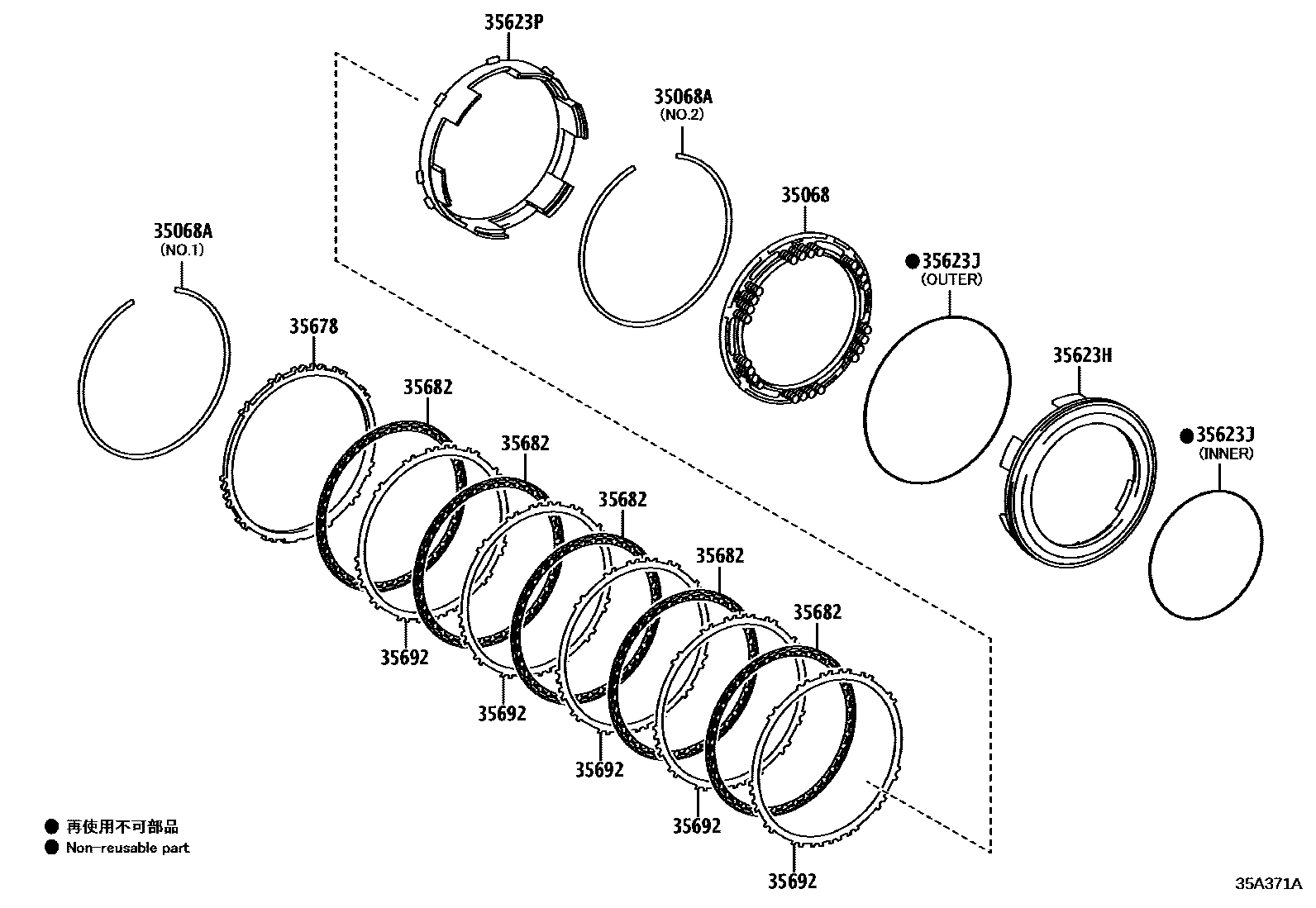

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-33040iAXXA50..E202106

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90521-99193iAXXA50202304

NO.1:REFER ILLUST.

main90521-99198iAXXA50..E202106

NO.2:REFER ILLUST.

35623HPISTON, 1ST & REVERSE BRAKE

main35623-33101iAXXA50..E202106

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99220iAXXA50201903-202106

INNER

main90301-99231iAXXA50201903-202106

OUTER

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35624-33050iAXXA50..E202106

35678FLANGE, BRAKE(FOR 2ND BRAKE)

main35678-33280iAXXA50..E202106

T=5.0,MARK 0

main35678-33290iAXXA50..E202106

T=5.1,MARK 1

main35678-33300iAXXA50201903-202106

T=5.2,MARK 2

main35678-33310iAXXA50202304

T=5.3,MARK 3

main35678-33320iAXXA50201903-202106

T=5.4,MARK 4

main35678-33330iAXXA50201903-202106

T=5.5,MARK 5

main35678-33340iAXXA50..E202106

T=5.6,MARK 6

35682DISC, BRAKE(FOR 2ND BRAKE)

main35682-33040×5iAXXA50201903-202106

35692PLATE, BRAKE(FOR 2ND BRAKE)

main35692-33040×5iAXXA50201903-202106

8 parts on this diagram · 1 diagram in section
