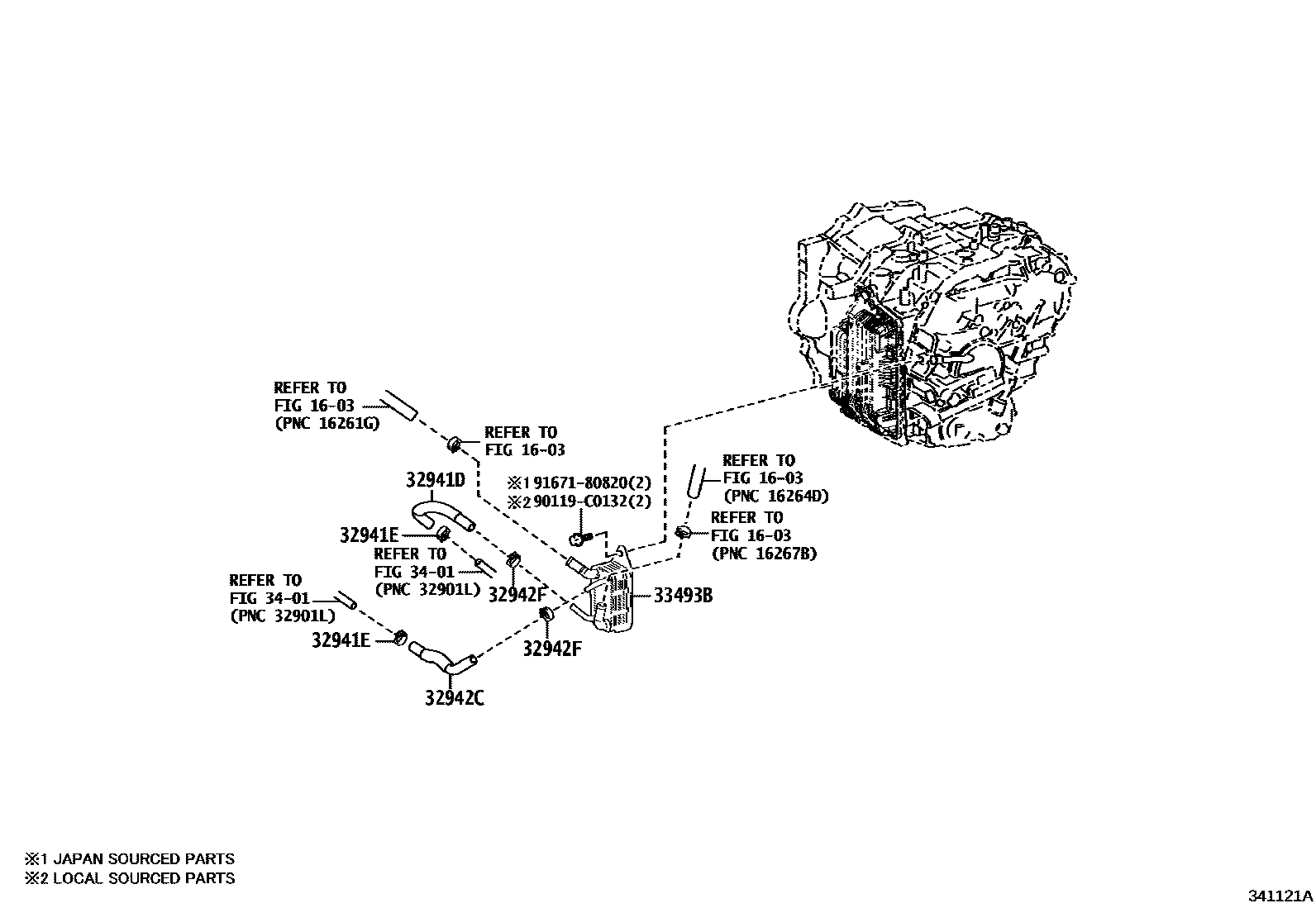

OIL COOLER & TUBE(CVT)

1603

32941DHOSE, OIL COOLER INLET

main32941-07050iMXXA50..B,E202304-202407

32941ECLIP(FOR OIL COOLER TUBE)

main90466-16004×2iMXXA50202106-202303

(J)

main90466-C0024×2iMXXA50..B,E202304-202407

(L)

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-07080iMXXA50..G202304

32942FCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iMXXA50201910-202106

(J)

main90466-C0024×2iMXXA50..B,E202304-202407

(L)

33493BCOOLER, OIL

main33493-07020iMXXA50201910-202106

main33493-0E030iMXXA50..B,E202407

main33493-0R010iMXXA50202106-202204

3401

90119C0132

main90119-C0132

9167180820

main91671-80820

9 parts on this diagram · 1 diagram in section
