HEATING & AIR CONDITIONING - COMPRESSOR

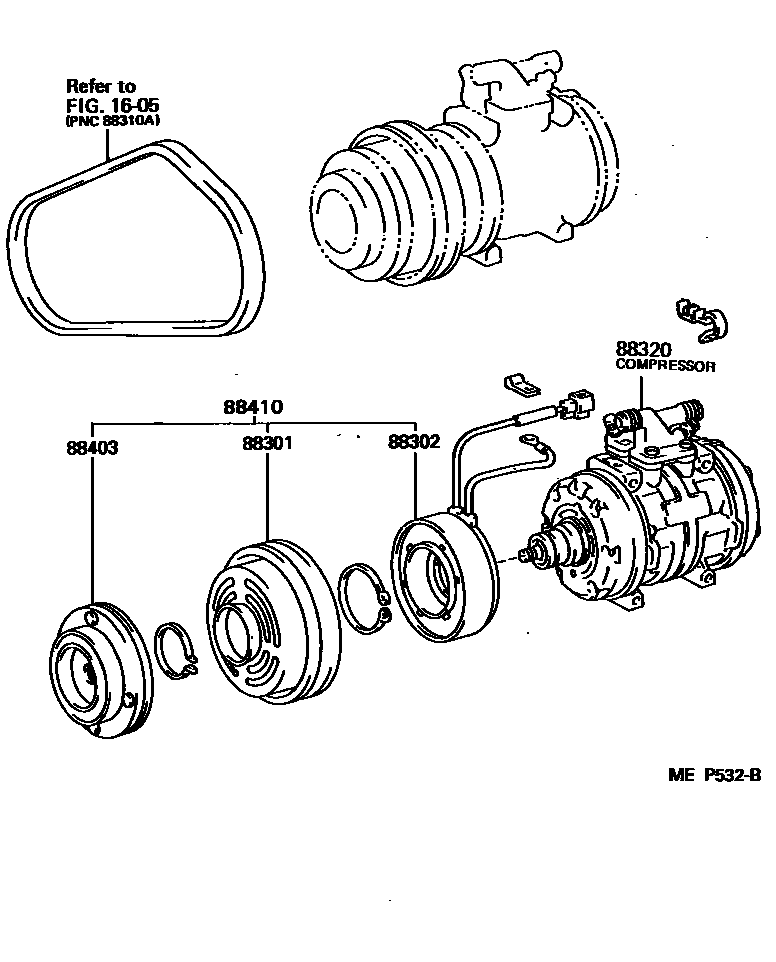

0001 1MAKER OPTION 0002 1 0003 1 0004 1

1605V-BELT

→ Go to FIG 16-05

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14020iRX7#..GEN,SA198810-199302

main88412-22070iRX72..V198810-199302

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22200iRX7#..GEN,SA198810-199302

main88411-22220iRX72..V198810-199302

88320COMPRESSOR ASSY, COOLER

main88320-22410iRX7#..GEN,SA198810-199302

main88320-22561iRX72..V198810-199302

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iRX7#..GEN,SA198810-199302

main88403-16011iRX72..V198810-199302

88410CLUTCH ASSY, MAGNET

main88410-22320iRX7#..GEN,SA198810-199302

main88410-22340iRX72..V199008-199302

6 parts on this diagram · 4 diagrams in section
