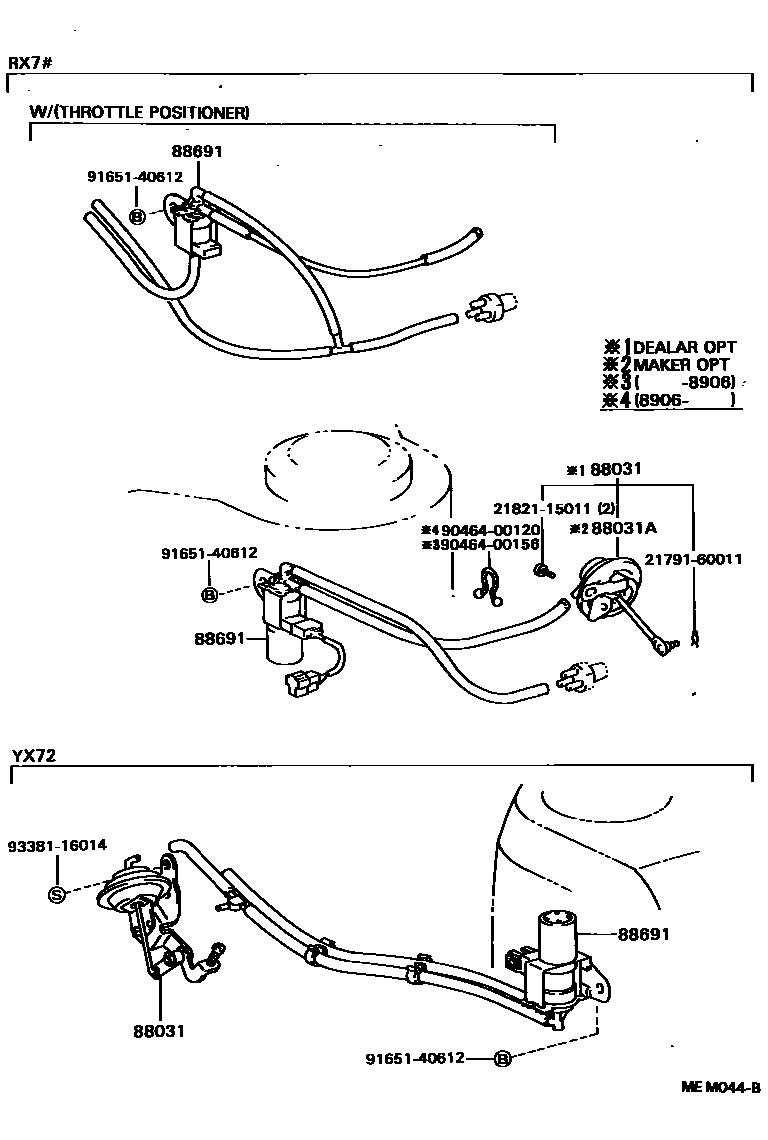

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0003 1 0004 1 0005 1

88031ACTUATOR SET, IDLE-UP

main88031-20050iRX72..RHD..GEN198810-199302

main88031-28010iYX72198812-199205

88031ADIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR

main21609-37051iRX7#..RHD198906-199302

main88606-22070iGX71198812-199205

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-22360iRX72..RHD..GEN198810-199008

W/O(T/P)

main88690-22390iYX72198812-199205

main88690-22490iGX71198812-199205

main88690-22560iRX72..RHD..GEN199008-199302

W(T/P)

2179160011RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-60011

2182115011SCREW, 2ND THROTTLE VALVE SET

main21821-15011

9046400120

main90464-00120

9046400156

main90464-00156

9165140612

main91651-40612

9338116014

main93381-16014

9 parts on this diagram · 4 diagrams in section
