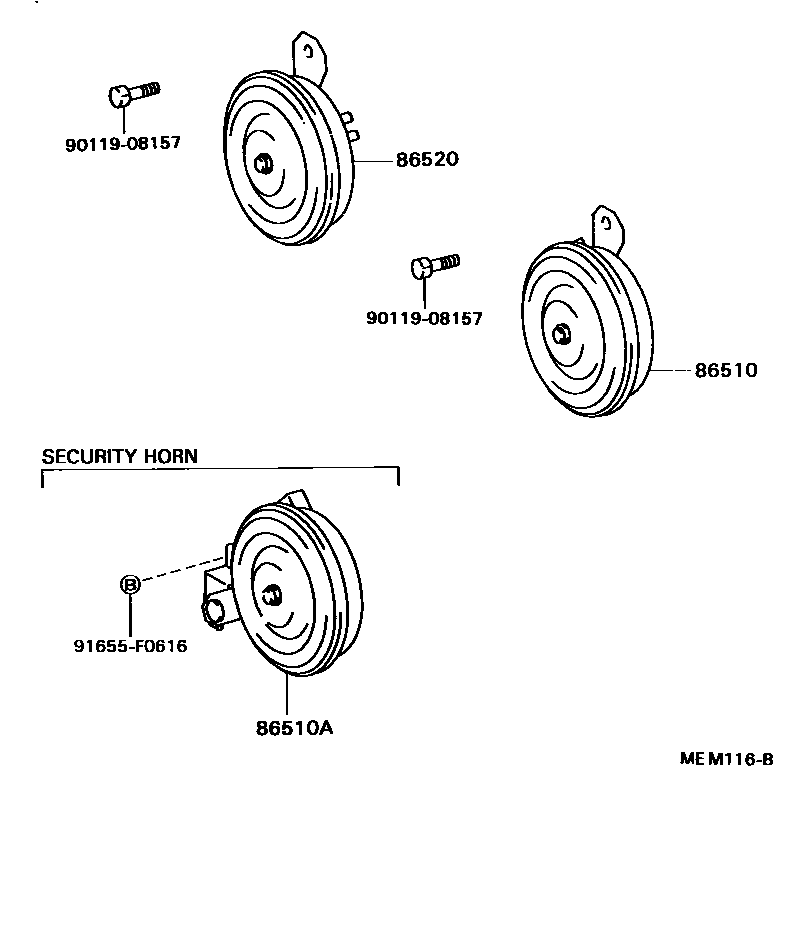

HORN

86510HORN ASSY, HIGH PITCHED

main86510-22191iRX72..GEN,V198810-199302

main86510-22200iRX72..LHD..GEN198810-199302

CHINA SPEC

main86510-32011iGX71,MX75,RX7#,YX72..SA198812-199205

86510AHORN ASSY, SECURITY

main86510-22220iGX71,MX75..GLX198812-199205

86520HORN ASSY, LOW PITCHED

main86520-22191iRX72..GEN,V198810-199302

main86520-22200iRX72..LHD..GEN198810-199302

CHINA SPEC

main86520-32011iGX71,MX75,RX7#,YX72..SA198812-199205

9011908157

main90119-08157

91655F0616

main91655-F0616

5 parts on this diagram · 1 diagram in section
