DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-22440iRX72..GL198810-199302

main85450-22480iGX71,MX75..GLX198812-199205

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-22450iRX72..GL198810-199302

main85450-22490iGX71,MX75..GLX198812-199205

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85450-22421iRX72..GL198810-199302

main85450-22501iGX71,MX75..GLX198812-199205

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85450-22431iRX72..GL198810-199302

main85450-22511iGX71,MX75..GLX198812-199205

85490SOLENOID ASSY, DOOR CONTROL BACK

main85450-22560iRX72..GL;RX72..SA198810-199302

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-22180iRX72..GL;GX71,MX75..GLX198810-199302

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-22190iRX72..GL;GX71,MX75..GLX198810-199302

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-22170iRX72..GL;GX71,MX75..GLX198810-199302

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85720-22180iRX72..GL;GX71,MX75..GLX198810-199302

9015960329

main90159-60329

9165140610

main91651-40610

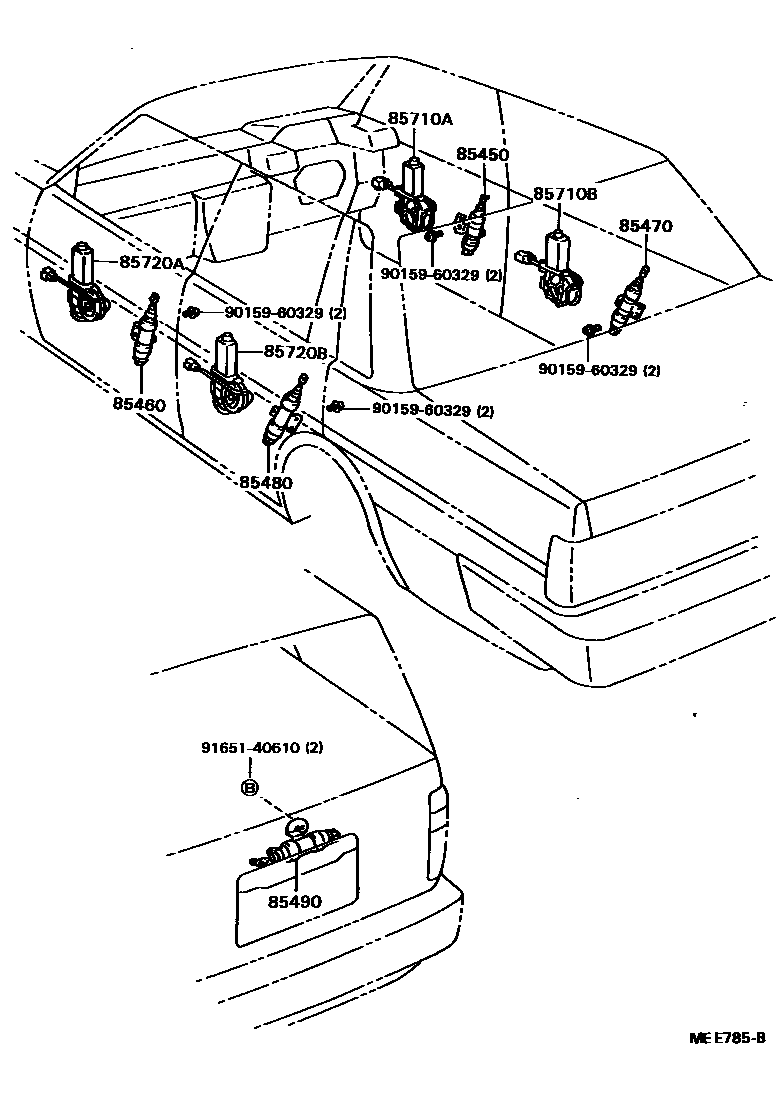

11 parts on this diagram · 1 diagram in section
