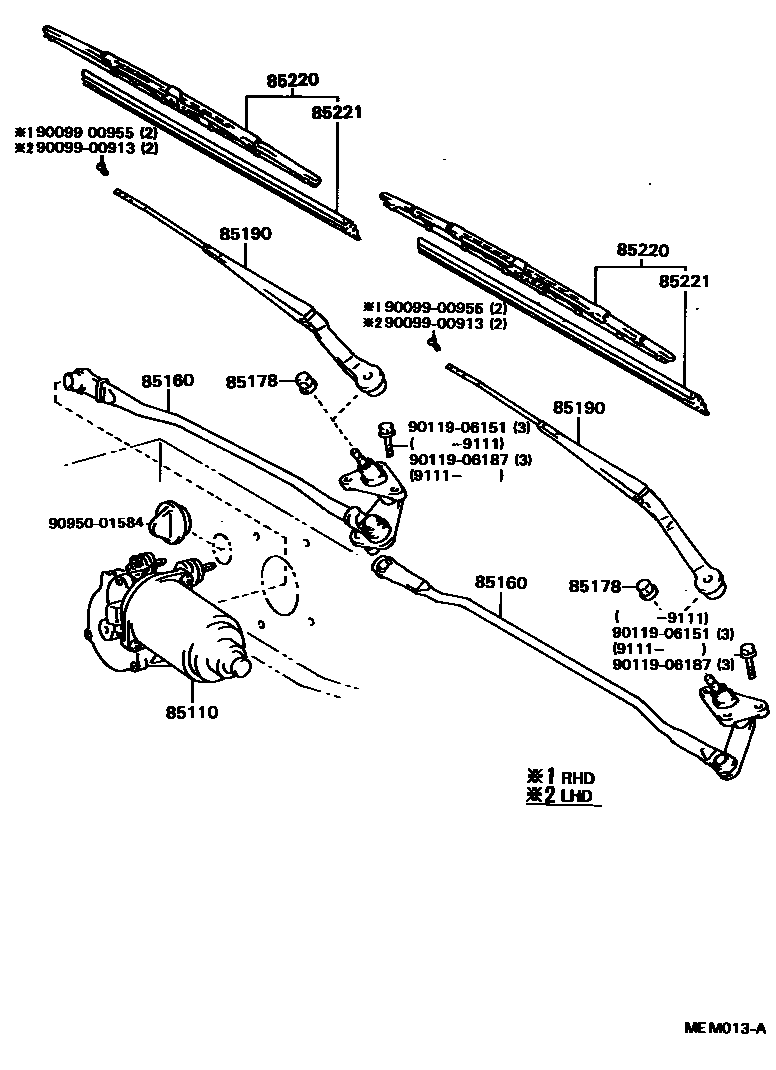

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-22402iGX71,MX75,RX7#,YX72..RHD198810-199302

main85110-91603iRX72..LHD198810-199302

85160LINK ASSY, WINDSHIELD WIPER

main85160-22241iGX71,MX75,RX7#,YX72..RHD198810-199302

LH

main85160-22250iGX71,MX75,RX7#,YX72..RHD198810-199302

RH

main85160-22290iRX72..LHD198810-199008

RH

main85160-22300iRX72..LHD198810-199008

LH

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08040×2iGX71,MX75,RX7#,YX72198810-199302

85190ARM ASSY, WINDSHIELD WIPER

main85190-22502iGX71,MX75,RX7#,YX72..RHD198810-199008

RH

main85190-91612iRX72..LHD198810-199008

RH

main85210-22182iGX71,MX75,RX7#,YX72..RHD198810-199008

LH

main85210-91604iRX72..LHD198810-199008

LH

main85211-23030iRX72..LHD199008-199302

RH

main85211-23040iRX72..RHD..GEN199008-199302

RH

main85221-23040iRX72..LHD199008-199302

LH

main85221-23050iRX72..RHD..GEN199008-199302

LH

85220BLADE ASSY, WINDSHIELD WIPER

main85212-23030iRX72..LHD199008-199302

RH

main85212-23040iRX72..RHD..GEN199008-199302

RH

main85220-1A060iRX72..LHD198810-199008

LH

main85220-1A070iGX71,MX75,RX7#,YX72..RHD198810-199008

LH

main85220-3A060iRX72..LHD198810-199008

RH

main85220-3A070iGX71,MX75,RX7#,YX72..SA199008-199205

RH

main85222-23050iRX72..LHD199008-199302

LH

main85222-23060iRX72..RHD..GEN199008-199302

LH

85221BLADE, WINDSHIELD WIPER

main85221-22110iGX71,MX75,RX7#,YX72..RHD198810-199302

RH

main85221-22120iGX71,MX75,RX7#,YX72..RHD198810-199302

LH

main85221-30100iRX72..LHD198810-199008

RH

main85221-32060iRX72..LHD198810-199008

LH

9009900913

main90099-00913

9009900955

main90099-00955

9011906151

main90119-06151

9011906187

main90119-06187

9095001584

main90950-01584

11 parts on this diagram · 1 diagram in section
