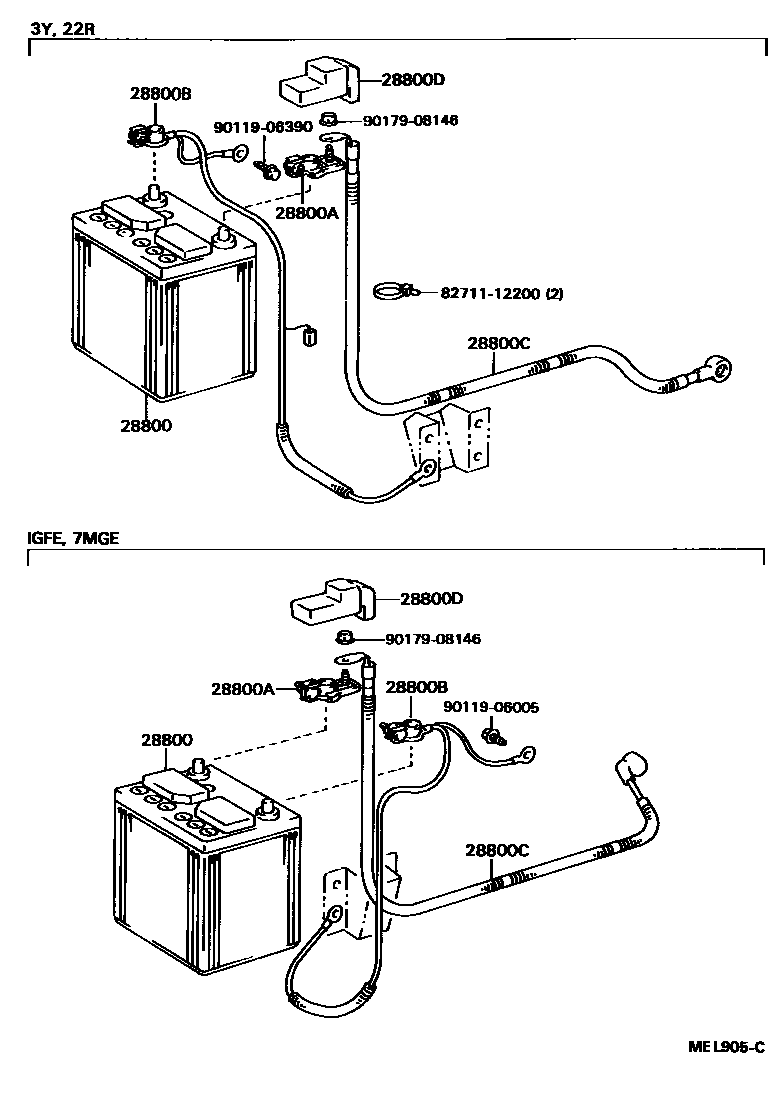

BATTERY & BATTERY CABLE

28800BATTERY

main28800-14010i22R..RX72..GEN,V198810-198902

55D23R

main28800-15050i1GFE,7MGE..GX71,MX75198812-199101

55D23L

main28800-37011i22R..RX72..5F..(GEN,V)198810-199302

34B19R

main28800-42030i1GFE,7MGE..GX71,MX75199101-199205

55D23L

main28800-44021i22R..RX72..4FC198810-199302

46B24R

28800ATERMINAL, BATTERY POSITIVE

main90982-05028i22R..RX72..GEN,V198810-199302

main90982-05030i22R,3Y..RX7#,YX72..SA198812-199205

28800BCABLE, BATTERY TO GROUND

main90982-02264i1GFE,7MGE..GX71,MX75198812-199205

main90982-02265i22R..RX72..GEN,V198810-199302

main90982-02266i22R,3Y..RX7#,YX72..SA198812-199205

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-22030i1GFE,7MGE..GX71,MX75198812-199205

main82122-22070i22R,3Y..RX7#,YX72198810-199302

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i22R,1GFE,7MGE,3Y..GX71,MX75,RX7#,YX72198810-199302

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011906005

main90119-06005

9011906390

main90119-06390

9017908146

main90179-08146

9 parts on this diagram · 1 diagram in section
