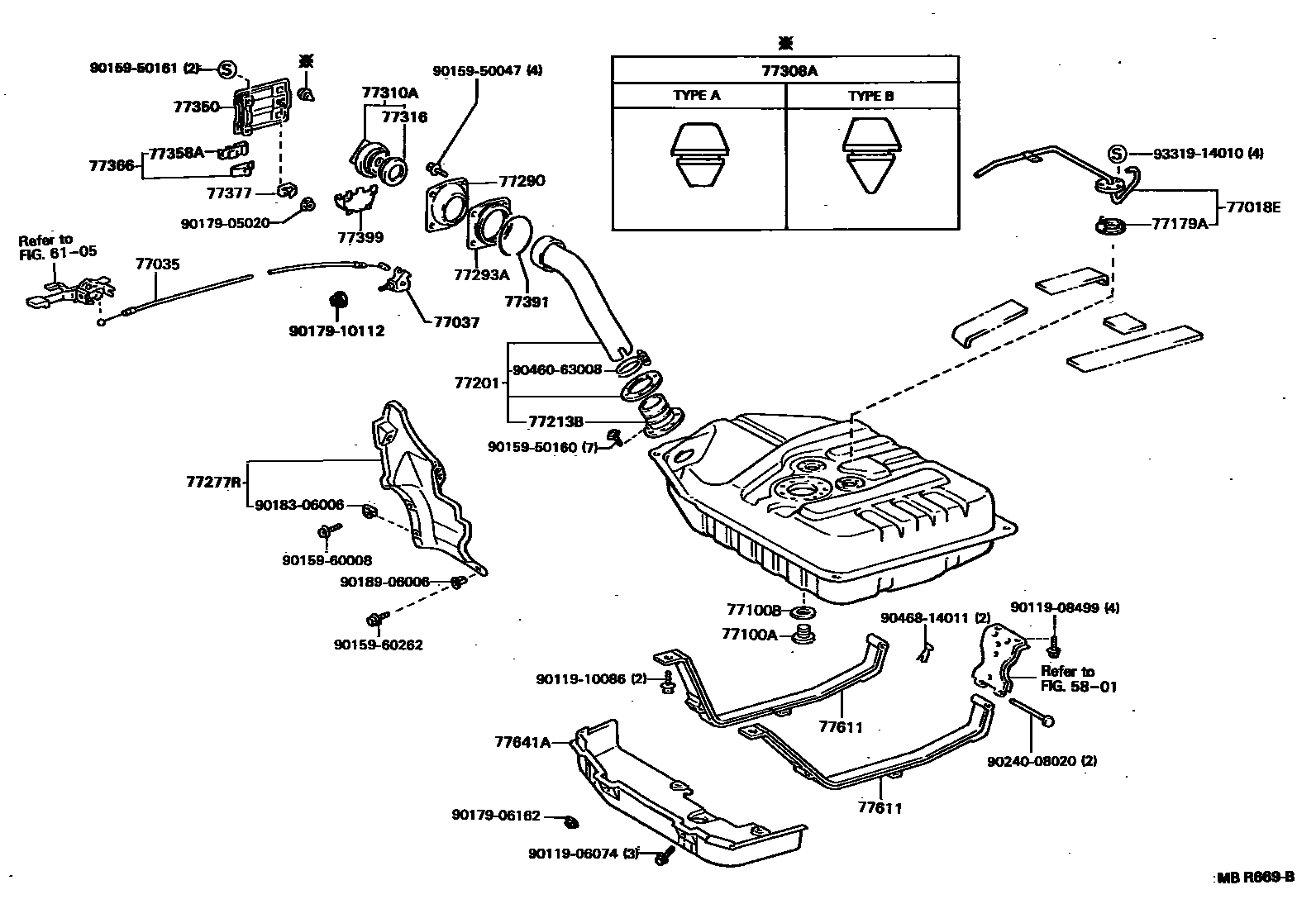

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

5801

6105

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-22030iGX71,MX75,RX73,YX72198812-199205

main77018-23020iRX72198810-199302

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-22130iGX71,MX75,RX7#,YX72..RHD198810-199201

sub77035-32070

main77035-22160iRX72..LHD198810-199302

main77035-32070iGX71,MX75,RX7#,YX72..SA198812-199302

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-14010iGX71,MX75,RX7#,YX72198810-199302

sub77037-90K00

77100TANK ASSY, FUEL

main77001-29186iRX72..GEN,SA198810-199302

main77001-29235iRX72..V198810-199302

77100APLUG(FOR FUEL TANK)

main90341-20004iGX71,MX75,RX7#,YX72198810-199302

77100BGASKET(FOR FUEL TANK)

main90430-20007iGX71,MX75,RX7#,YX72198810-199302

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-14030iGX71,MX75,RX7#,YX72198810-199302

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-22150iGX71,MX75,RX73,YX72198812-199205

sub77201-22180

main77201-23032iRX72198810-199205

main77201-23033iRX72..GEN,V199008-199302

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-14090iGX71,MX75,RX7#,YX72198810-199302

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-22050iGX71,MX75,RX73,YX72198812-199205

main77277-23010iRX72198810-199302

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-22020iGX71,MX75,RX7#,YX72..SA198810-199205

main77290-22050iRX72..GEN,V199008-199302

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-22020iGX71,MX75,RX7#,YX72198810-199302

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08009iGX71,MX75,RX7#,YX72..SA198810-199205

TYPE A

main90541-08013iGX71,MX75,RX7#,YX72198810-199205

TYPE B

sub90541-08009

77310ACAP ASSY, FUEL TANK

main77310-12100iGX71,MX75,RX7#,YX72198810-199205

main77310-16011iRX72..GEN,V199008-199302

sub77310-12140

77316GASKET, FUEL TANK CAP

main77316-12050iGX71,MX75,RX7#,YX72198810-199205

main77316-16010iRX72..GEN,V199008-199302

77350LID ASSY, FUEL FILLER OPENING

main77350-22080iGX71,MX75,RX7#,YX72198810-199302

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-24010iGX71,MX75,RX7#,YX72198810-199205

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iGX71,MX75,RX7#,YX72198810-199302

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iGX71,MX75,RX7#,YX72198810-199302

77391RING, FUEL INLET BOX

main77391-16010iGX71,MX75,RX7#,YX72198810-199302

77399HANGER, FUEL TANK CAP

main77399-22010iGX71,MX75,RX7#,YX72198810-199205

77611BAND, FUEL TANK

main77601-22090iGX71,MX75,RX73,YX72198812-199205

RH

main77601-23010iRX72198810-199302

RH

main77602-22110iGX71,MX75,RX73,YX72198812-199205

LH

main77602-23010iRX72198810-199302

LH

77641APROTECTOR, FUEL TANK, NO.1

main77641-22060iGX71,MX75,RX73,YX72198812-199205

main77641-23010iRX72198810-199302

9011906074

main90119-06074

9011908499

main90119-08499

9011910086

main90119-10086

9015950047

main90159-50047

9015950160

main90159-50160

9015950161

main90159-50161

9015960008

main90159-60008

9015960262

main90159-60262

9017905020

main90179-05020

9017906162

main90179-06162

9017910112

main90179-10112

9018306006

main90183-06006

9018906006

main90189-06006

9024008020

main90240-08020

9046063008

main90460-63008

9046814011

main90468-14011

9331914010

main93319-14010

42 parts on this diagram · 6 diagrams in section
