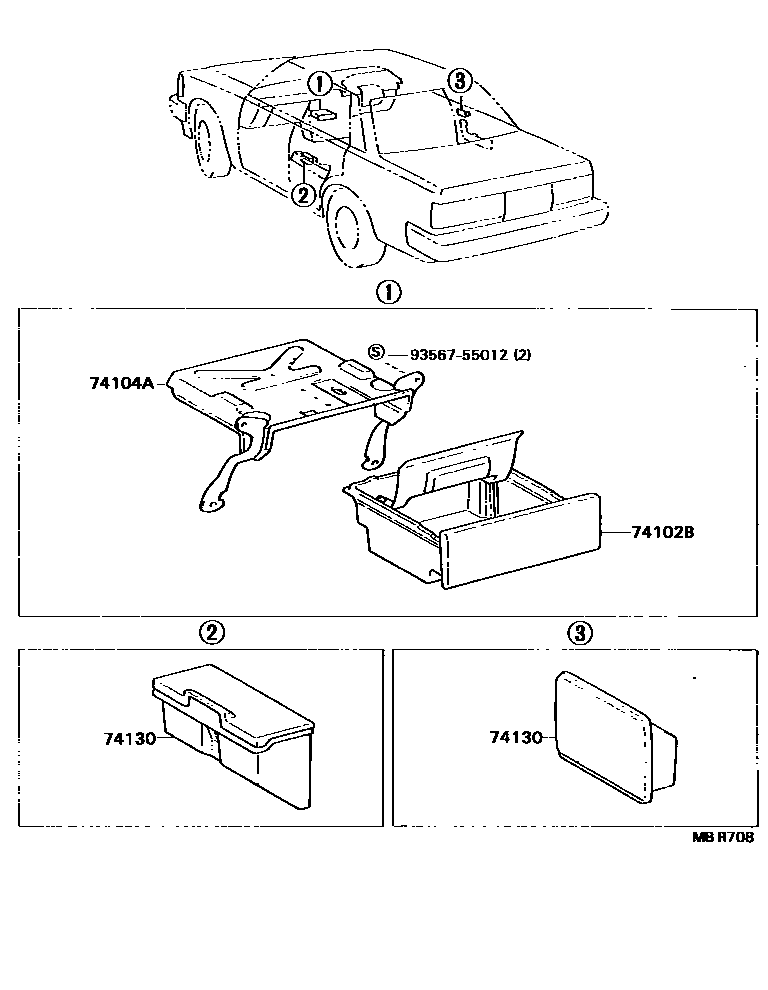

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-22070iGX71,MX75..GLX198812-199205

main74102-22090iMX75,RX7#,YX72..GL,STD,XL198810-199302

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-22100iGX71,MX75,RX7#,YX72198810-199302

74130RECEPTACLE ASSY, REAR ASH

main74130-22090-03×2iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199009

COOL GRAY,TRIM1#

main74130-22090-06×2iRX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL198810-199302

SABLE,TRIM4#

main74130-22090-13×2iRX72..4FC;RX72..XL..(GEN,V)199008-199009

MEDIUM GRAY,TRIM1#

main74130-22090-14×2iRX72..4FC;RX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

main74130-22090-22×2iRX72..4FC;RX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

main74130-22100×2iGX71,MX75..GLX198812-199205

main74130-91602×2iRX72..4FC; RX72..5F..GL198810-199302

W(POWER WINDOW)

9356755012

main93567-55012

4 parts on this diagram · 1 diagram in section
