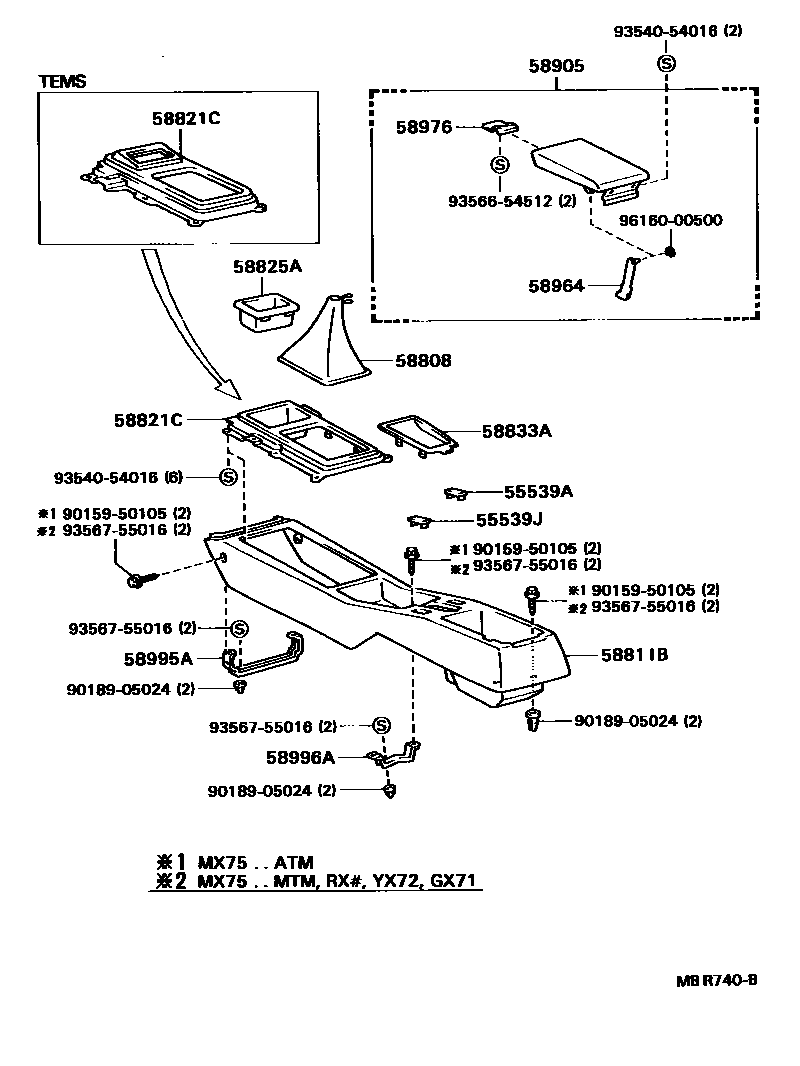

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-24010-10iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

main55539-24010-20iRX72..GEN,V198810-199008

BLUE,TRIM8#

main55539-24010-33iGX71,MX75,RX73,YX72198812-199009

COOL GRAY,TRIM1#

main55539-24010-43iRX72..GEN,V;GX71,MX75,RX73,YX72199008-199302

MEDIUM GRAY,TRIM1#

main55539-24010-56iRX72..GEN,V;GX71,MX75,RX73,YX72198810-199302

SABLE,TRIM4#

55539JCOVER, SPARE SWITCH HOLE

main55539-24010-10iRX72..XL;RX72..4FC198810-199302

NEW MAROON,TRIM3#

main55539-24010-20iRX72..XL;RX72..4FC198810-199008

BLUE,TRIM8#

main55539-24010-33iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

main55539-24010-43iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

main55539-24010-56iRX72..XL;RX72..4FC198810-199302

SABLE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-22070-03iGX71,MX75..5F198812-199009

COOL GRAY,TRIM1#

main58808-22070-06iGX71,MX75..5F198812-199205

SABLE,TRIM4#

main58808-22070-13iGX71,MX75..5F199009-199205

MEDIUM GRAY,TRIM1#

main58808-22080-03iRX7#,YX72..5F..SA198812-199009

COOL GRAY,TRIM1#

main58808-22080-06iRX7#,YX72..5F198810-199302

SABLE,TRIM4#

main58808-22080-12iRX72..5F..(GEN,V)198810-199302

NEW MAROON,TRIM3#

main58808-22080-13iRX7#,YX72..5F199008-199302

MEDIUM GRAY,TRIM1#

main58808-22080-14iRX72..5F..(GEN,V)198810-199008

BLUE,TRIM8#

58811BBOX, CONSOLE

main58801-22150-03iMX75..GL;GX71,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

main58801-22150-06iMX75..GL;GX71,RX7#,YX72198810-199302

SABLE,TRIM4#

main58801-22150-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

main58801-22150-13iMX75..GL;GX71,RX7#,YX72199008-199302

MEDIUM GRAY,TRIM1#

main58801-22150-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

main58801-22180-03iMX75..GLX198812-199009

COOL GRAY,TRIM1#

main58801-22180-06iMX75..GLX198812-199205

SABLE,TRIM4#

main58801-22180-13iMX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

58821CPANEL, CONSOLE, UPPER

main58821-22080-03iRX7#,YX72..5F..SA198812-199009

COOL GRAY,TRIM1#

main58821-22080-06iRX7#,YX72..5F198810-199302

SABLE,TRIM4#

main58821-22080-12iRX72..5F..(GEN,V)198810-199302

NEW MAROON,TRIM3#

main58821-22080-13iRX72..5F..(GEN,V)199008-199302

MEDIUM GRAY,TRIM1#

main58821-22080-14iRX72..5F..(GEN,V)198810-199008

BLUE,TRIM8#

main58821-22091-03iGX71;RX73..4FC198812-199009

COOL GRAY,TRIM1#

main58821-22091-06iGX71;RX7#..4FC198810-199302

SABLE,TRIM4#

main58821-22091-12iRX72..4FC198810-199302

NEW MAROON,TRIM3#

main58821-22091-13iRX72..4FC199008-199302

MEDIUM GRAY,TRIM1#

main58821-22091-14iRX72..4FC198810-199008

BLUE,TRIM8#

main58821-22100-03iMX75..GL198812-199009

COOL GRAY,TRIM1#

main58821-22100-06iMX75..GL198812-199205

SABLE,TRIM4#

main58821-22100-13iMX75..GL199009-199205

MEDIUM GRAY,TRIM1#

58825APOCKET, CONSOLE BOX

main58825-22010-03iMX75198812-199009

COOL GRAY,TRIM1#

main58825-22010-06iMX75198812-199205

SABLE,TRIM4#

main58825-22010-13iMX75199009-199205

MEDIUM GRAY,TRIM1#

58833ACOVER, CONSOLE, UPPER

main58833-22060-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

main58833-22060-06iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

main58833-22060-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

main58833-22060-13iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

main58833-22060-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-22050-03iMX75..GL;GX71,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

main58905-22050-06iMX75..GL;GX71,RX7#,YX72198810-199302

SABLE,TRIM4#

main58905-22050-13iMX75..GL;GX71,RX7#,YX72199008-199302

MEDIUM GRAY,TRIM1#

main58905-22050-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

main58905-22050-22iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

main58905-22120-03iMX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

main58905-22120-06iMX75..GLX198812-199205

SABLE,TRIM4#

main58905-22120-13iMX75..GLX198812-199009

COOL GRAY,TRIM1#

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-22050iMX75..GLX198812-199205

main58964-30030iMX75..GL;GX71,RX7#,YX72198810-199302

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iGX71,MX75,RX7#,YX72198810-199302

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-22010iGX71,MX75,RX7#,YX72198810-199302

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-22030iGX71,MX75,RX7#,YX72198810-199302

9015950105

main90159-50105

9018905024

main90189-05024

9354054016

main93540-54016

9356654512

main93566-54512

9356755016

main93567-55016

9616000500

main96160-00500

18 parts on this diagram · 1 diagram in section
