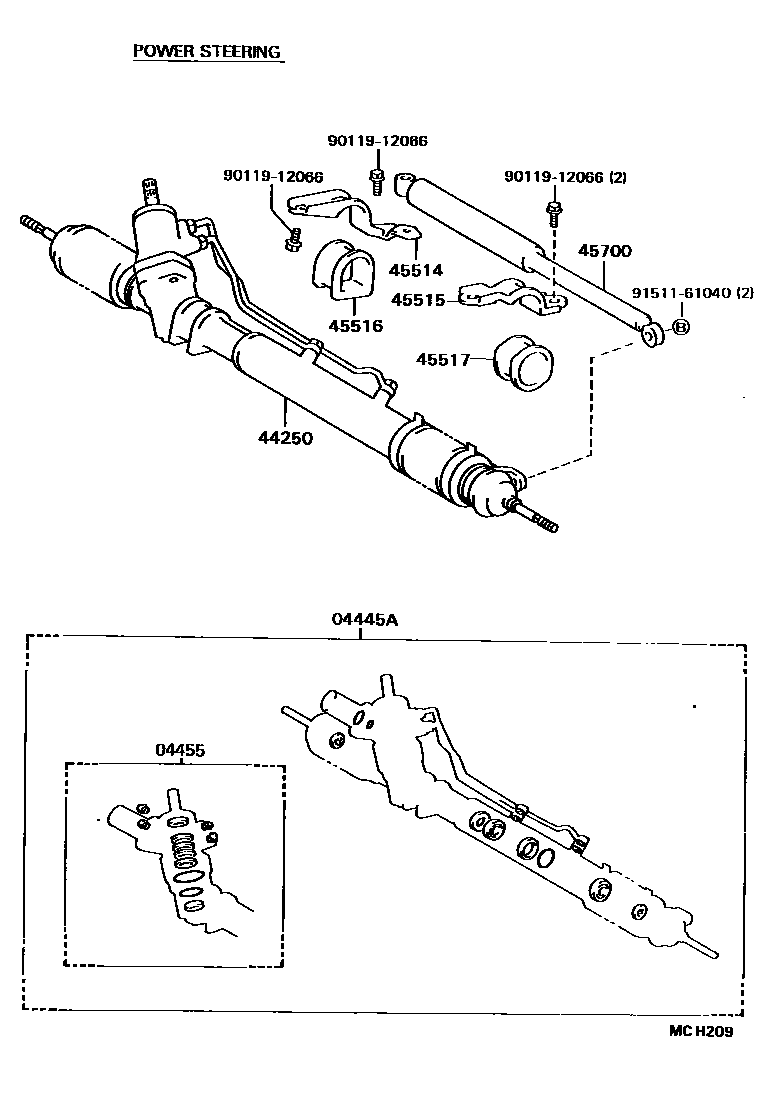

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-22061iRX7#198810-198906

main04445-22062iRX7#198906-199008

sub04445-22220

main04445-22071iGX71198812-199205

main04445-22081iMX75198812-199205

main04445-22150iRX72..GEN,V199008-199302

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-22040iRX7#..SA199008-199205

sub04455-20120

main04455-22050iGX71,MX75198812-199205

sub04455-35130

main04455-22070iRX72..GEN,V199008-199104

main04455-22071iRX72..GEN,V199104-199302

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-22011iRX7#..RHD198810-199003

main44250-22012iRX7#..RHD199003-199302

sub44250-22013

main44250-22031iRX72..LHD198810-199003

main44250-22032iRX72..LHD199003-199302

main44250-22051iGX71198812-199003

main44250-22052iGX71199003-199205

main44250-22071iMX75198812-199003

main44250-22072iMX75199003-199205

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-22030iYX72198812-199205

main45514-22040iGX71,MX75198812-199205

main45514-22050iRX7#..RHD198810-199302

main45514-22060iRX72..LHD198810-199302

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-22030iGX71,MX75198812-199205

main45515-22040iYX72198812-199205

main45515-22050iRX7#..SA198812-199205

main45515-22100iRX72..RHD..GEN198810-199302

main45515-22110iRX72..LHD198810-199302

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-22010iGX71,MX75,RX7#,YX72198810-199008

main45516-22011iRX72..GEN,V199008-199302

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-22010iYX72198812-199205

main45517-22020iGX71,MX75,RX7#..SA198812-199205

main45517-22040iRX72..GEN,V198810-199302

45700DAMPER ASSY, STEERING

main45700-22010iGX71,MX75198812-199205

9011912066

main90119-12066

9151161040

main91511-61040

10 parts on this diagram · 9 diagrams in section
