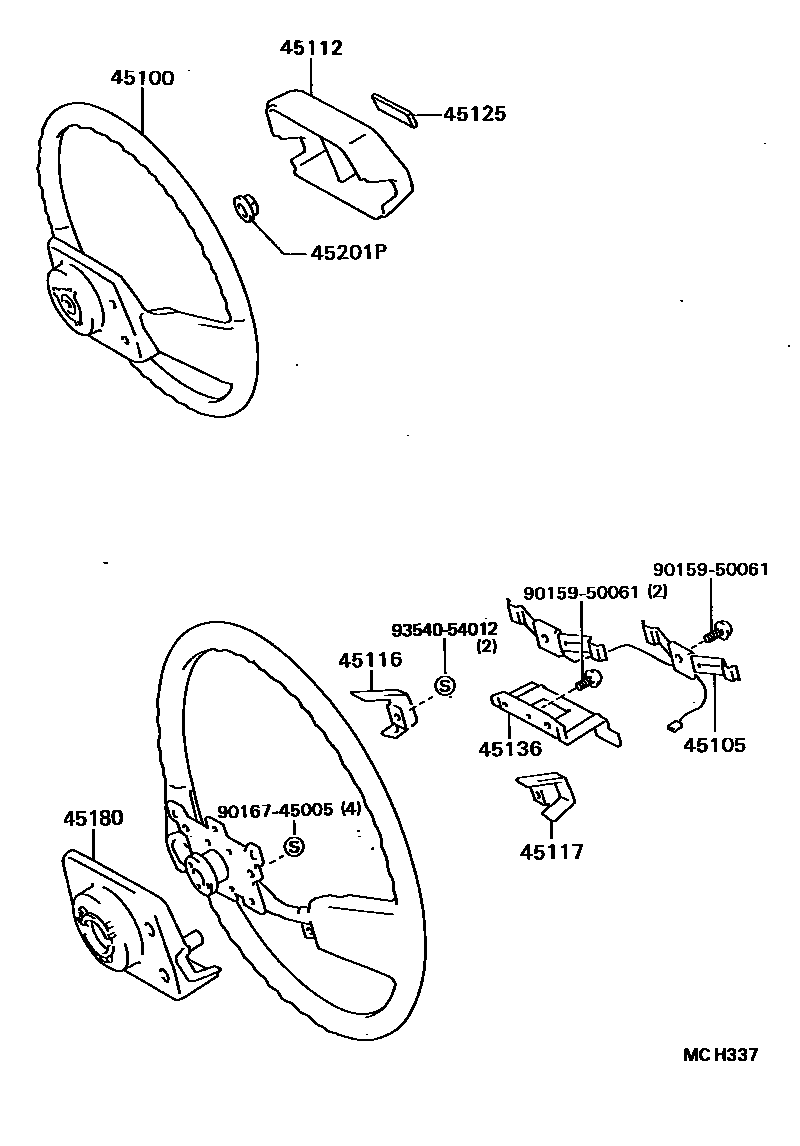

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-22240-03iGX71198812-199001

COOL GRAY,TRIM1#

main45100-22240-06iGX71198812-199001

SABLE,TRIM4#

main45100-22241-03iGX71199001-199009

COOL GLAY,TRIM1#

main45100-22241-06iGX71199001-199205

SABLE,TRIM4#

main45100-22241-13iGX71199009-199205

MEDIUM GRAY,TRIM1#

main45100-22250-06iMX75199009-199205

SABLE,TRIM4#

main45100-22250-13iMX75..GLX198812-199009

COOL GRAY,TRIM1#

main45100-22250-23iMX75199009-199205

MEDIUM GRAY,TRIM1#

main45100-22290-03iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199001

COOL GRAY,TRIM1#

main45100-22290-06iRX7#,YX72198810-199001

SABLE,TRIM4#

main45100-22290-12iRX72..GEN,V198810-199001

NEW MAROON,TRIM3#

main45100-22290-14iRX72..GEN,V198810-199001

BLUE,TRIM8#

main45100-22291-02iRX72..GEN,V199001-199302

NEW MAROON,TRIM3#

main45100-22291-03iMX75,RX7#,YX72..(GL,STD,XL)..SA199001-199009

COOL GRAY,TRIM1#

main45100-22291-04iRX72..GEN,V199001-199008

BLUE,TRIM8#

main45100-22291-06iRX7#,YX72199009-199302

SABLE,TRIM4#

main45100-22291-13iRX72..GEN,V199008-199009

MEDIUM GRAY,TRIM1#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-22080iGX71,MX75,RX7#,YX72198810-199302

45112PAD, STEERING WHEEL

main45112-22180-03iMX75..GL;GX71,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

main45112-22180-06iGX71,RX7#,YX72199009-199302

SABLE,TRIM4#

main45112-22180-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

main45112-22180-13iGX71,RX7#,YX72199009-199302

MEDIUM GRAY,TRIM1#

main45112-22180-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

main45130-22280-03iMX75..GLX198812-199009

COOL GRAY,TRIM1#

main45130-22280-06iMX75199009-199205

SABLE,TRIM4#

main45130-22280-13iMX75199009-199205

MEDIUM GRAY,TRIM1#

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-22060iGX71,MX75..GLX198812-199009

main45116-22070-03iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199009

COOL GRAY,TRIM1#

main45116-22070-06iMX75,RX7#,YX72..GL,STD,XL198810-199009

SABLE,TRIM4#

main45116-22070-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

main45116-22070-13iRX72..GEN,V199008-199009

MEDIUM GRAY,TRIM1#

main45116-22070-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

45117ORNAMENT, STEERING WHEEL, NO.2

main45117-22020iGX71,MX75199009-199205

main45117-22030-03iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199009

COOL GRAY,TRIM1#

main45117-22030-06iMX75,RX7#,YX72..GL,STD,XL198810-199009

SABLE,TRIM4#

main45117-22030-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

main45117-22030-13iRX7#,YX72199009-199302

MEDIUM GRAY,TRIM1#

main45117-22030-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

45125MARK, STEERING WHEEL PAD

main45125-22470iRX7#,YX72199009-199302

main45125-22500iGX71,MX75199009-199205

45136PLATE, HORN BUTTON CONTACT

main45136-22100iGX71,MX75,RX7#,YX72198810-199302

45180COVER SUB-ASSY, STEERING WHEEL

main45180-22010-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

main45180-22010-06iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

main45180-22010-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

main45180-22010-22iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

main45180-22010-23iRX72..GEN,V199008-199009

MEDIUM GRAY,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iGX71,MX75,RX7#,YX72199004-199302

main90179-12086iGX71,MX75,RX7#,YX72198810-199004

9015950061

main90159-50061

9016745005

main90167-45005

9354054012

main93540-54012

12 parts on this diagram · 1 diagram in section
