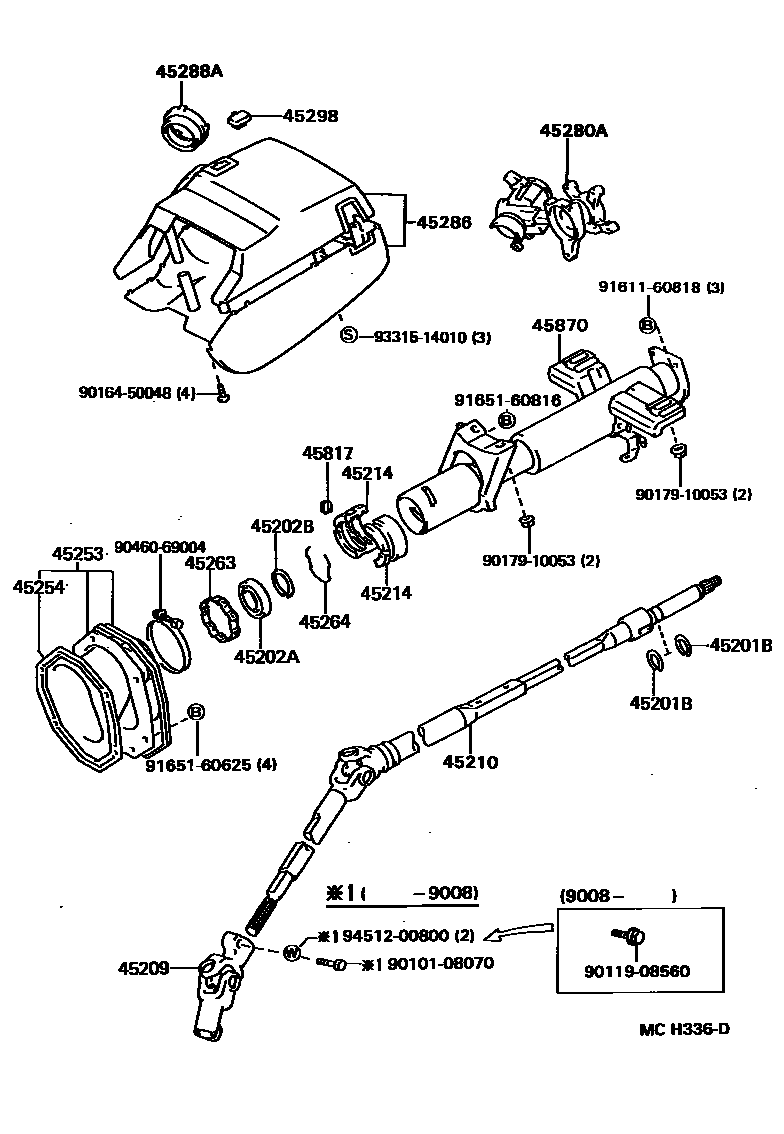

STEERING COLUMN & SHAFT

0001 1 0002 1

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iYX72198812-199205

T=1.20

main90520-17196×2iYX72198812-199205

T=1.35-1.45

45202ABEARING, RADIAL BALL(FOR STEERING INTERMEDIATE SHAFT)

main90363-30007iGX71,MX75,RX7#,YX72198810-199302

45202BRING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)

main96152-00300iGX71,MX75,RX7#,YX72198810-199302

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-32010iYX72198812-199205

main45209-32020iGX71,MX75,RX7#198810-199302

45210SHAFT ASSY, STEERING MAIN

main45210-22120iGX71,MX75,RX7#198810-199302

main45210-22130iYX72198812-199205

45214RETAINER, MAIN SHAFT SPRING

main45214-32010×2iGX71,MX75,RX7#,YX72198810-199302

45253COVER, STEERING COLUMN HOLE

main45025-22070iGX71,MX75,RX7#,YX72..RHD198810-199302

main45025-22080iRX72..LHD198810-199302

45254SHIELD, STEERING COLUMN HOLE

main45254-22050iGX71,MX75,RX7#,YX72..RHD198810-199302

main45254-22060iRX72..LHD198810-199302

45263RING, STEERING COLUMN, NO.1

main45263-32010iGX71,MX75,RX7#,YX72198810-199302

45264RING, STEERING COLUMN, NO.2

main45264-32010iGX71,MX75,RX7#,YX72198810-199302

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-22291iGX71,MX75..GLX198812-199205

main45280-22301iYX72198812-199008

main45280-22302iYX72199008-199205

main45280-22321iRX72..4FC; RX72..5F..GL198810-199302

W(POWER STEERING)

main45280-22331iMX75,RX7#..RHD..(GL,XL)198810-199302

main45280-22341iRX72..4FC;RX72..LHD..XL198810-199302

45286COVER, STEERING COLUMN

main45286-22942-02iRX72..LHD198810-199302

NEW MAROON,TRIM3#

main45286-22942-03iRX72..LHD199008-199302

MEDIUM GRAY,TRIM1#

main45286-22942-04iRX72..LHD198810-199008

BLUE,TRIM8#

main45286-22942-06iRX72..LHD198810-199302

SABLE,TRIM4#

main45286-22944-03iGX71,MX75,RX7#..SA198812-199009

COOL GRAY,TRIM1#

main45286-22944-06iGX71,MX75,RX7#..RHD198810-199302

SABLE,TRIM4#

main45286-22944-13iGX71,MX75,RX7#..RHD199009-199302

MEDIUM GRAY,TRIM1#

main45286-22944-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

main45286-22944-22iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

main45286-22945-03iYX72198812-199009

COOL GRAY,TRIM1#

main45286-22945-06iYX72198812-199205

SABLE,TRIM4#

main45286-22945-13iYX72199009-199205

MEDIUM GRAY,TRIM1#

45288ASPACER, COLUMN COVER

main45288-22010-06iRX72..LHD198810-199302

SABLE,TRIM4#

main45288-22010-13iRX72..LHD199008-199302

MEDIUM GRAY,TRIM1#

main45288-22010-14iRX72..LHD198810-199008

BLUE,TRIM8#

main45288-22010-22iRX72..LHD198810-199302

NEW MAROON,TRIM3#

main45288-30010iYX72198812-199205

45298PLUG, STEERING COLUMN COVER

main45298-22010-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

main45298-22010-06iGX71,MX75,RX7#,YX72..RHD198810-199302

SABLE,TRIM4#

main45298-22010-13iGX71,MX75,RX7#,YX72..RHD199009-199302

MEDIUM GRAY,TRIM1#

main45298-22010-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

main45298-22010-22iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

45817STOPPER, STEERING SHAFT THRUST

main45817-32010×2iGX71,MX75,RX7#,YX72198810-199302

45870TUBE ASSY, STEERING COLUMN

main45870-22160iGX71,MX75,RX7#..RHD198810-199302

main45870-22170iYX72198812-199205

main45870-22190iRX72..LHD198810-199302

9010108070

main90101-08070

9011908560

main90119-08560

9016450048

main90164-50048

9017910053

main90179-10053

9046069004

main90460-69004

9161160818

main91611-60818

9165160625

main91651-60625

9165160816

main91651-60816

9331514010

main93315-14010

9451200800

main94512-00800

26 parts on this diagram · 2 diagrams in section
