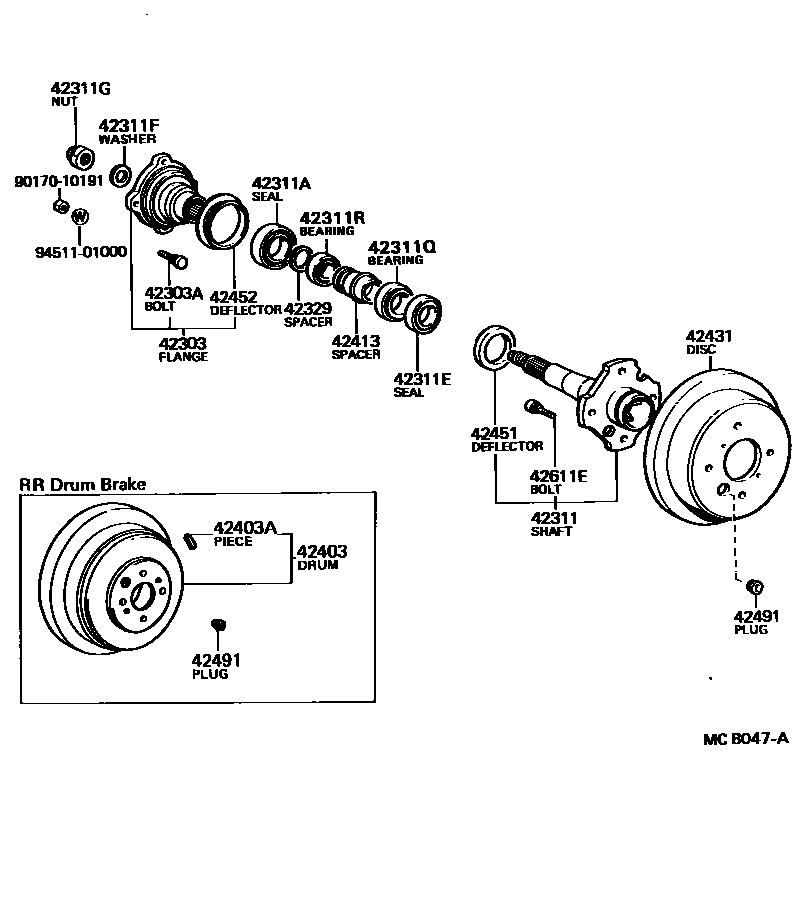

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42303FLANGE SUB-ASSY, REAR AXLE

main42303-22020×2iGX71,RX73198812-199205

main42303-22030×2iMX75198812-199205

42303ABOLT, SERRATION (FOR REAR AXLE FLANGE)

main90114-10028×8iGX71,RX73; MX75198812-199205

42311SHAFT, REAR AXLE

main42301-22050×2iGX71,MX75,RX73198812-199205

main42311-22110×2iYX72198812-199205

main42311-22130×2iRX72..4FC198810-199302

main42311-23020×2iRX72..5F198810-199302

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-38009×2iGX71,MX75,RX73198812-199205

main90311-52059×2iRX72,YX72198810-199302

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90311-48001×2iGX71,MX75,RX73198812-199205

42311FWASHER, PLATE(FOR REAR AXLE SHAFT)

main90201-20329×2iGX71,MX75,RX73198812-199205

42311GNUT(FOR REAR AXLE SHAFT)

main90179-20061×2iGX71,MX75,RX73198812-199205

42311QBEARING(FOR REAR AXLE SHAFT OUTER)

main90368-34083×2iGX71,MX75,RX73198812-199205

42311RBEARING(FOR REAR AXLE SHAFT INNER)

main90366-30001×2iGX71,MX75,RX73198812-199205

42329SPACER, REAR AXLE SHAFT

main42329-22010×2iGX71,MX75,RX73198812-199205

42403DRUM SUB-ASSY, REAR BRAKE

main42431-14061×2iRX72,YX72198810-199002

main42431-14081×2iGX71,RX73198812-199205

main42431-22140×2iRX72..V199002-199008

main42431-22141×2iRX72..V199008-199302

main42431-23030×2iRX72,YX72..GEN,SA199008-199302

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01287iGX71,RX7#,YX72198810-199302

10G

main90937-01288iGX71,RX7#,YX72198810-199302

20G

main90937-01289iGX71,RX7#,YX72198810-199302

30G

42413SPACER, REAR WHEEL BEARING

main42413-22010×2iGX71,MX75,RX73198812-199205

42431DISC, REAR

main42431-22081×2iMX75198812-199205

42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

main42451-22010×2iGX71,MX75,RX73198812-199205

42452DEFLECTOR, REAR WHEEL BEARING DUST, NO.2

main42452-30010×2iGX71,MX75,RX73198812-199205

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-14010×2iGX71,RX73198812-199205

main47491-22020×2iMX75198812-199205

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×8iGX71,MX75,RX7#,YX72198810-199302

9017010191

main90170-10191

9451101000

main94511-01000

20 parts on this diagram · 3 diagrams in section
