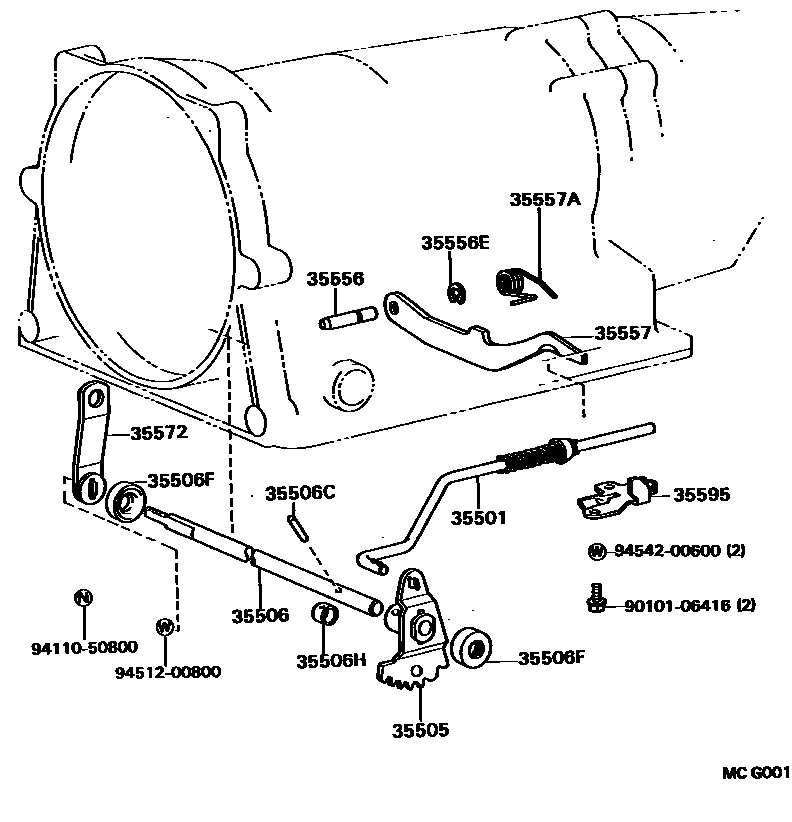

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A42DL,A43D 0002 1A340E 0003 1A42DL,A340E 0004 1

35501ROD SUB-ASSY, PARKING LOCK

main35501-22020iGX71,RX7#..4FC198810-199302

main35501-30010iMX75..GLX198812-199205

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22040iRX7#..4FC198810-199302

main35505-22050iGX71..4FC198812-199205

main35505-30020iMX75..GLX198812-199205

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-30070iMX75..GLX198812-199205

main35561-40010iGX71,RX7#..4FC198810-199302

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGX71,MX75,RX7#..4FC198810-199302

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003×2iGX71,RX7#..4FC198810-199302

main90311-12002×2iMX75..GLX198812-199205

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iGX71,RX7#..4FC198810-199302

main90560-20006iMX75..GLX198812-199205

35556SHAFT, PARKING LOCK PAWL

main35556-26010iRX72..4FC198810-199302

main35556-30020iMX75..GLX198812-199205

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGX71,MX75,RX7#..4FC198810-199302

35557PAWL, PARKING LOCK

main35557-30020iMX75..GLX198812-199205

main35557-35010iGX71,RX72..4FC198810-199302

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iMX75..GLX198812-199205

main90508-25001iGX71,RX7#..4FC198810-199302

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-22040iGX71,RX7#..4FC198810-199302

main35572-30060iMX75..GLX198812-199205

35595BRACKET, PARKING LOCK PAWL

main35595-30010iMX75..GLX198812-199205

main35595-40010iRX72..4FC198810-199302

9010106416

main90101-06416

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 4 diagrams in section
