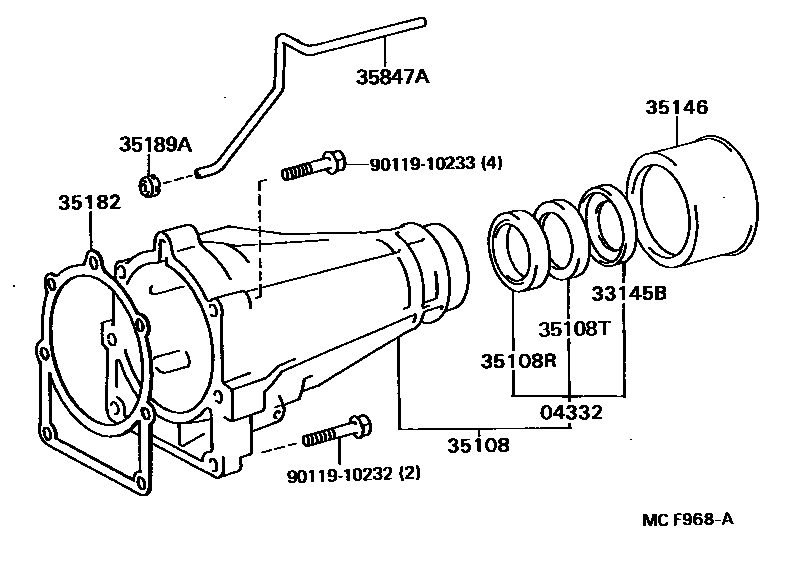

EXTENSION HOUSING (ATM)

0001 1A42DL,A43D 0002 1A340E

04332SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30030iGX71,RX7#..4FC198810-199302

33145BRETAINER, EXTENSION HOUSING DUST SEAL

main33145-30010iGX71,RX7#..4FC198810-199302

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-35020iGX71,RX7#..4FC198810-199302

main35108-35030iMX75..GLX198812-199205

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38030iGX71,RX7#..4FC198810-199302

main90311-40001iMX75..GLX198812-199205

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iGX71,RX7#..4FC198810-199302

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iGX71,MX75,RX7#..4FC198810-199302

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iGX71,MX75,RX7#..4FC198810-199008

main35182-28010iMX75..GLX199008-199012

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iGX71,MX75,RX7#..4FC198810-199302

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iGX71,MX75,RX7#..4FC198810-199302

9011910232

main90119-10232

9011910233

main90119-10233

11 parts on this diagram · 2 diagrams in section
