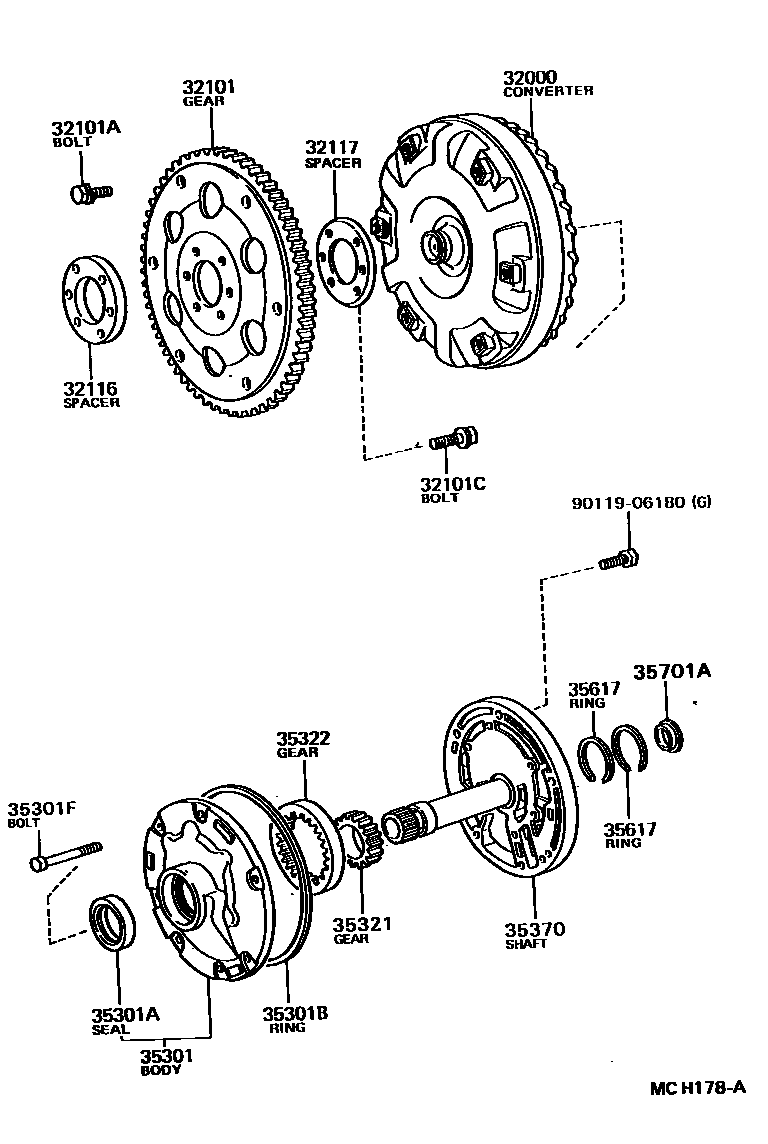

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*8-1.25PX12-8.4
*8-1.25PX12-8
*9-1.25PX12.8-8.8
*9-1.25PX12.8-9
*17-1.25PX26-18
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX23-15.5
*10-1.25PX18-12
*17-1.25PX26-18
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX35-35
35321GEAR, FRONT OIL PUMP DRIVE
T=17.286-17.235
T=15.286-15.235
T=15.244-15.235
T=15.254-15.245
T=15.265-15.255
T=15.275-15.266
T=15.285-15.276
T=9.456-9.474
35322GEAR, FRONT OIL PUMP DRIVEN
T=17.286-17.235
T=15.286-15.235
T=15.244-15.235
T=15.254-15.245
T=15.265-15.255
T=15.275-15.266
T=15.285-15.276
T=9.456-9.474
35370SHAFT ASSY, STATOR
35617RING, CLUTCH DRUM OIL SEAL
35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)
9011906180
main90119-06180
16 parts on this diagram · 2 diagrams in section
