EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-22091iGX71,MX75,RX7#,YX72..5F198810-199111

main33103-30200iGX71,MX75,RX7#,YX72..5F199111-199205

main33103-30201iRX72..5F199208-199302

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-73105iGX71,MX75,RX7#,YX72..5F198810-199205

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iGX71,MX75,RX7#,YX72..5F199111-199205

main90311-38040iGX71,MX75,RX7#,YX72..5F198810-199111

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33106-22010iGX71,MX75,RX7#,YX72..5F198810-199111

main33106-30040iGX71,MX75,RX7#,YX72..5F199111-199205

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iGX71,MX75,RX7#,YX72..5F198810-199302

33148SHROUD, GEAR, NO.1

main33148-22010iGX71,MX75,RX7#,YX72..5F198810-199111

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10065iGX71,MX75,RX7#,YX72..5F198810-199205

9011910019

main90119-10019

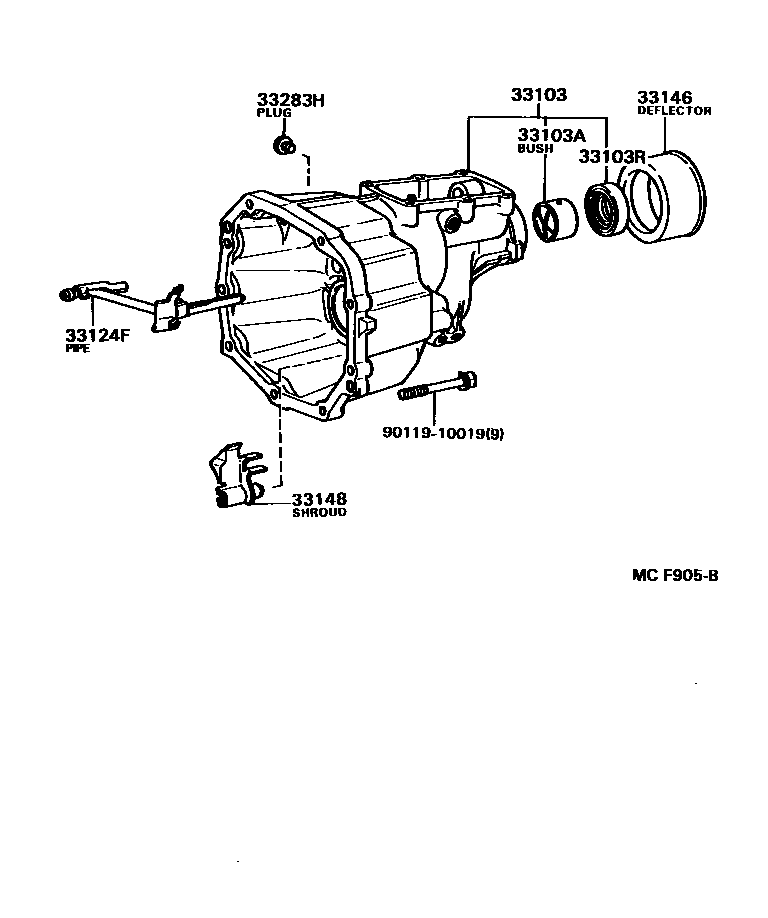

8 parts on this diagram · 1 diagram in section
