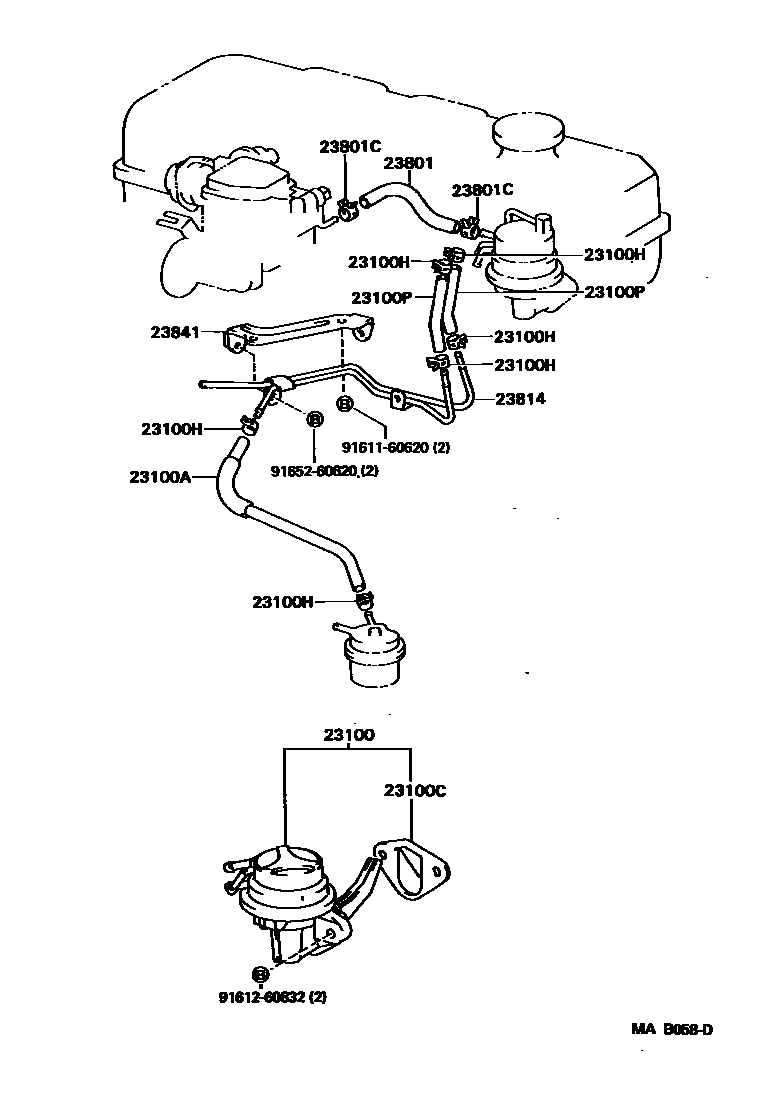

FUEL PUMP & PIPE

0001 1 0002 1

23100PUMP ASSY, FUEL

main23100-39336i22R..RX7#198810-199302

main23100-73021i3Y..YX72198812-199205

23100AHOSE, FUEL

main90445-12160i3Y..YX72198812-199205

main90447-12082i22R..RX7#198810-199302

23100CINSULATOR, FUEL PUMP

main90923-06008i3Y..YX72198812-199002

main90923-06010i22R..RX7#198810-199302

main90923-06014i3Y..YX72199002-199205

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i3Y..YX72198812-199205

main96132-41100×2i22R..RX7#..SA199008-199205

23100PHOSE(FOR FUEL PUMP TO FUEL TUBE)

main95333-06020×2i22R..RX7#198810-199302

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-71011i3Y..YX72198812-199205

main95333-06020i22R..RX7#198810-199302

L=200

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×4i3Y..YX72198812-199205

main96132-41100×2i22R..RX7#198810-199302

23814PIPE, FUEL DELIVERY

main23814-37040i22R..RX7#198810-199302

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-35050i22R..RX7#198810-199302

9161160620

main91611-60620

9161260832

main91612-60832

9165260620

main91652-60620

12 parts on this diagram · 2 diagrams in section
