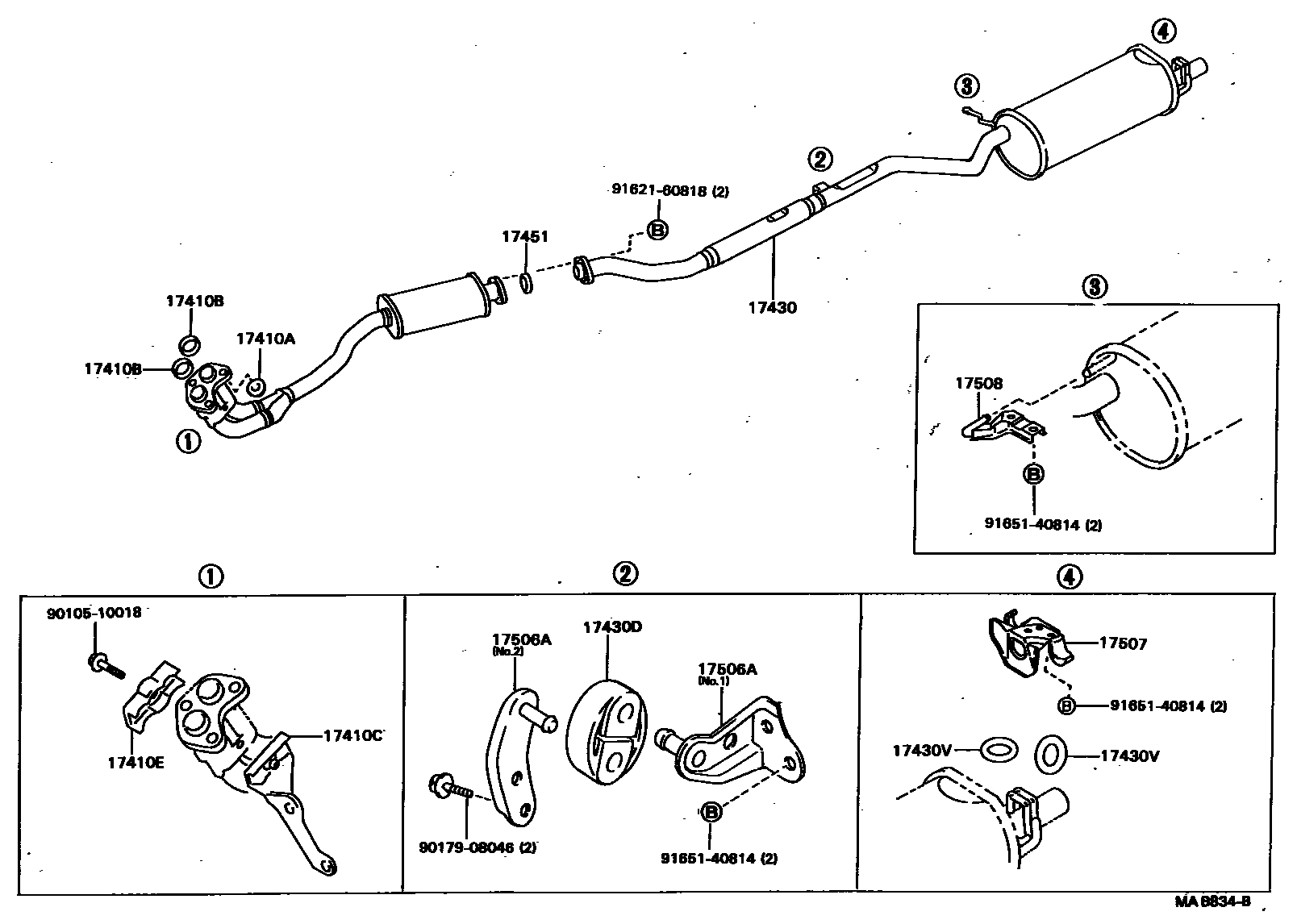

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17430PIPE ASSY, EXHAUST, TAIL
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
NO.1
NO.2
17451GASKET, EXHAUST PIPE
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
NO.1
NO.2
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
9010510018
main90105-10018
9017908046
main90179-08046
9162160818
main91621-60818
9165140814
main91651-40814
16 parts on this diagram · 4 diagrams in section
