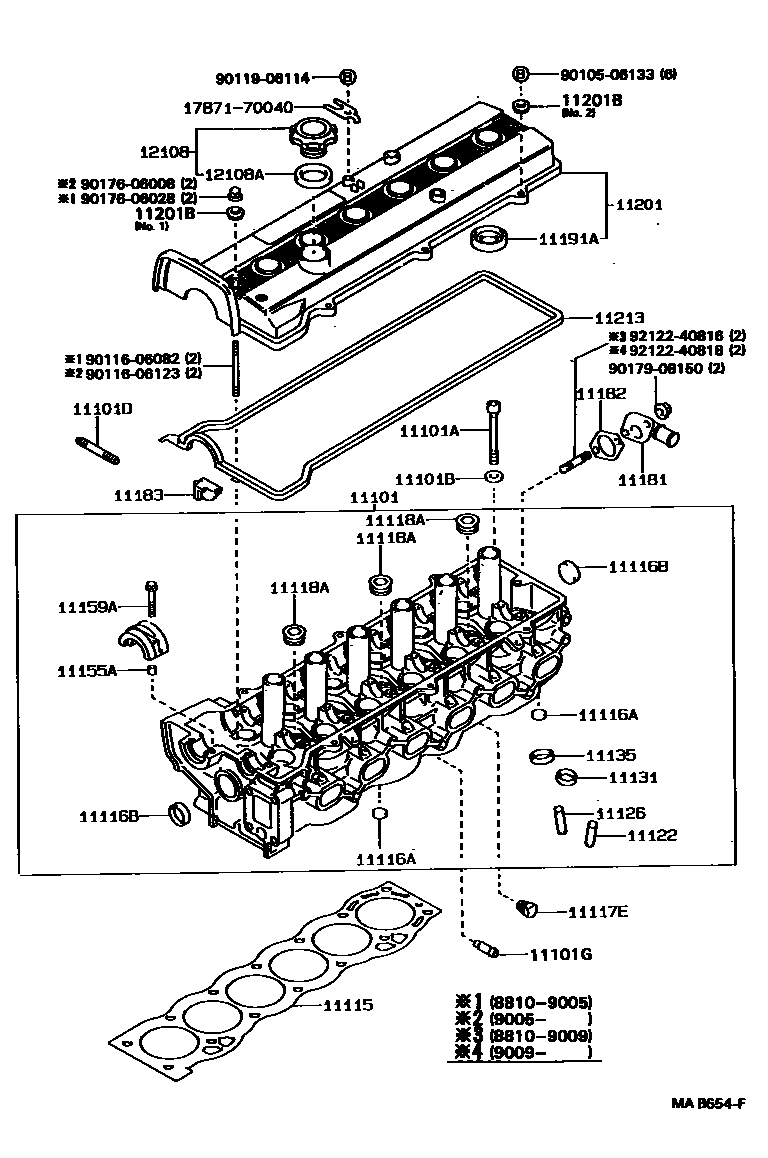

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101DBOLT, STUD(FOR WATER OUTLET)
11101GUNION(FOR CYLINDER HEAD)
11116APLUG, TIGHT, NO.1
11116BPLUG, TIGHT, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11118APLUG, STRAIGHT, NO.1
11122BUSH, INTAKE VALVE GUIDE
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
STD
STD
O/S 0.05
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11155APIN, RING W/HEAD
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
sub90119-07009
11183PLUG, SEMICIRCULAR
11191TUBE, SPARK PLUG
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
sub12180-55010
sub12180-70020
sub12180-62011
sub12180-65011
sub12180-73011
sub12180-73011
12108AGASKET(FOR OIL FILLER CAP)
1787170040STAY, AIR CONNECTOR
main17871-70040
9010506133
main90105-06133
9011606082
main90116-06082
9011606123
main90116-06123
9011906114
main90119-06114
9017606008
main90176-06008
9017606028
main90176-06028
9017908150
main90179-08150
9212240816
main92122-40816
9212240818
main92122-40818
37 parts on this diagram · 4 diagrams in section
