ENGINE OVERHAUL GASKET KIT

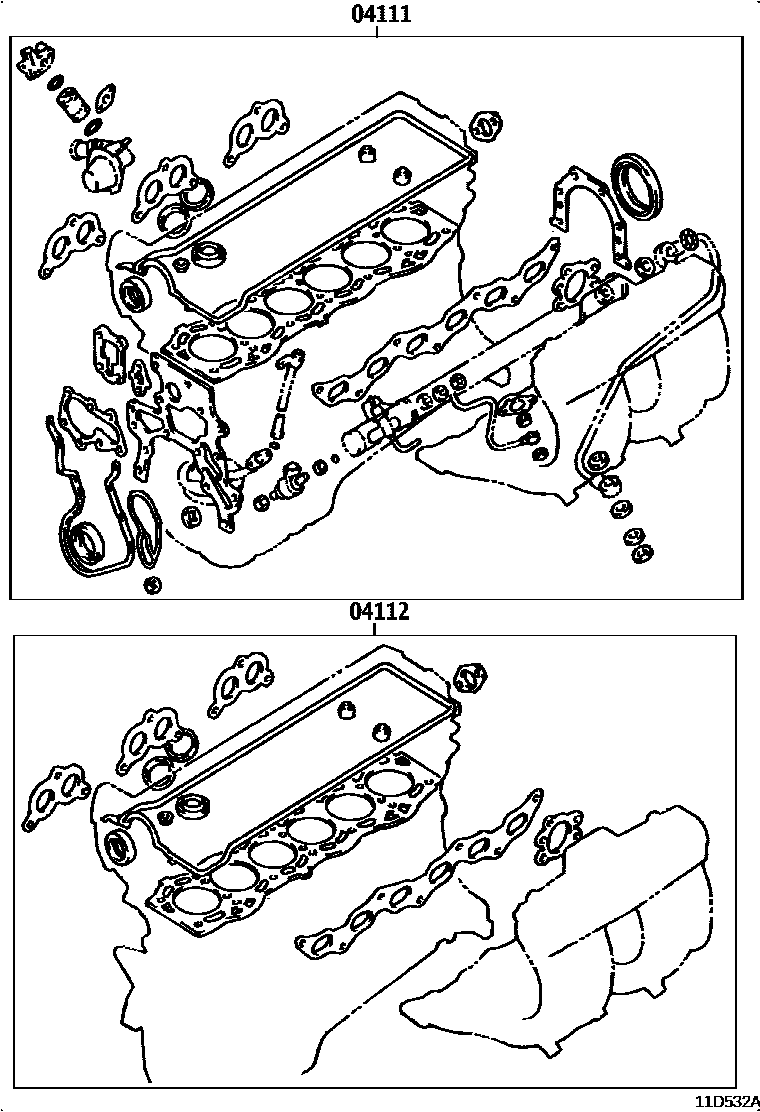

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-35310i199008-199011

main04111-35311i199011-199302

main04111-35320i199008-199011

main04111-35321i199011

main04111-42030i198812-199008

main04111-42031i199008-199110

main04111-42032i199110-199111

main04111-42033i199111-199205

main04111-70060i198812-199007

main04111-70061i199007-199205

main04111-73024i198812-199001

main04111-73025i199001-199106

main04111-73026i199106

04112GASKET KIT, ENGINE VALVE GRIND

main04112-35290i199008-199011

main04112-35291i199011-199302

main04112-35300i199008-199011

main04112-35301i199011

main04112-42030i198812-199008

main04112-42031i199008-199110

main04112-42032i199110-199111

main04112-42033i199111-199205

main04112-70060i198812-199007

main04112-70061i199007-199205

main04112-73023i198812-199001

main04112-73024i199001-199106

main04112-73025i199106

2 parts on this diagram · 4 diagrams in section
