SHORT BLOCK ASSEMBLY

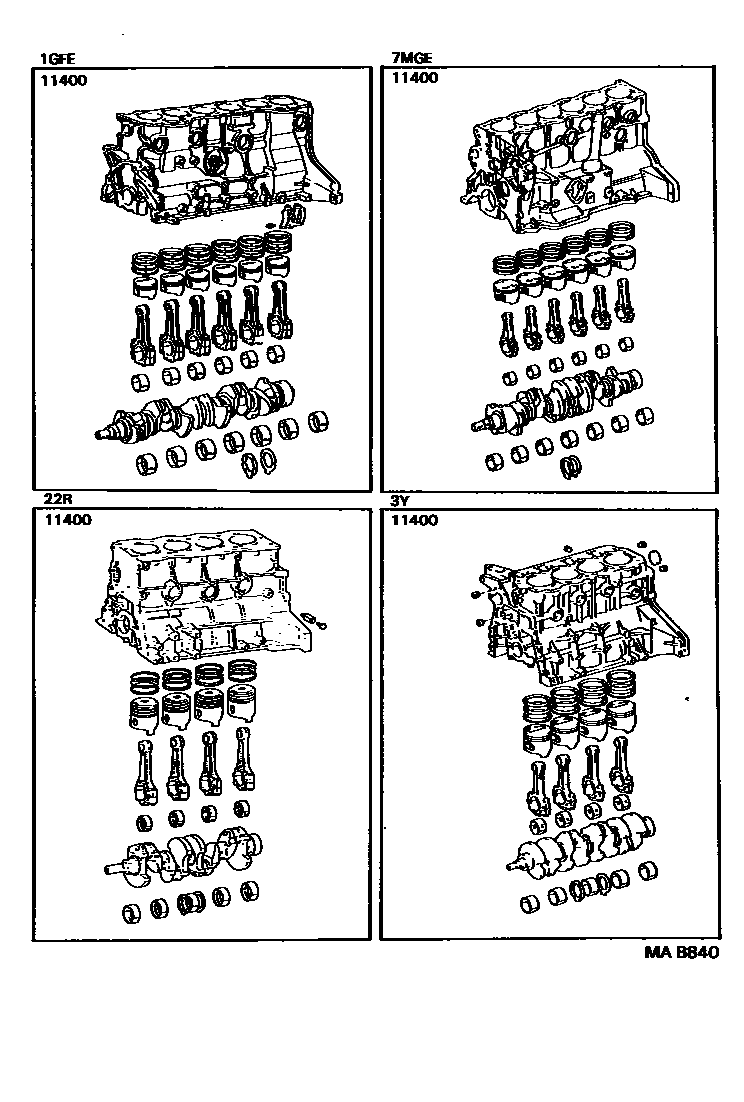

Parts diagram

11400BLOCK ASSY, SHORT

main11400-35043i198810-199302

main11400-42121i198903-198908

main11400-42122i198908-199205

main11400-70100i198812-199205

main11400-73021i198812-198908

main11400-73022i198908-199205

1 parts on this diagram · 1 diagram in section
