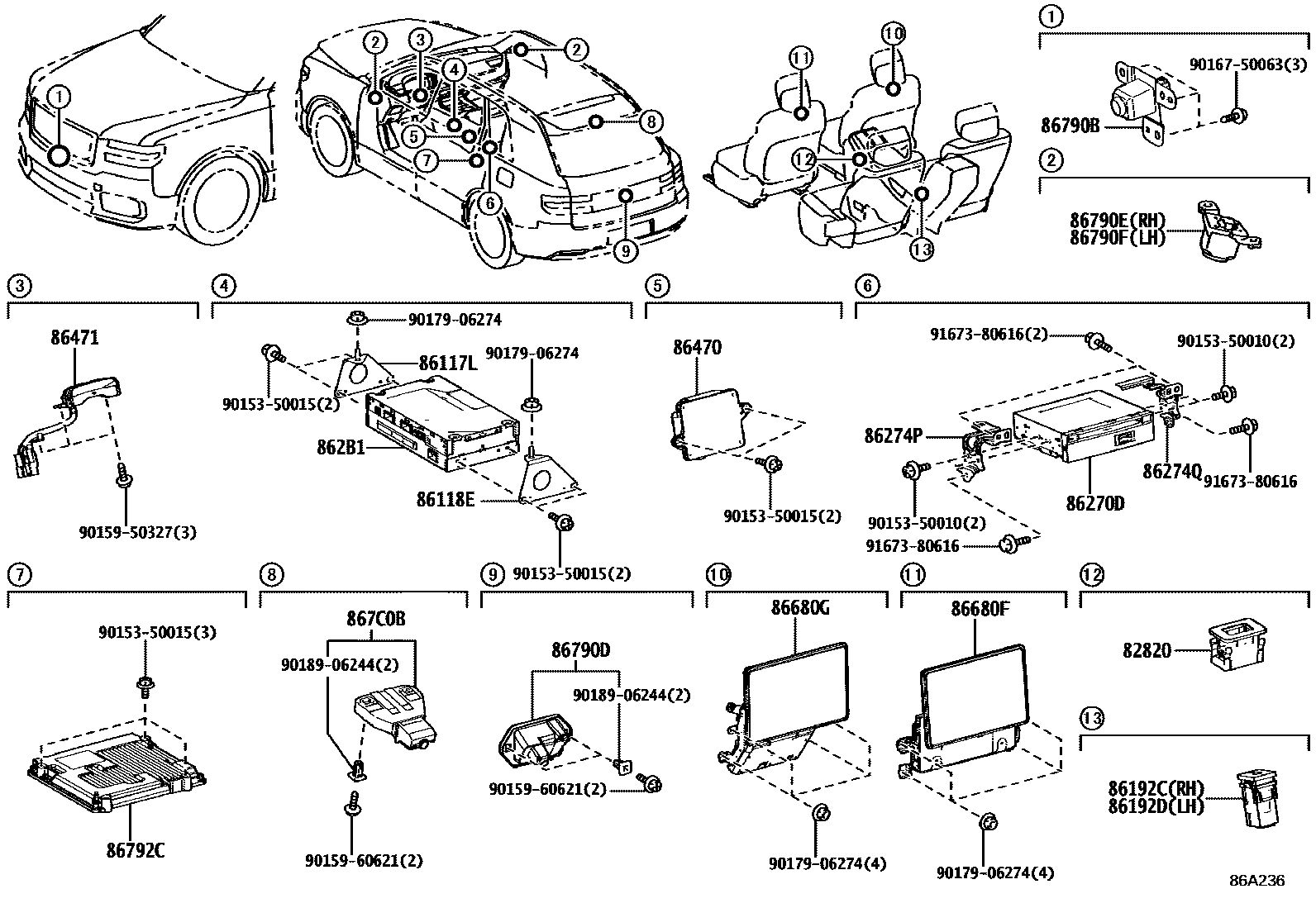

CAMERA & REAR MONITOR DISPLAY
82820COVER, CONNECTOR
86117LBRACKET, MULTI-DISPLAY CONTROLLER, NO.1
86118EBRACKET, MULTI-DISPLAY CONTROLLER, NO.2
86192CTERMINAL, HEADPHONE, RH
86192DTERMINAL, HEADPHONE, LH
86270DDISC PLAYER ASSY
86274PBRACKET, DISC PLAYER, NO.1
86274QBRACKET, DISC PLAYER, NO.2
862B1CONTROLLER, MULTI-DISPLAY
86470COMPUTER ASSY, DRIVER MONITOR
86471CAMERA, DRIVER MONITOR
86680FDISPLAY ASSY, MULTI INFORMATION, NO.1
86680GDISPLAY ASSY, MULTI INFORMATION, NO.2
86790BCAMERA ASSY, TELEVISION, FR
86790DCAMERA ASSY, TELEVISION, RR
86790ECAMERA ASSY, TELEVISION, SIDE RH
86790FCAMERA ASSY, TELEVISION, SIDE LH
86792CCOMPUTER, PARKING ASSIST
867C0BCAMERA ASSY, INNER MIRROR, RR
9015350010
main90153-50010
9015350015
main90153-50015
9015950327
main90159-50327
9015960621
main90159-60621
9016750063
main90167-50063
9017906274
main90179-06274
9018906244
main90189-06244
9167380616
main91673-80616
27 parts on this diagram · 1 diagram in section
