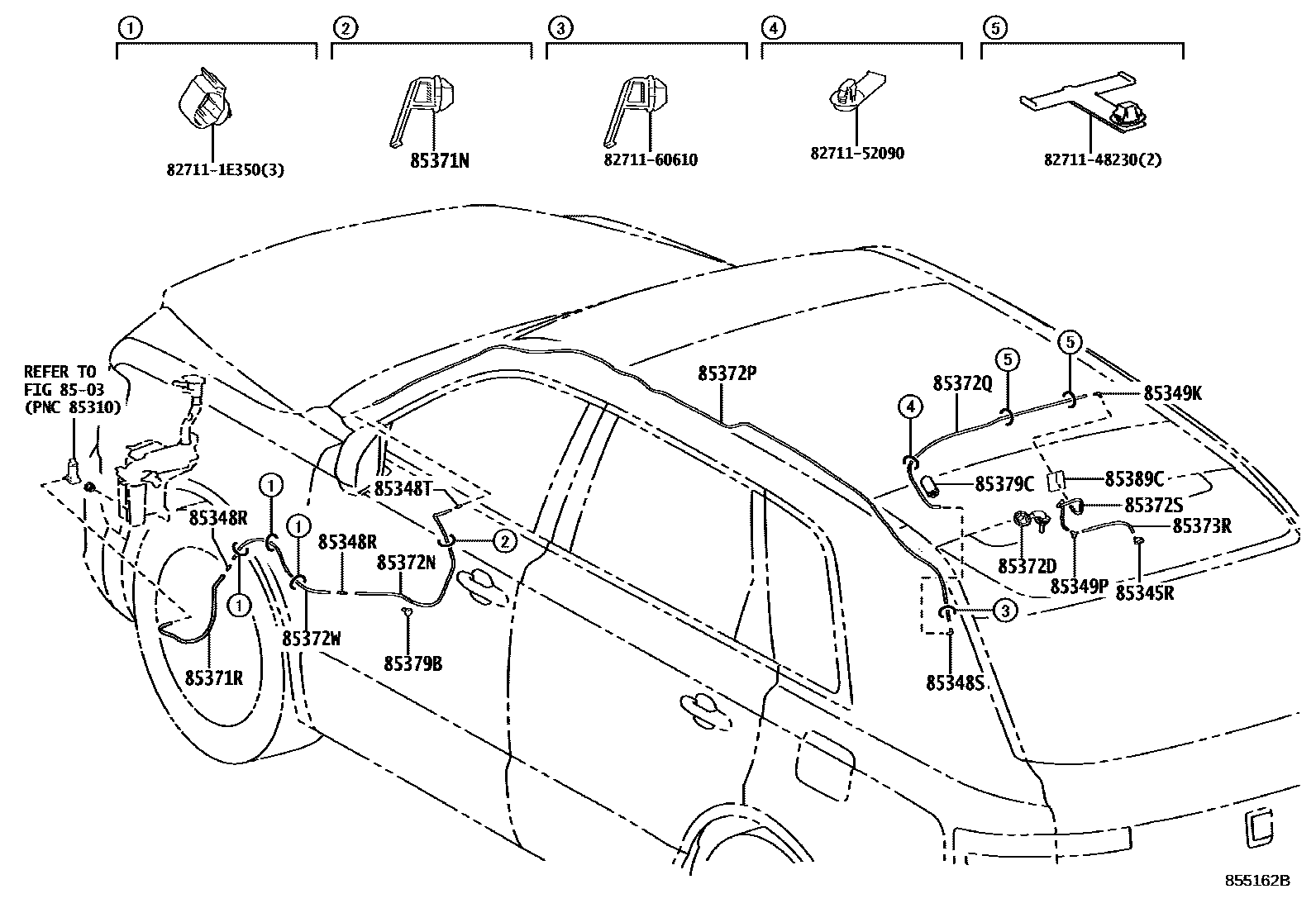

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85391-47030iGRG75202310

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-10260×2iGRG75202310

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iGRG75202310

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-10260iGRG75202310

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iGRG75202310

85349PJOINT, REAR WASHER ELBOW, NO.3

main85375-60290iGRG75202310

85371NCLAMP, REAR WASHER HOSE

main82711-60610iGRG75202310

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90068-33092iGRG75202310

L=480

85372DGROMMET, REAR WASHER HOSE

main85373-48050iGRG75202310

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-62263iGRG75202310

L=1000(*H,L=810)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-62264iGRG75202310

L=3200(*H,L=2900)

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-62263iGRG75202310

L=1000(*H,L=840)

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iGRG75202310

L=1450(*H,L=350)

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90099-62126iGRG75202310

L=600

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iGRG75202310

L=1450(*H,L=180)

85379BGROMMET, WASHER, A

main85379-12850iGRG75202310

85379CGROMMET, REAR WASHER HOSE NO.1

main85379-40130iGRG75202310

85389CPROTECTOR, WASHER

main85372-40010iGRG75202310

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

8271148230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48230

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8271160610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60610

23 parts on this diagram · 1 diagram in section
