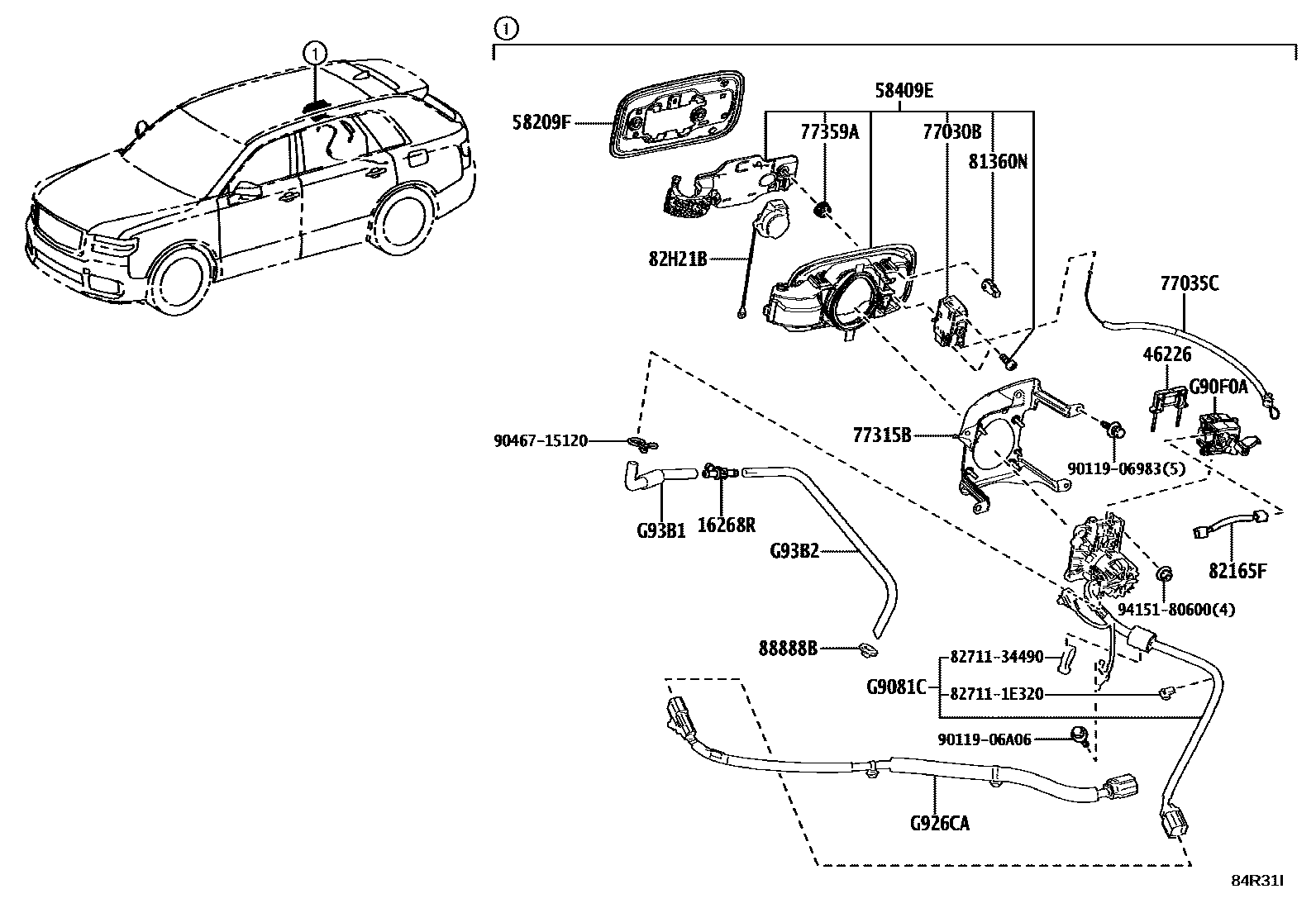

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1BATTERY CHARGER LID 0002 1EV CHARGER & EV CHARGER CABLE0003 1DC/DC CONVERTER

16268RPIPE, WATER BY-PASS

main16268-37120i2GRFXS..GRG75202310

46226PIN, CONNECTOR

main46226-47010iGRG75202310

58209FLID SUB-ASSY, BATTERY SERVICE OPENING

main58209-40010iGRG75202310

58409ELID SUB-ASSY, BATTERY CHARGER CONNECTOR OPENING

main58409-40010iGRG75202310

77030BLOCK ASSY, CHARGE LID W/MOTOR

main77030-40040iGRG75202310

77035CCABLE SUB-ASSY, CHARGE LID LOCK CONTROL

main77035-40010iGRG75202310

77315BPLATE, POWER SUPPLY CONNECTOR SUPPORT

main77315-40010iGRG75202310

77359ASEAL, FUEL FILLER OPENING LID LOCK

main77359-42010iGRG75202310

81360NLAMP ASSY, SPOT

main81360-47010iGRG75202310

82165FWIRE, FLOOR, NO.5

main82165-40020iGRG75202310

82H21BCOVER, CONNECTOR

main82821-76250iGRG75202310

88888BGROMMET, COOLER, NO.2

main88888-47010iGRG75202310

G9081CCABLE, AC CHARGER INLET

mainG908140010iGRG75202310

G90F0ALOCK ASSY, CABLE EV CHARGER

mainG90F076010iGRG75202310

G926CAWIRE, EV CHARGER

mainG926C40010iGRG75202310

G93B1HOSE, EV CHARGE CONNECTOR DRAIN, NO.1

mainG93B140010iGRG75202310

G93B2HOSE, EV CHARGE CONNECTOR DRAIN, NO.2

mainG93B240010iGRG75202310

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

8271134490WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34490

9011906983

main90119-06983

9011906A06

main90119-06A06

9046715120

main90467-15120

9415180600

main94151-80600

23 parts on this diagram · 3 diagrams in section
