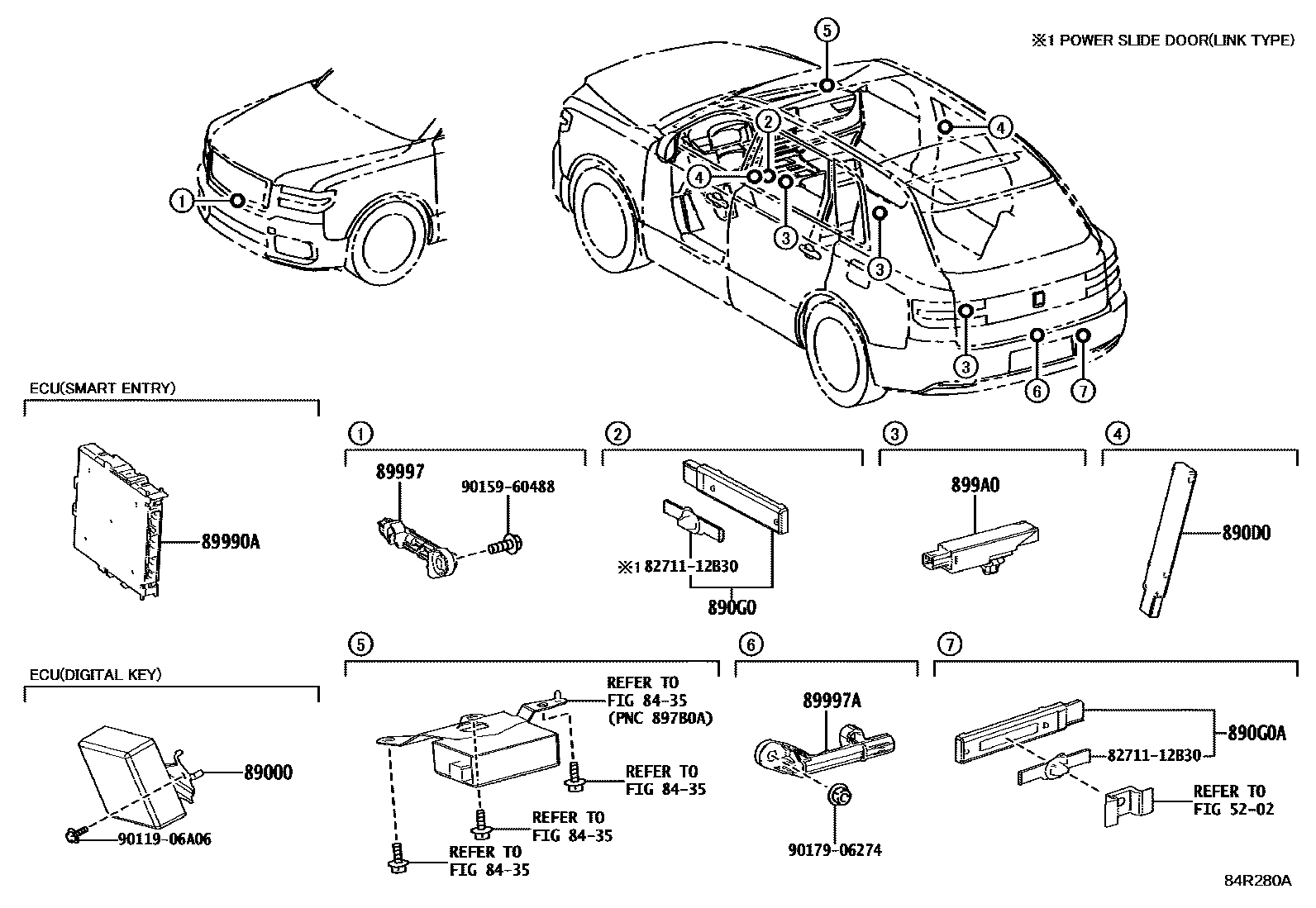

WIRELESS DOOR LOCK

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

89000COMPUTER ASSY, DIGITAL KEY

main89000-40020iGRG75202310

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890D0-78020×2iGRG75202310

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-42020iGRG75202310

890G0ARECEIVER ASSY, BLE DOOR DIGITAL KEY, NO.2

main890G0-42020iGRG75202310

89990ACOMPUTER ASSY, SMART KEY

main899H0-40020iGRG75202310

89997ANTENNA, ELECTRICAL KEY

main89997-30100iGRG75202310

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-30100iGRG75202310

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12130×3iGRG75202310

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B30

9011906A06

main90119-06A06

9015960488

main90159-60488

9017906274

main90179-06274

14 parts on this diagram · 1 diagram in section
