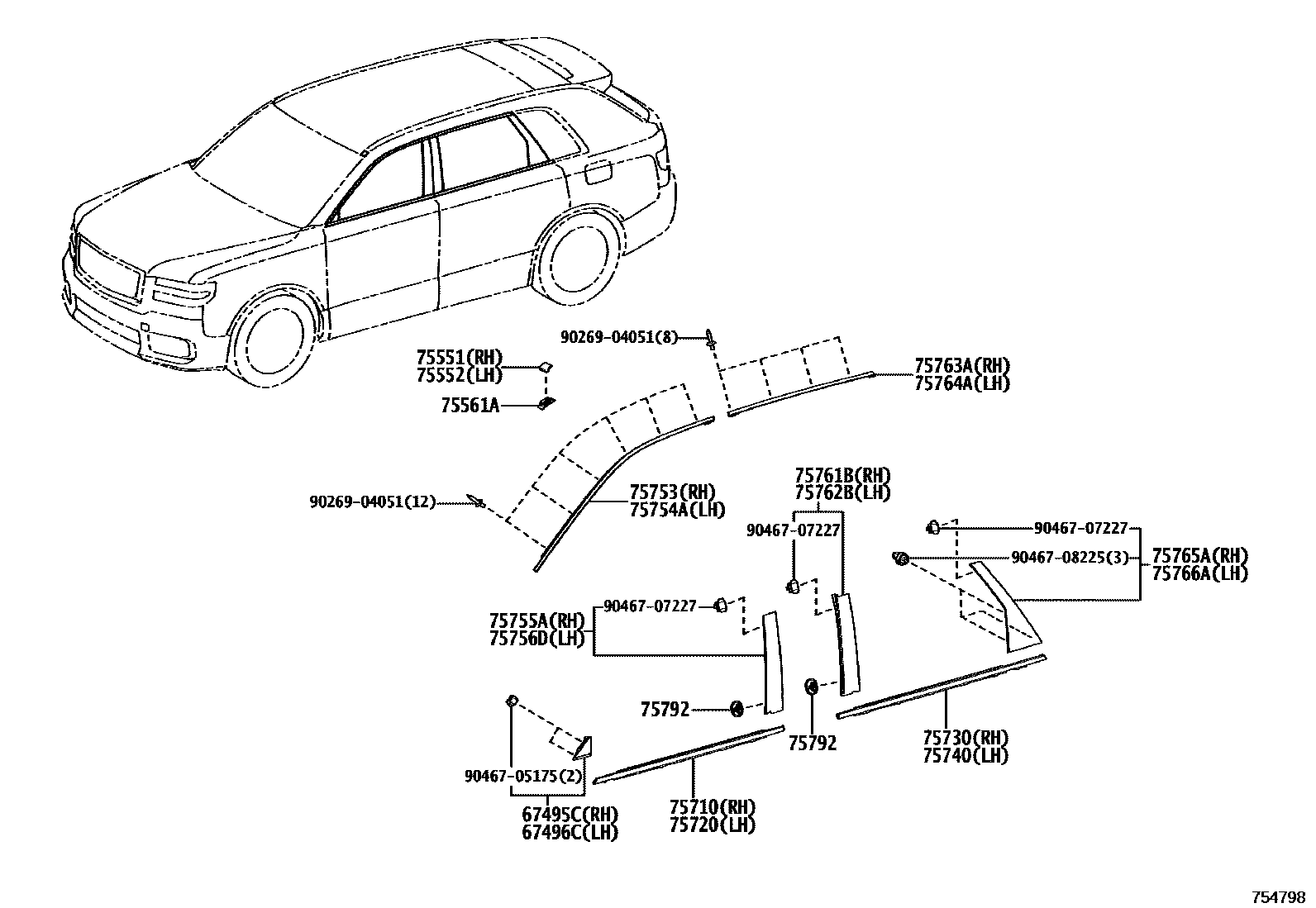

SIDE MOULDING
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
POWER SLIDE DOOR(LINK TYPE)
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
POWER SLIDE DOOR(LINK TYPE)
75551MOULDING, ROOF DRIP SIDE FINISH, RH
PRECIOUS WHITE PEARL,090 ,M34
PROMINENT GRAY,1M3 ,M32 ,M41
BLACK,212 ,M31
GLORY RED,3V0 ,M33
75552MOULDING, ROOF DRIP SIDE FINISH, LH
PRECIOUS WHITE PEARL,090 ,M34
PROMINENT GRAY,1M3 ,M32 ,M41
BLACK,212 ,M31
GLORY RED,3V0 ,M33
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75710MOULDING ASSY, FRONT DOOR BELT, RH
DOOR FRAME MOULDING-WITH(STAINLESS),BLACK
75720MOULDING ASSY, FRONT DOOR BELT, LH
DOOR FRAME MOULDING-WITH(STAINLESS),BLACK
75730MOULDING ASSY, REAR DOOR BELT, RH
DOOR FRAME MOULDING-WITH(STAINLESS),BLACK
75740MOULDING ASSY, REAR DOOR BELT, LH
DOOR FRAME MOULDING-WITH(STAINLESS),BLACK
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
DOOR FRAME MOULDING-WITH(STAINLESS),BLACK
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
DOOR FRAME MOULDING-WITH(STAINLESS),BLACK
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
POWER SLIDE DOOR(LINK TYPE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
POWER SLIDE DOOR(LINK TYPE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
POWER SLIDE DOOR(LINK TYPE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
POWER SLIDE DOOR(LINK TYPE)
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
DOOR FRAME MOULDING-WITH(STAINLESS),BLACK
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
DOOR FRAME MOULDING-WITH(STAINLESS),BLACK
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
POWER SLIDE DOOR(LINK TYPE)
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
POWER SLIDE DOOR(LINK TYPE)
75792CLIP, DOOR WINDOW FRAME MOULDING
POWER SLIDE DOOR(LINK TYPE)
9026904051
main90269-04051
9046705175
main90467-05175
9046707227
main90467-07227
9046708225
main90467-08225
24 parts on this diagram · 3 diagrams in section
