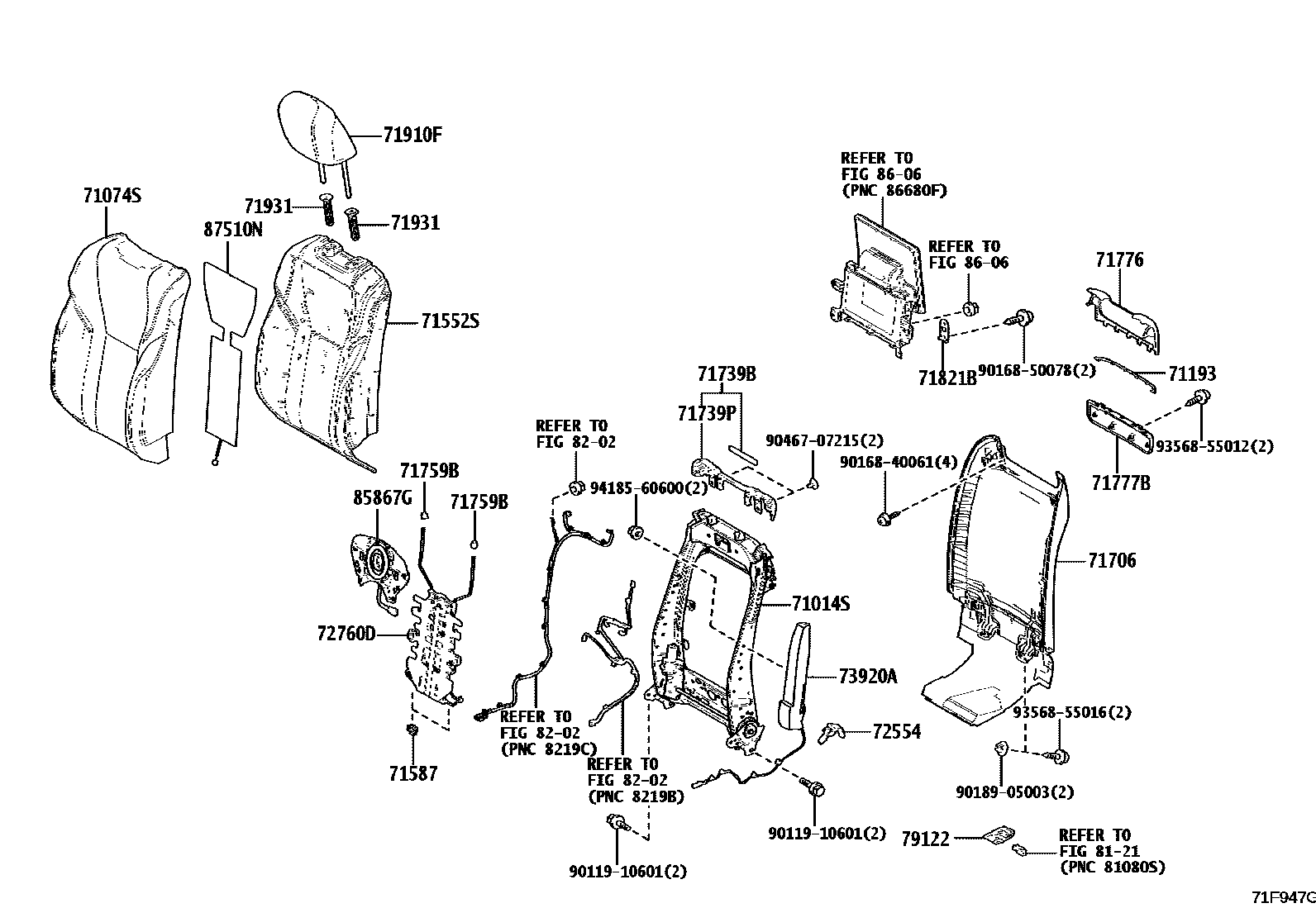

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT(SEAT BACK) 0002 1DRIVER SEAT(SEAT CUSHION) 0003 1PASSENGER SEAT(SEAT BACK) 0004 1PASSENGER SEAT(SEAT CUSHION)

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-60650iGRG75202310

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-40290-A1iGRG75202310

FROMAGE,TRIM0#

main71074-40290-C1iGRG75202310

BLACK,TRIM2#

main71074-40290-E2iGRG75202310

SUNFLARE BROWN,TRIM41

main71074-40290-E3iGRG75202310

MD.BROWN,TRIM40

71193PLATE, FRONT SEATBACK BOARD SET

main71193-40020iGRG75202310

LH

main71193-40030iGRG75202310

RH

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-40200iGRG75202310

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010×4iGRG75202310

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71706-40280-A1iGRG75202310

FROMAGE,TRIM0#

main71706-40280-C1iGRG75202310

BLACK,TRIM2#

main71706-40280-E2iGRG75202310

SUNFLARE BROWN,TRIM41

main71706-40280-E3iGRG75202310

MD.BROWN,TRIM40

71739BBEZEL, FRONT SEATBACK, NO.2

main71739-40040iGRG75202310

W(FELT)

71739PBEZEL, FRONT SEATBACK, LH

main71739-60070iGRG75202310

W/O(FELT)

71759BHOOK, FRONT SEATBACK

main71759-50040×4iGRG75202310

71776COVER, FRONT SEATBACK BOARD, NO.1

main71776-40120iGRG75202310

LH

main71776-40140iGRG75202310

RH

71777BCOVER, FRONT SEATBACK BOARD, NO.2

main71777-40040iGRG75202310

LH

main71777-40060iGRG75202310

RH

71821BBRACKET, FRONT SEAT SHIELD SET, NO.1

main71821-40010×2iGRG75202310

71910FHEADREST ASSY, FRONT SEAT, LH

main71910-40180-A1iGRG75202310

FROMAGE,TRIM0#

main71910-40180-C1iGRG75202310

BLACK,TRIM2#

main71910-40180-E2iGRG75202310

SUNFLARE BROWN,TRIM41

main71910-40180-E3iGRG75202310

MD.BROWN,TRIM40

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-A0iGRG75202310

W(LOCK),FROMAGE,TRIM0#

main71930-47050-C5iGRG75202310

W(LOCK),BLACK,TRIM2#,4#

main71931-47030-A0iGRG75202310

W/O(LOCK),FROMAGE,TRIM0#

main71931-47030-C4iGRG75202310

W/O(LOCK),BLACK,TRIM2#,4#

72554PROTECTOR, RECLINING COVER, LH

main72554-60020iGRG75202310

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-33130iGRG75202310

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-60040iGRG75202310

79122BRACKET, FRONT SEAT CUSHION, LH

main79122-60010iGRG75202310

8121

8202

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-60050iGRG75202310

85867GBLOWER, SEATBACK CLIMATE CONTROL, LH

main85867-60080iGRG75202310

8606

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-60050iGRG75202310

9011910601

main90119-10601

9016840061

main90168-40061

9016850078

main90168-50078

9018905003

main90189-05003

9046707215

main90467-07215

9356855012

main93568-55012

9356855016

main93568-55016

9418560600

main94185-60600

32 parts on this diagram · 4 diagrams in section
