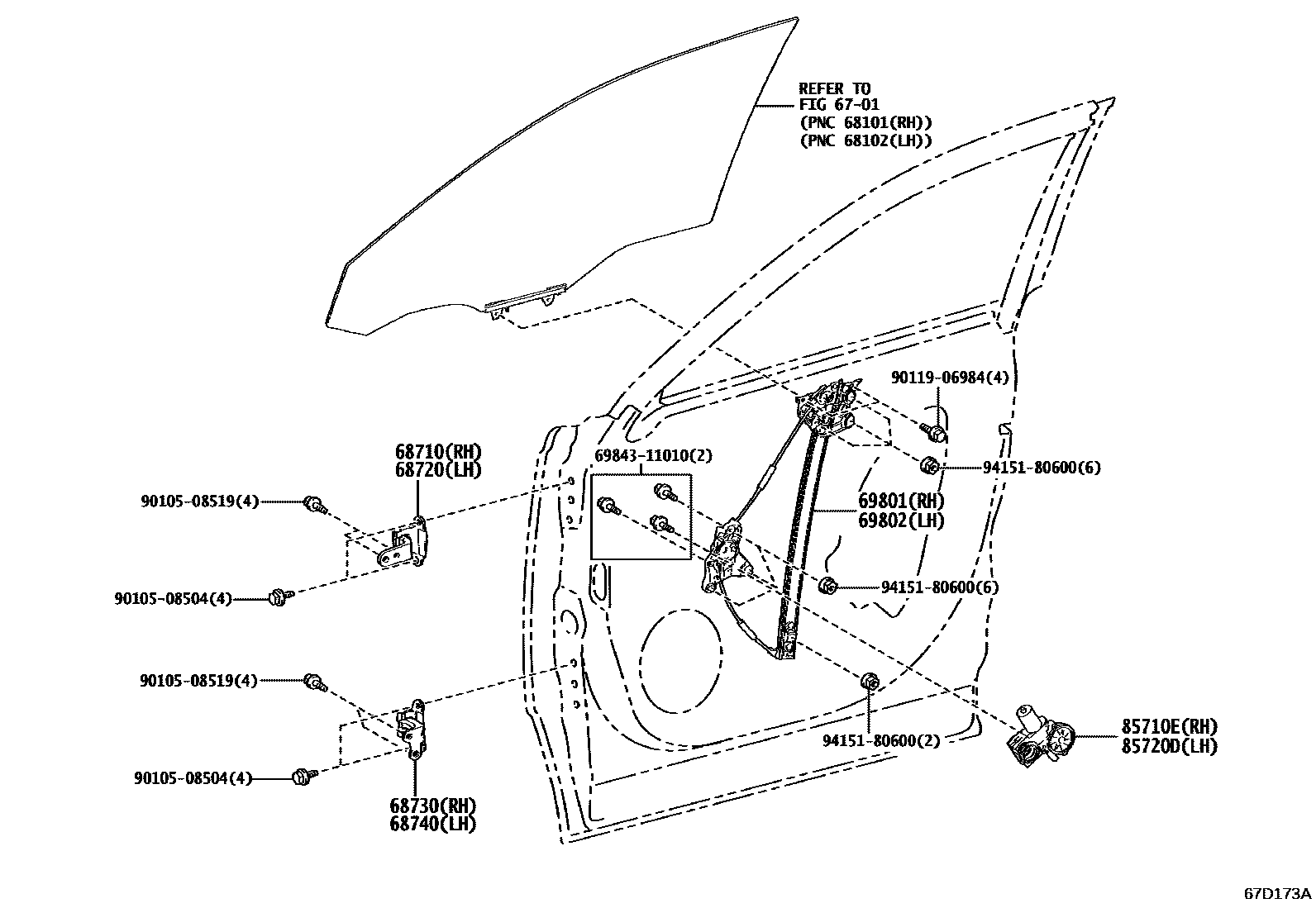

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-40070iGRG75202310

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-40030iGRG75202310

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68750-76020iGRG75202310

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68760-76020iGRG75202310

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0E190iGRG75202310

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0E190iGRG75202310

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0W010iGRG75202310

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0W010iGRG75202310

6984311010

main69843-11010

9010508504

main90105-08504

9010508519

main90105-08519

9011906984

main90119-06984

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
