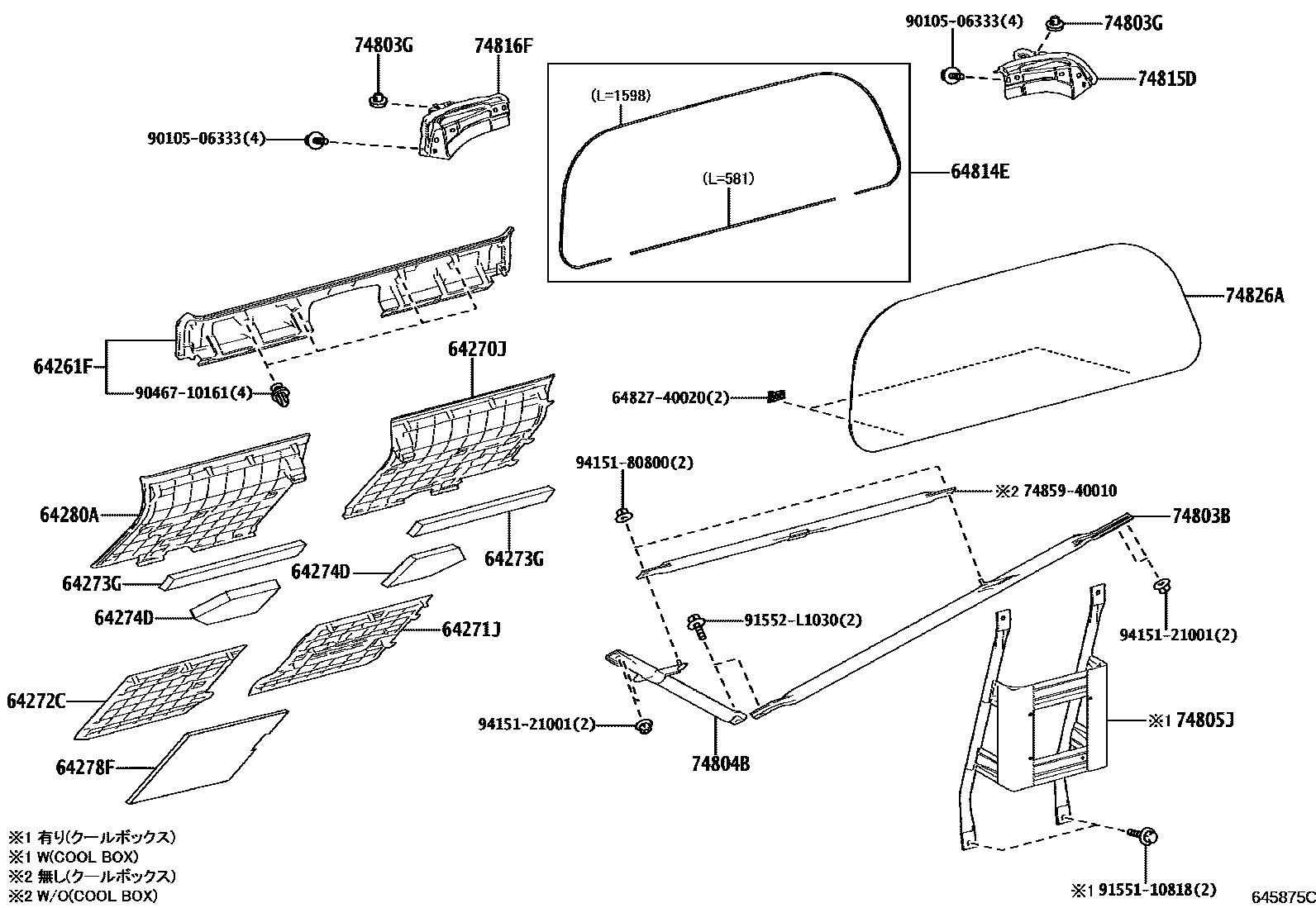

ROOM SEPARATION TRIM
64261FGARNISH, BACK PANEL, UPPER
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM40
SUNFLARE BROWN,TRIM41
64270JBOARD ASSY, ROOM PARTITION, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM40
SUNFLARE BROWN,TRIM41
64271JBOARD, ROOM PARTITION, RH
DK.GRAY,TRIM00
BLACK,TRIM00,2#,4#
64272CBOARD, ROOM PARTITION, LH
DK.GRAY,TRIM00
BLACK,TRIM00,2#,4#
64273GPAD, ROOM PARTITION, NO.1
64274DPAD, ROOM PARTITION, NO.2
64278FPAD, ROOM PARTITION, NO.3
64280ABOARD ASSY, ROOM PARTITION, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM40
SUNFLARE BROWN,TRIM41
64814EDAM, SEPARATOR WINDOW GLASS ADHESIVE, NO.1
74803BBAR SUB-ASSY, SEPARATOR VERTICAL, RH
74803GCLIP, SEPARATOR TRIM
74804BBAR SUB-ASSY, SEPARATOR VERTICAL, LH
74805JBAR SUB-ASSY, SEPARATOR, A
74815DPLATE, SEPARATOR, RH
74816FPLATE, SEPARATOR, LH
74826AWINDOW, SEPARATOR
6482740020CLIP, BACK WINDOW GLASS, RH
main64827-40020
7485940010RETAINER, ARMREST COVER, UPPER
main74859-40010
9010506333
main90105-06333
9046710161
main90467-10161
9155110818
main91551-10818
91552L1030
main91552-L1030
9415121001
main94151-21001
9415180800
main94151-80800
24 parts on this diagram · 2 diagrams in section
