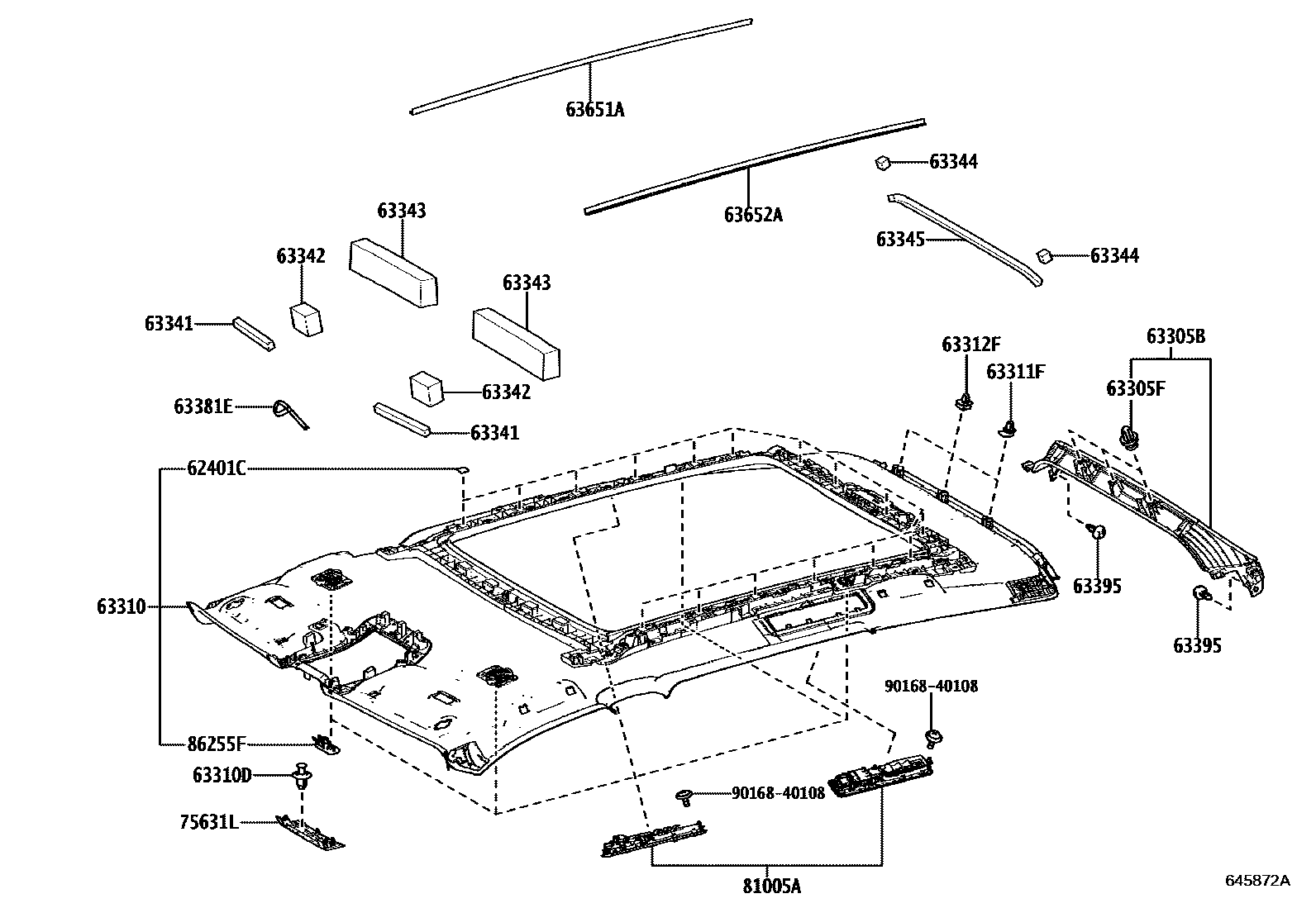

ROOF HEADLINING & SILENCER PAD

62401CFASTENER, HOOK

main90530-20022iGRG75202310

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-40010-C1iGRG75202310

BLACK,TRIM0#,2#,4#

63305FCLIP(FOR ROOF HEADLINING TRIM)

main90467-10161iGRG75202310

63310HEADLINING ASSY, ROOF

main63310-40130-A0iGRG75202310

FROMAGE,TRIM0#

main63310-40130-C1iGRG75202310

BLACK,TRIM2#

main63310-40130-E0iGRG75202310

MD.BROWN,TRIM40

main63310-40130-E1iGRG75202310

SUNFLARE BROWN,TRIM41

63310DCLIP, ROOF HEADLINING

main90467-06165-C3iGRG75202310

BLACK

sub90467-06165

63311FCLIP, ROOF HEADLINING, NO.1

main90467-09126iGRG75202310

63312FCLIP, ROOF HEADLINING, NO.2

main90467-10181iGRG75202310

63341PAD, ROOF SILENCER, NO.1

main63354-40010iGRG75202310

63342PAD, ROOF SILENCER, NO.2

main63351-40020iGRG75202310

63343PAD, ROOF SILENCER, NO.3

main63341-40040iGRG75202310

63344PAD, ROOF SILENCER, NO.4

main63351-40030iGRG75202310

63345PAD, ROOF SILENCER, NO.5

main63354-40020iGRG75202310

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-40010iGRG75202310

63395CLIP, ROOF HEADLINING TRIM

main90467-08186-C3iGRG75202310

BLACK

sub90467-08186

63651AGARNISH, SUNSHADE, NO.1 RH

main63651-40010iGRG75202310

63652AGARNISH, SUNSHADE, NO.1 LH

main63652-40020iGRG75202310

75631LGARNISH, ROOF TOP, FRONT

main75631-40030-A0iGRG75202310

FROMAGE,TRIM0#

main75631-40030-C1iGRG75202310

BLACK,TRIM2#,4#

81005ALAMP SET, REAR

main81005-40010-A0iGRG75202310

FROMAGE,TRIM00

main81005-40010-C0iGRG75202310

BLACK,TRIM00,2#,4#

86255FCASE, MICROPHONE

main86255-78020-A1iGRG75202310

FROMAGE,TRIM0#

main86255-78020-C0iGRG75202310

BLACK,TRIM2#,41

main86255-78020-E1iGRG75202310

MD.BROWN,TRIM40

9016840108

main90168-40108

20 parts on this diagram · 1 diagram in section
