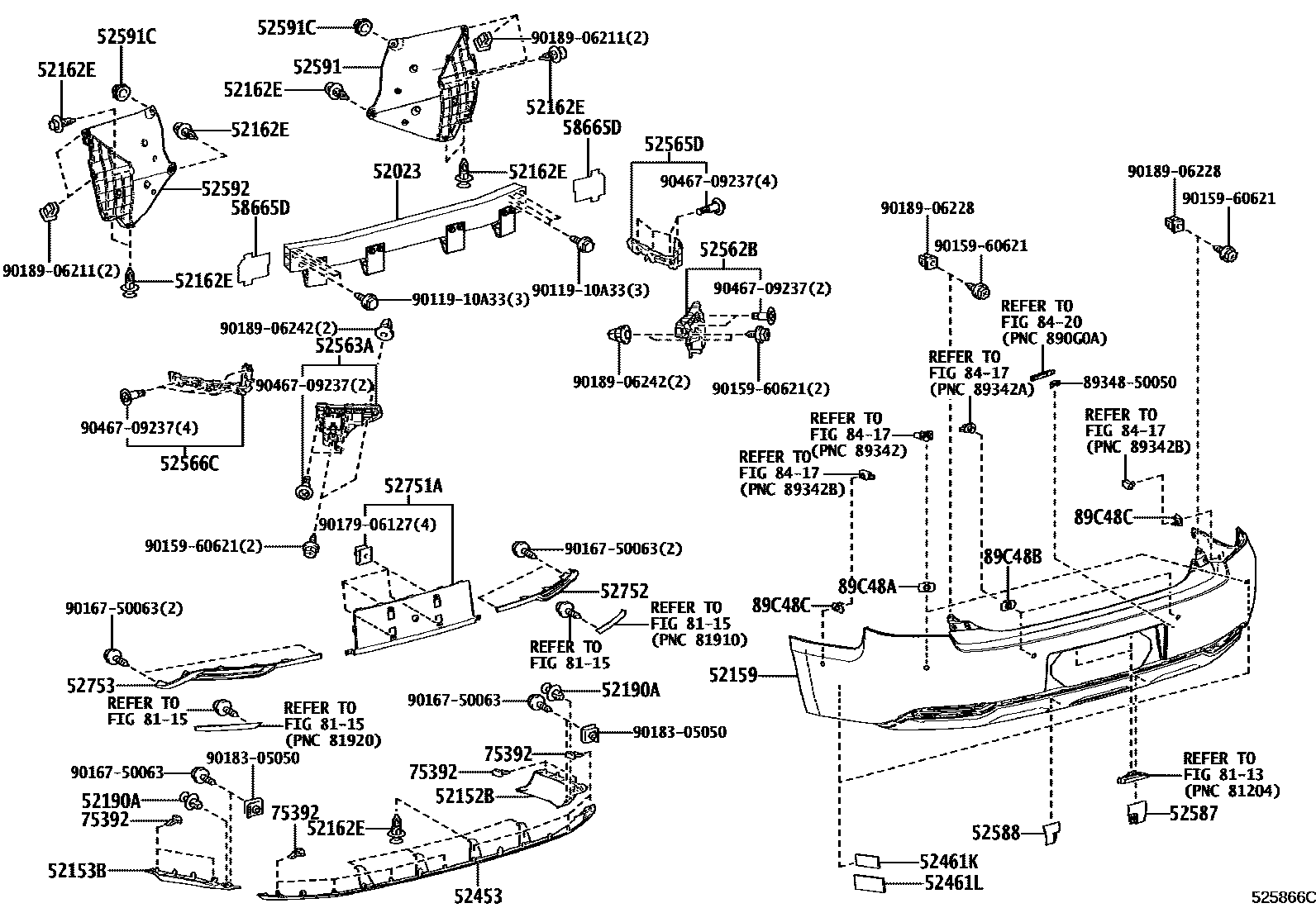

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52159COVER, REAR BUMPER
PAINT REQ.
52162EPIECE, REAR BUMPER
52190ACLIP
52453GUARD, REAR BUMPER, CENTER
52461KPAD, REAR BUMPER, NO.1
52461LPAD, REAR BUMPER, NO.2
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52565DRETAINER, REAR BUMPER, LOWER RH
52566CRETAINER, REAR BUMPER, LOWER LH
52587RETAINER, REAR BUMPER END, RH
52588RETAINER, REAR BUMPER END, LH
52591SEAL, REAR BUMPER SIDE, RH
52591CCLIP, REAR BUMPER SIDE SEAL
BLACK
52592SEAL, REAR BUMPER SIDE, LH
52751AMOULDING, REAR BUMPER, CENTER
52752MOULDING, REAR BUMPER SIDE, RH
NO PAINT REQ.
52753MOULDING, REAR BUMPER SIDE, LH
NO PAINT REQ.
75392RETAINER, OUTSIDE MOULDING
8113REAR LICENSE PLATE LAMP
8115REFLEX REFLECTOR
8417CLEARANCE & BACK SONAR
8420WIRELESS DOOR LOCK
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE
8934850050RETAINER, ULTRASONIC SENSOR, NO.1
main89348-50050
9011910A33
main90119-10A33
9015960621
main90159-60621
9016750063
main90167-50063
9017906127
main90179-06127
9018305050
main90183-05050
9018906211
main90189-06211
9018906228
main90189-06228
9018906242
main90189-06242
9046709237
main90467-09237
40 parts on this diagram · 1 diagram in section
